Getting started with the STEVAL-C34KAT1 vibrometer and temperature sensor
Introduction
The
STEVAL-C34KAT1
is a multisensing expansion kit that includes the STEVAL-C34AT01 expansion board and a flexible
cable.
The small form factor and the accurate design allow a precise measurement of vibrations up to the sensor bandwidth (6 kHz) as
well as of the temperature.
The
IIS3DWB
vibration sensor is soldered at the center of the small 25 x 25 mm board. The
placed on the PCB side and is thermally coupled to the PCB bottom exposed pad through vias.
The expansion board can be mounted on the equipment for the vibration analysis using the four holes or the double-sided
adhesive tape. This board is compatible with the STWIN.box kit (STEVAL-STWINBX1).
UM3021 - Rev 1 - December 2022
For further information contact your local STMicroelectronics sales office.

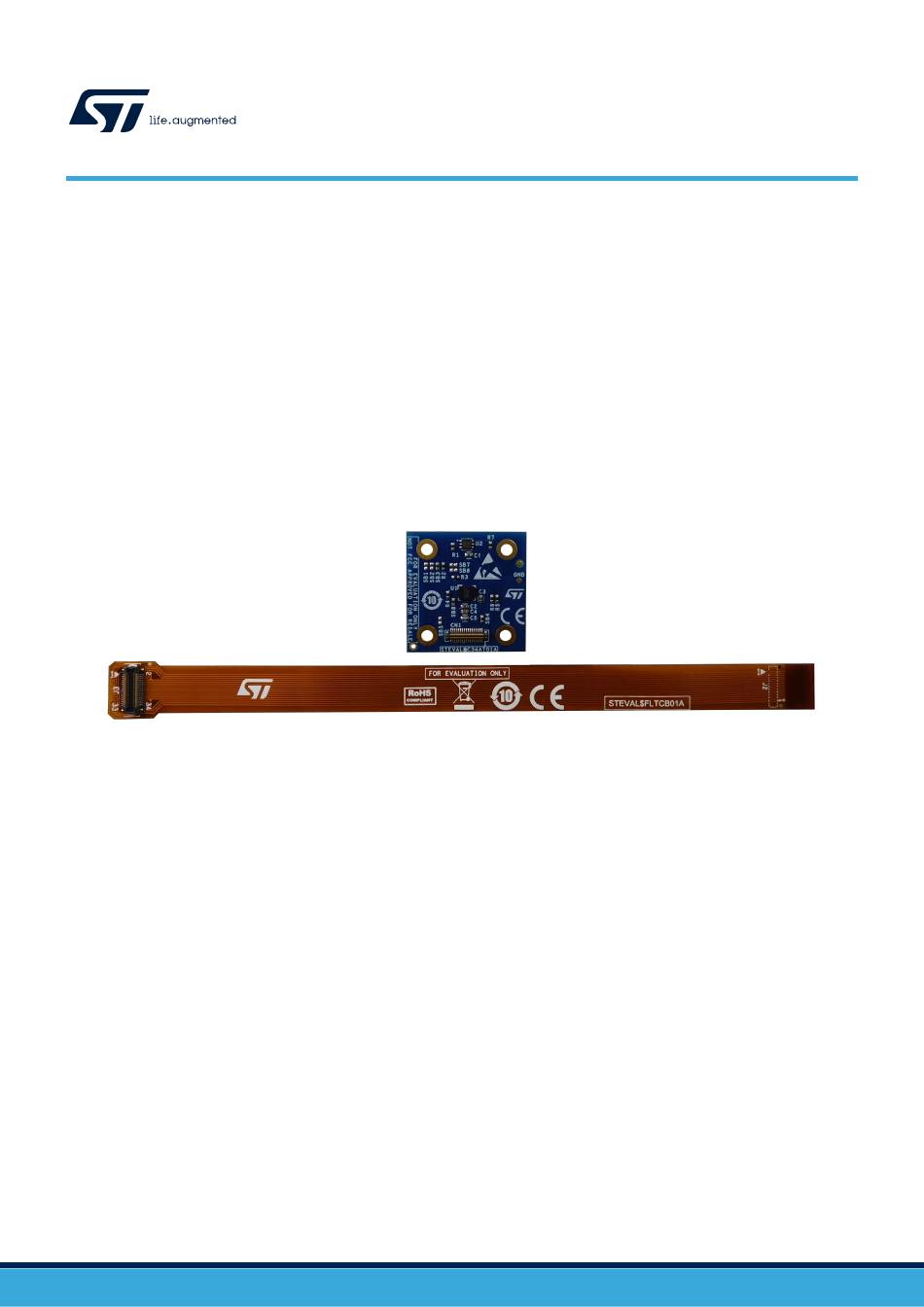

Figure 1.
STEVAL-C34KAT1 expansion kit
UM3021
User manual
expansion kit
STTS22H
temperature sensor is
www.st.com
Advertisement
Table of Contents
Related Manuals for STMicroelectronics STEVAL-C34KAT1
Summary of Contents for STMicroelectronics STEVAL-C34KAT1
- Page 1 UM3021 User manual Getting started with the STEVAL-C34KAT1 vibrometer and temperature sensor expansion kit Introduction STEVAL-C34KAT1 is a multisensing expansion kit that includes the STEVAL-C34AT01 expansion board and a flexible cable. The small form factor and the accurate design allow a precise measurement of vibrations up to the sensor bandwidth (6 kHz) as well as of the temperature.
-
Page 2: Features
UM3021 Features Features • Kit content: – a STEVAL-C34AT01 multisensing expansion board (25x25mm) with a 34-pin board-to-FPC connector – a 34-pin flexible cable • Ideal plug-in for the STEVAL-STWINBX1 evaluation board • Ultra-wide bandwidth (up to 6 kHz), low-noise, 3-axis digital vibration sensor (IIS3DWB): –... -
Page 3: Precautions For Use
UM3021 Precautions for use Precautions for use Important: This kit is not immune to indirect electrostatic discharges. During the ESD test, the kit has obtained level C. This means that the expansion board has not been damaged during the test, but the intervention of the operator was necessary to reset it. -
Page 4: How To Use The Kit
UM3021 How to use the kit How to use the kit STEVAL-C34KAT1 expansion board can be used with the STEVAL-STWINBX1 kit (STWIN.box). The device can be attached to the STWIN.box using the provided flexible cable, through the 34-pin connectors available on both platforms. -
Page 5: Adhesive Tape
UM3021 Adhesive tape Adhesive tape The kit provides a few samples of 3M™ 9088 high performance, double coated tape. These samples can be used to mount the board on the equipment for vibration analysis. Alternatively, you can mount the board through the holes located at each corner of the PCB. The small form factor of the PCB ensures no resonances and a flat frequency response for the complete bandwidth of the sensor (up to 6 kHz). -
Page 6: Schematic Diagrams
Schematic diagrams Figure 5. STEVAL-C34KAT1 circuit schematic: STEVAL-C34AT01 SPI_CS 100nF 100nF 10uF SPI_CLK SPI_MOSI IIS3DWB INT1_DWB SB80R INT_DWB INT2_DWB SB7NC INT_STT SPI_MISO 34-pin expansion SDO/SA0 SDO_Aux OCS_Aux INT2_DWB connector INT2 INT1_DWB INT_DWB INT1 Orientation: the odd pins should be on the PCB side... - Page 7 Figure 6. STEVAL-C34KAT1 circuit schematic: STEVAL-FLTCB01 CON34-Header CON34-Socket CON34-Socket Assembly on bottom...
-
Page 8: Bill Of Materials
UM3021 Bill of materials Bill of materials Table 1. STEVAL-C34KAT1 bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code Table 2. Expansi Vibrometer and STEVAL- Not available for on board bill of temperature C34AT01 separate sale materials expansion board Table 3. -
Page 9: Table 3. Flexible Cable Bill Of Materials
UM3021 Bill of materials Table 3. Flexible cable bill of materials Item Q.ty Ref. Part/value Description Manufacturer Order code CON34-Header, Connector Panasonic 34 positions, AXF5G3412A header Electric Works SMD, gold CON34-Socket, Connector Panasonic J1, J3 34 positions, AXF6G3412A sockets Electric Works SMD, gold UM3021 - Rev 1 page 9/16... -
Page 10: Kit Versions
STEVAL$C34KAT1A schematic diagrams STEVAL$C34KAT1A bill of materials 1. This code identifies the STEVAL-C34KAT1 evaluation kit first version. The kit consists of the STEVAL$C34AT01A expansion board and the STEVAL$FLTCB01A flexible cable. The STEVAL$C34AT01A code is printed on the expansion board PCB. -
Page 11: Regulatory Compliance Information
UM3021 Regulatory compliance information Regulatory compliance information Formal Notice Required by the U.S. Federal Communications Commission FCC NOTICE This kit is designed to allow: (1) Product developers to evaluate electronic components, circuitry, or software associated with the kit to determine whether to incorporate such items in a finished product and (2) Software developers to write software applications for use with the end product. -
Page 12: Revision History
UM3021 Revision history Table 5. Document revision history Date Revision Changes 15-Dec-2022 Initial release. UM3021 - Rev 1 page 12/16... -
Page 13: Table Of Contents
UM3021 Contents Contents Features................2 Precautions for use . -
Page 14: List Of Tables
STEVAL-C34KAT1 bill of materials ........ -
Page 15: List Of Figures
STEVAL-C34KAT1 circuit schematic: STEVAL-C34AT01 ........ - Page 16 IMPORTANT NOTICE – READ CAREFULLY STMicroelectronics NV and its subsidiaries (“ST”) reserve the right to make changes, corrections, enhancements, modifications, and improvements to ST products and/or to this document at any time without notice. Purchasers should obtain the latest relevant information on ST products before placing orders. ST products are sold pursuant to ST’s terms and conditions of sale in place at the time of order acknowledgment.
