Basic timers (TIM6)

23 Basic timers (TIM6)
23.1

TIM6 introduction

The basic timer TIM6 consists of a 16-bit auto-reload counter driven by a programmable
prescaler.
They may be used as generic timers for time-base generation but they are also specifically
used to drive the digital-to-analog converter (DAC). In fact, the timers are internally
connected to the DAC and are able to drive it through their trigger outputs.
The timers are completely independent, and do not share any resources.
23.2

TIM6 main features

Basic timer (TIM6) features include:
•
16-bit auto-reload upcounter
•
16-bit programmable prescaler used to divide (also "on the fly") the counter clock
frequency by any factor between 1 and 65535
•
Synchronization circuit to trigger the DAC
•
Interrupt/DMA generation on the update event: counter overflow
693/1080

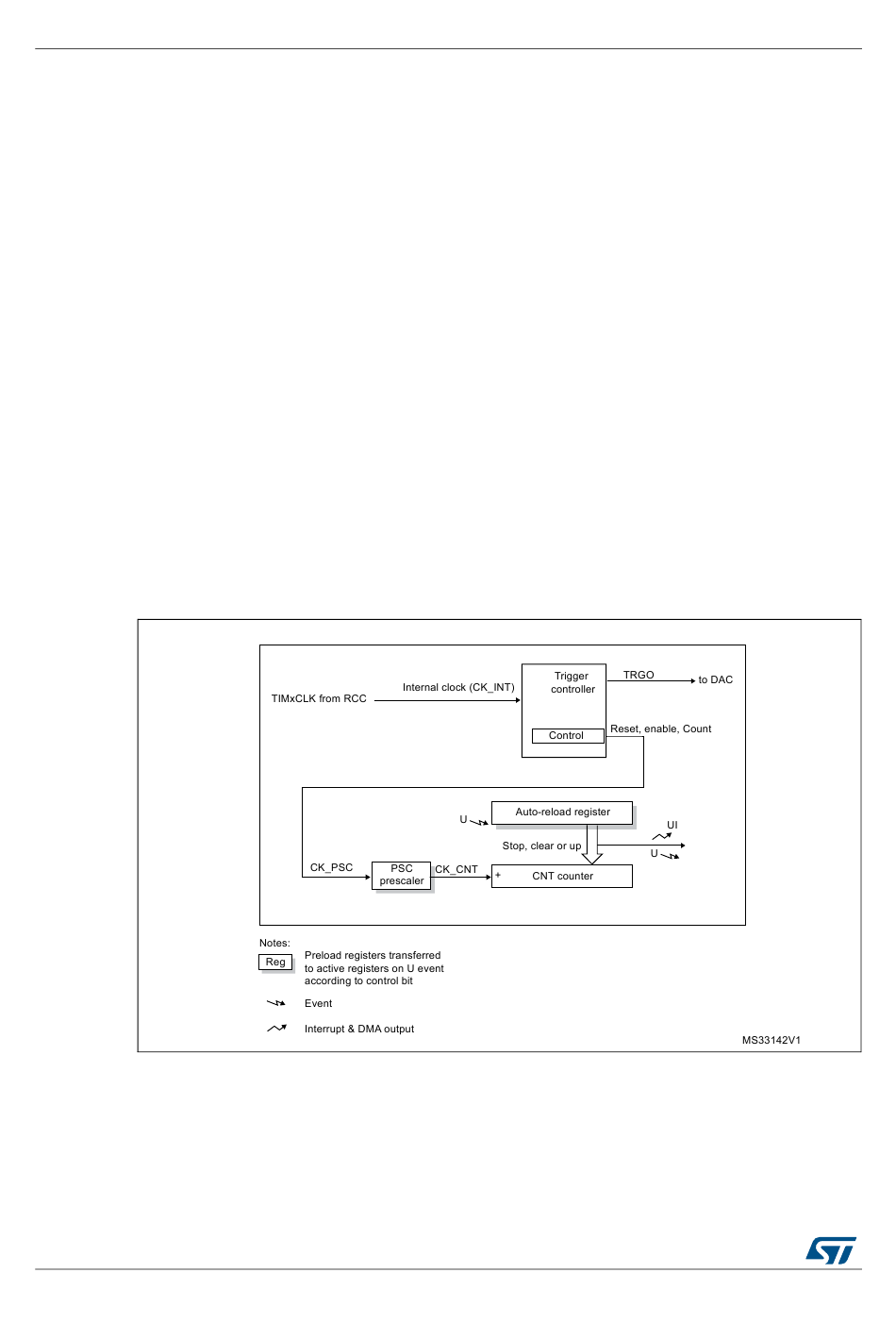

Figure 269. Basic timer block diagram
