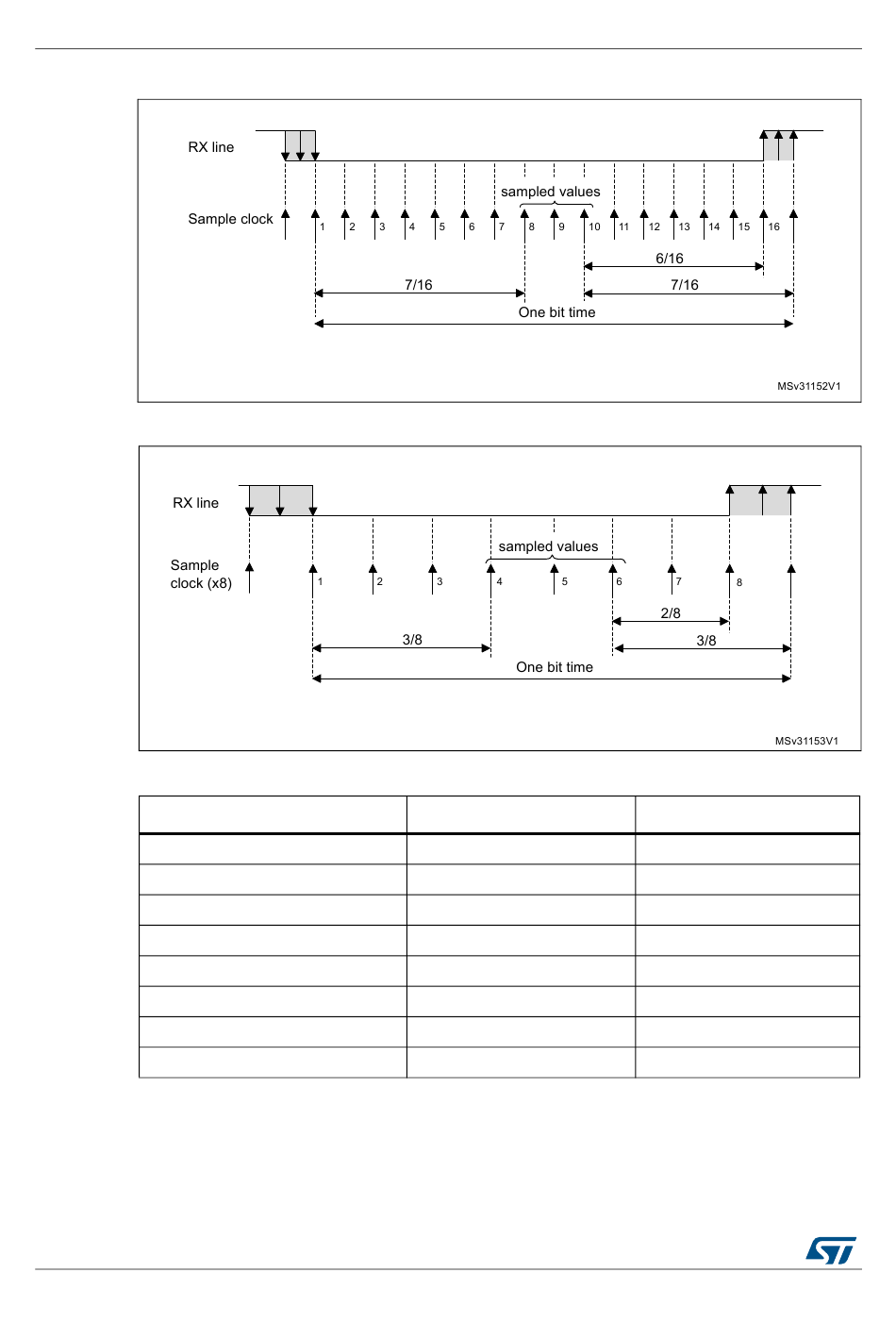

Figure 320. Data sampling when oversampling by 16

Figure 321. Data sampling when oversampling by 8

Table 153. Noise detection from sampled data

Sampled value
000
001
010
011
100
101
110
111
DocID025202 Rev 7
NE status
0
1
1
1
1
1
1
0
RM0365
Received bit value
0
0
0
1
0
1
1
1
