RM0365
1. The internal break event source can be:
- A clock failure event generated by CSS. For further information on the CSS, refer to
system (CSS)
- A PVD output
- SRAM parity error signal
®
- Cortex-M4 F LOCKUP (Hardfault) output
- COMP output

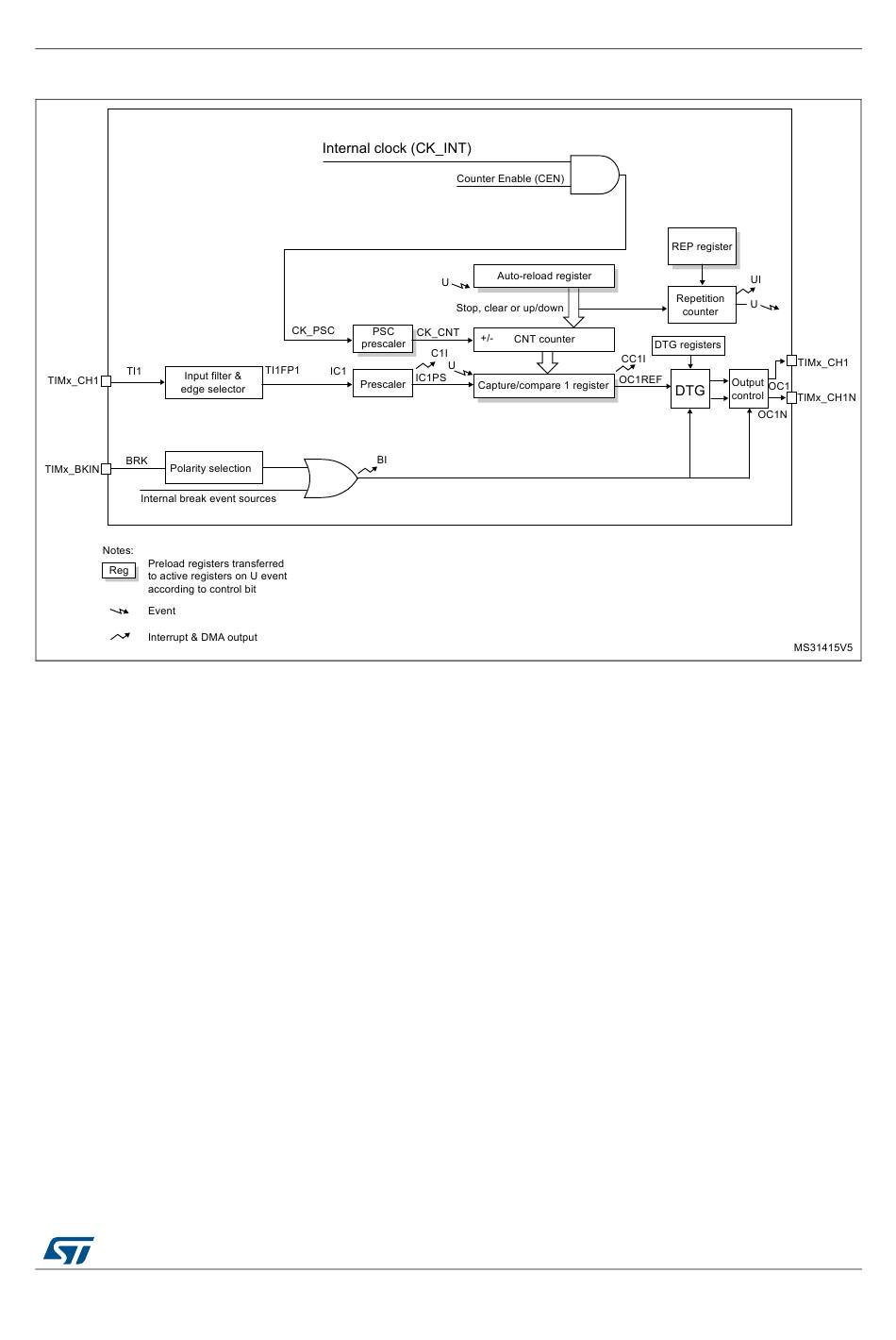

Figure 239. TIM16/TIM17 block diagram

DocID025202 Rev 7
General-purpose timers (TIM15/TIM16/TIM17)
Section 9.2.7: Clock security
622/1080
692
