Alternate function configuration

When the I/O port is programmed as alternate function:
The output buffer can be configured in open-drain or push-pull mode
The output buffer is driven by the signals coming from the peripheral (transmitter
enable and data)
The Schmitt trigger input is activated
The weak pull-up and pull-down resistors are activated or not depending on the value
in the GPIOx_PUPDR register
The data present on the I/O pin are sampled into the input data register every AHB
clock cycle
A read access to the input data register gets the I/O state
Figure 21

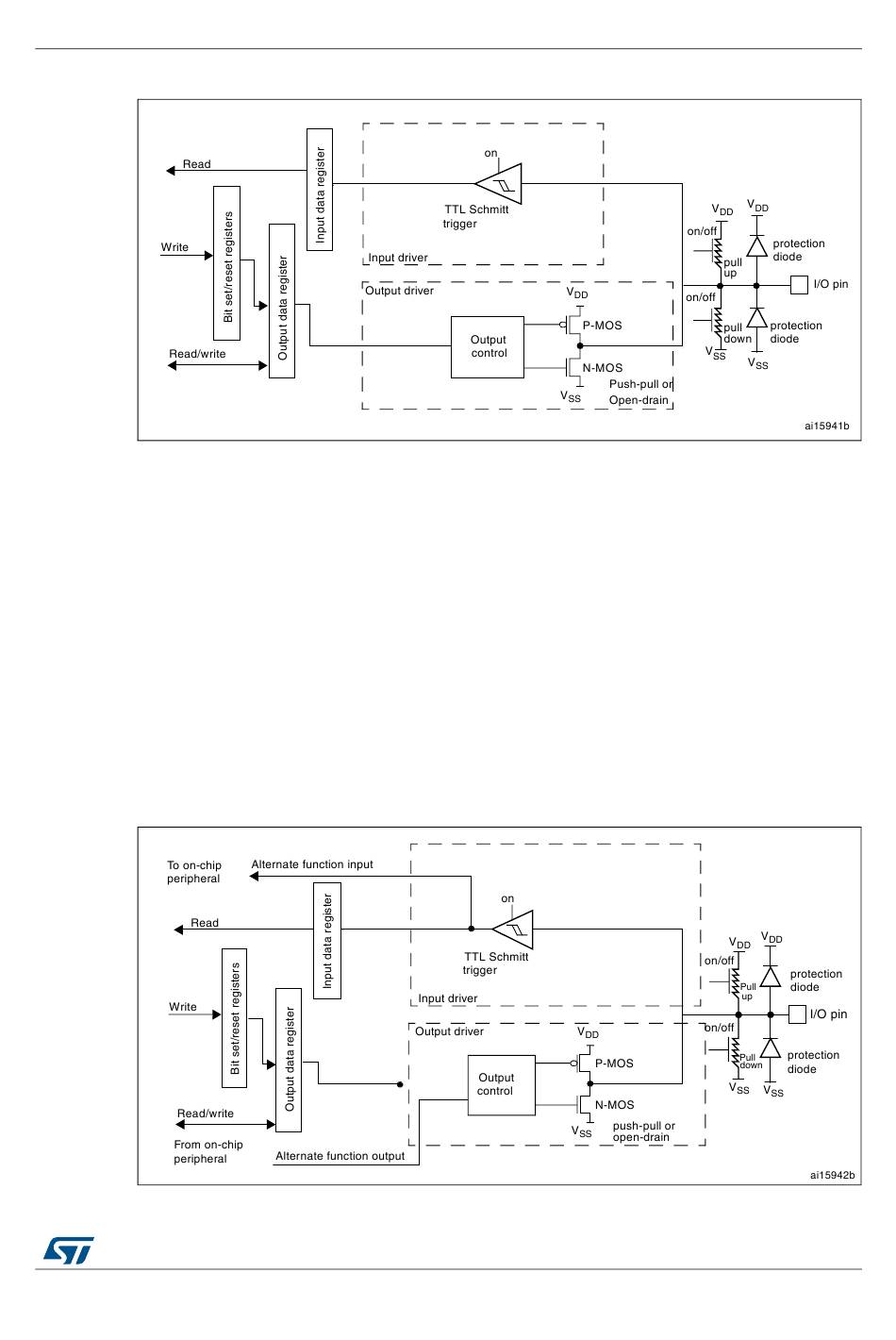

Figure 20. Output configuration

shows the Alternate function configuration of the I/O port bit.

Figure 21. Alternate function configuration
