Analog-to-digital converters (ADC)
15.3.25 Timing diagrams example (single/continuous modes,

hardware/software triggers)

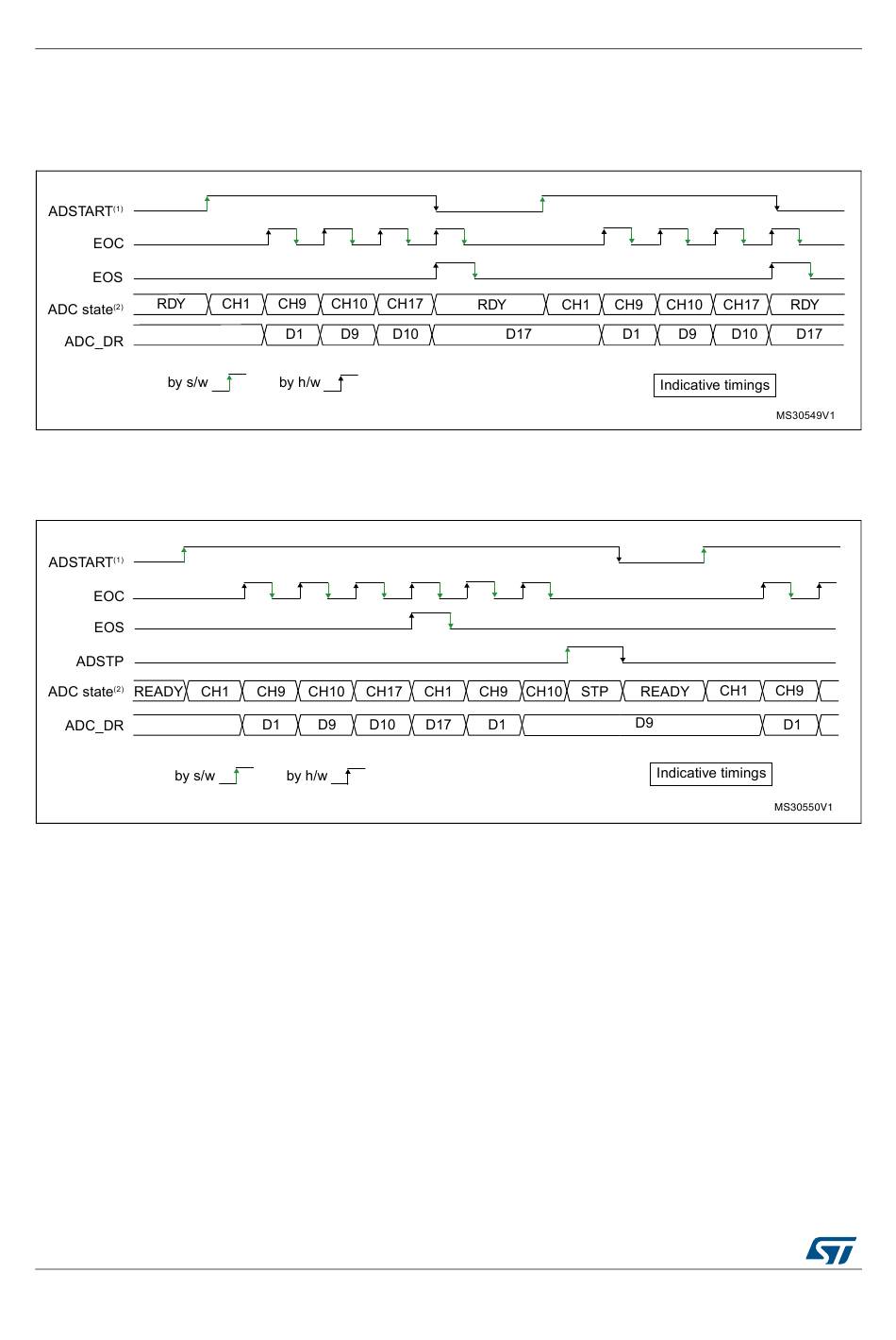

Figure 76. Single conversions of a sequence, software trigger

1. EXTEN=0x0, CONT=0
2. Channels selected = 1,9, 10, 17; AUTDLY=0.

Figure 77. Continuous conversion of a sequence, software trigger

1. EXTEN=0x0, CONT=1
2. Channels selected = 1,9, 10, 17; AUTDLY=0.
