RM0365

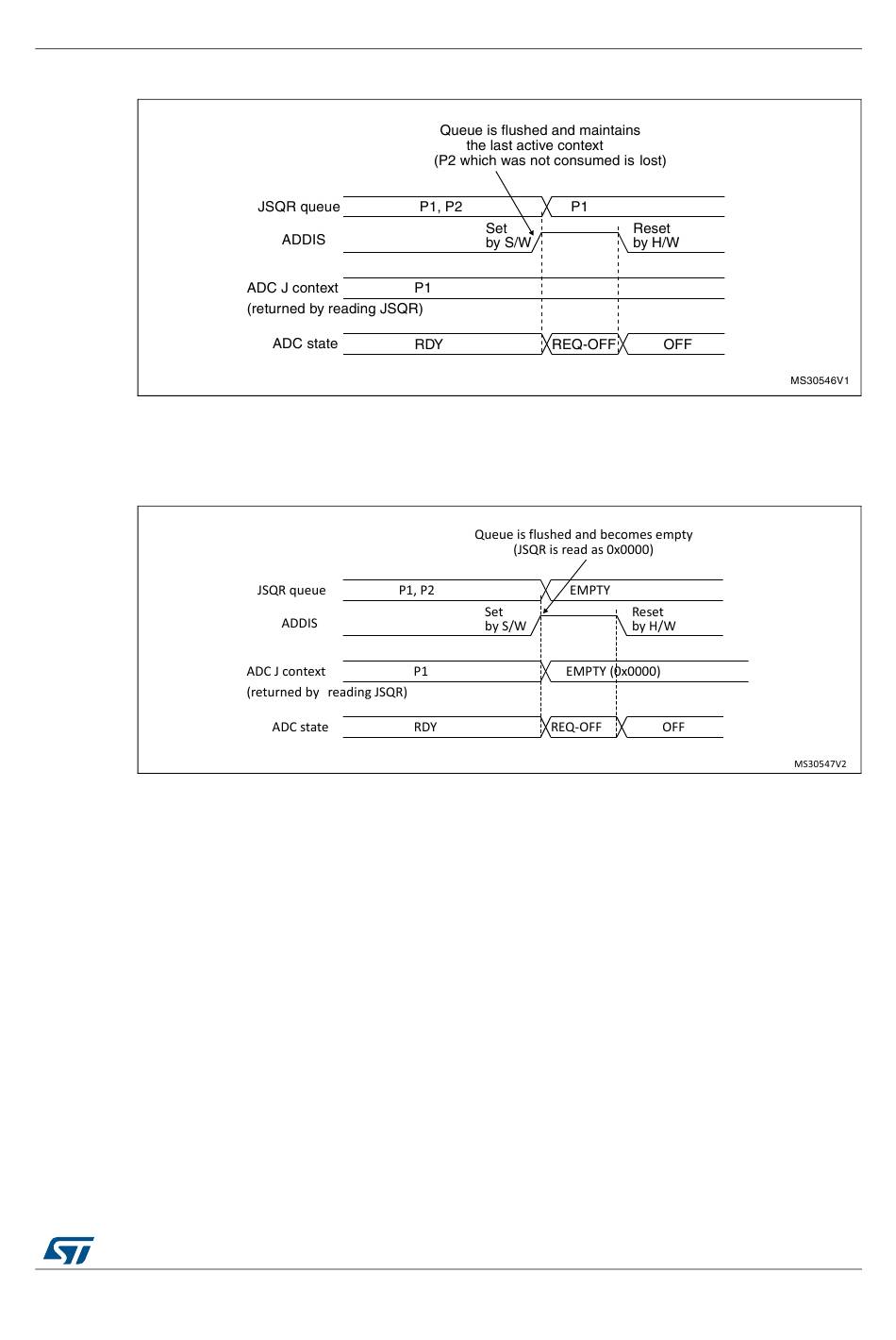

Figure 73. Flushing JSQR queue of context by setting ADDIS=1 (JQM=0)

1. Parameters:
P1: sequence of 1 conversion, hardware trigger 1
P2: sequence of 1 conversion, hardware trigger 1
P3: sequence of 1 conversion, hardware trigger 1

Figure 74. Flushing JSQR queue of context by setting ADDIS=1 (JQM=1)

1. Parameters:
P1: sequence of 1 conversion, hardware trigger 1
P2: sequence of 1 conversion, hardware trigger 1
P3: sequence of 1 conversion, hardware trigger 1
Changing context from hardware to software (or software to hardware)
injected trigger
When changing the context from hardware trigger to software injected trigger, it is
necessary to stop the injected conversions by setting JADSTP=1 after the last hardware
triggered conversions. This is necessary to re-enable the software trigger (a rising edge on
JADSTART is necessary to start a software injected conversion). Refer to
When changing the context from software trigger to hardware injected trigger, after the last
software trigger, it is necessary to set JADSTART=1 to enable the hardware triggers. Refer
to Figure 75.
DocID025202 Rev 7
Analog-to-digital converters (ADC)
Figure 75.
318/1080
