RM0365 General-purpose timers (TIM15/TIM16/TIM17)

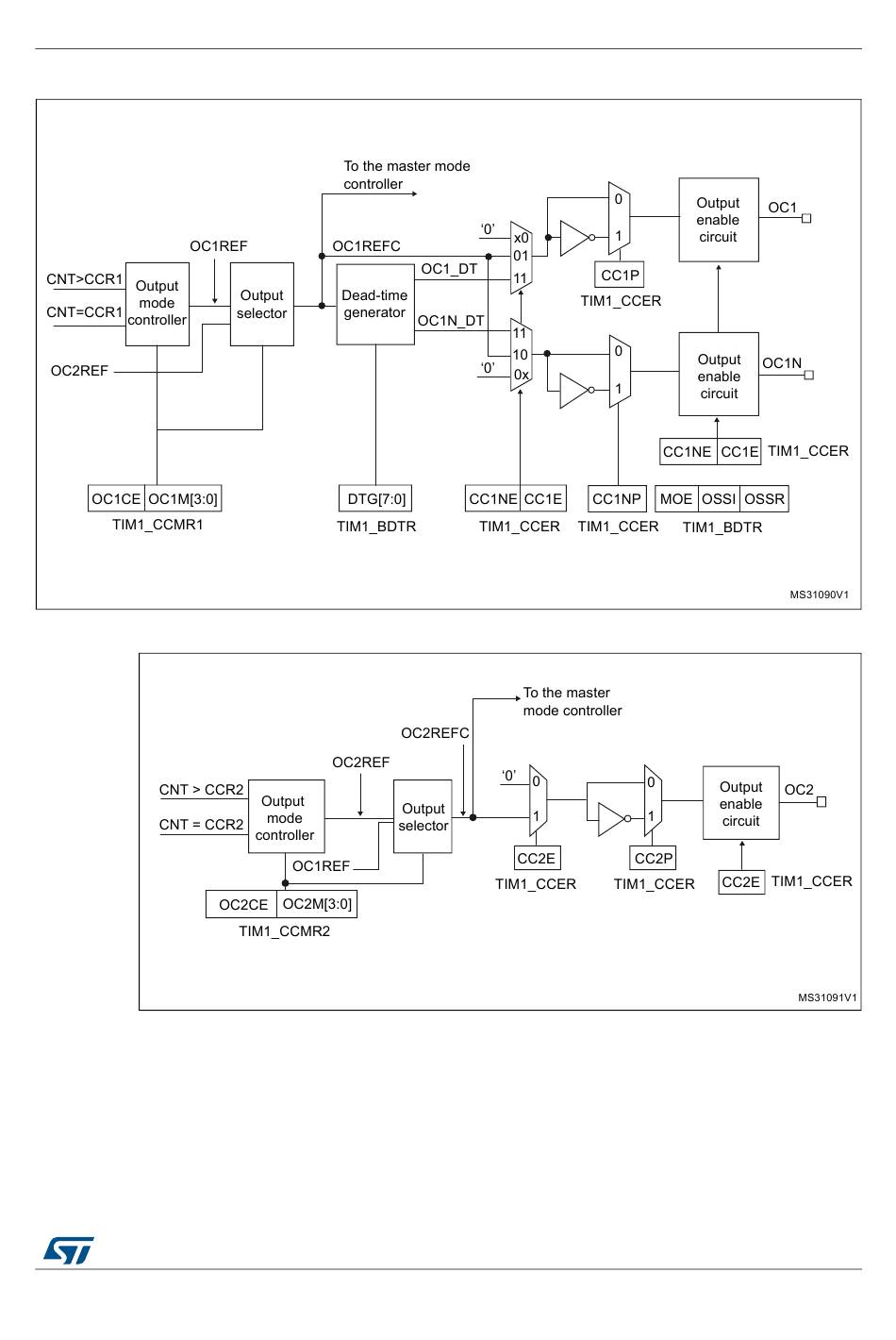

Figure 254. Output stage of capture/compare channel (channel 1)

Figure 255. Output stage of capture/compare channel (channel 2 for TIM15)

The capture/compare block is made of one preload register and one shadow register. Write
and read always access the preload register.
In capture mode, captures are actually done in the shadow register, which is copied into the
preload register.
In compare mode, the content of the preload register is copied into the shadow register
which is compared to the counter.
DocID025202 Rev 7 634/1080
