Table 86. Configuring The Trigger Polarity For Injected External Triggers; Figure 61. Triggers Are Shared Between Adc Master & Adc Slave - STMicroelectronics RM0365 Reference Manual

Analog-to-digital converters (ADC)
Note: The polarity of the regular trigger cannot be changed on-the-fly.

Table 86. Configuring the trigger polarity for injected external triggers

JEXTEN[1:0]
00
01
10
11
Note: The polarity of the injected trigger can be anticipated and changed on-the-fly. Refer to
Section 15.3.21: Queue of context for injected
The EXTSEL[3:0] and JEXTSEL[3:0] control bits select which out of 16 possible events can
trigger conversion for the regular and injected groups.
A regular group conversion can be interrupted by an injected trigger.
Note: The regular trigger selection cannot be changed on-the-fly.
The injected trigger selection can be anticipated and changed on-the-fly. Refer to
Section 15.3.21: Queue of context for injected conversions on page 311
Each ADC master shares the same input triggers with its ADC slave as described in
Figure 61.
307/1080
Hardware Trigger with detection on the rising edge
Hardware Trigger with detection on the rising edge
Hardware Trigger with detection on the falling edge
Hardware Trigger with detection on both the rising and falling edges

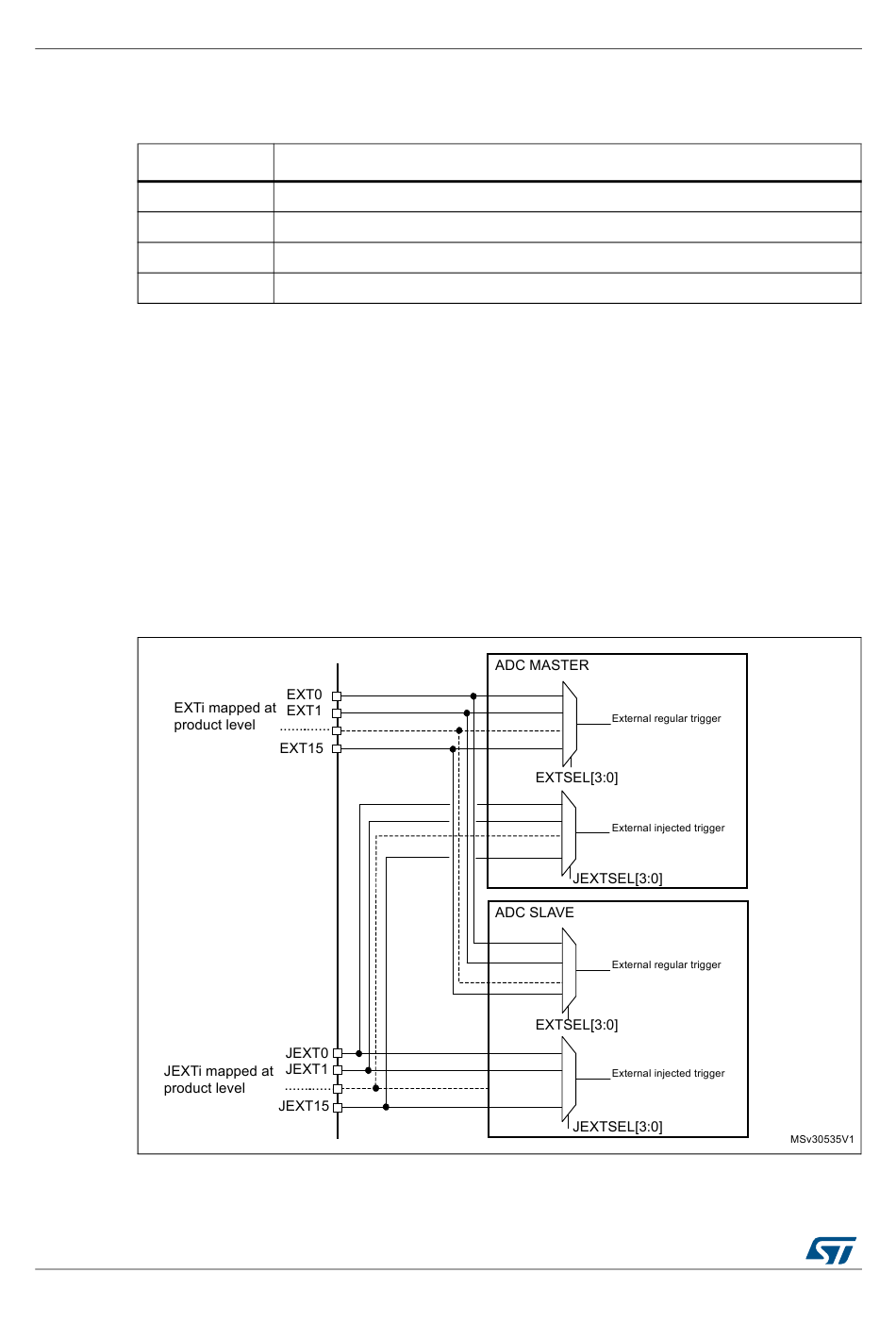

Figure 61. Triggers are shared between ADC master & ADC slave
