RM0365 General-purpose timers (TIM2/TIM3/TIM4)

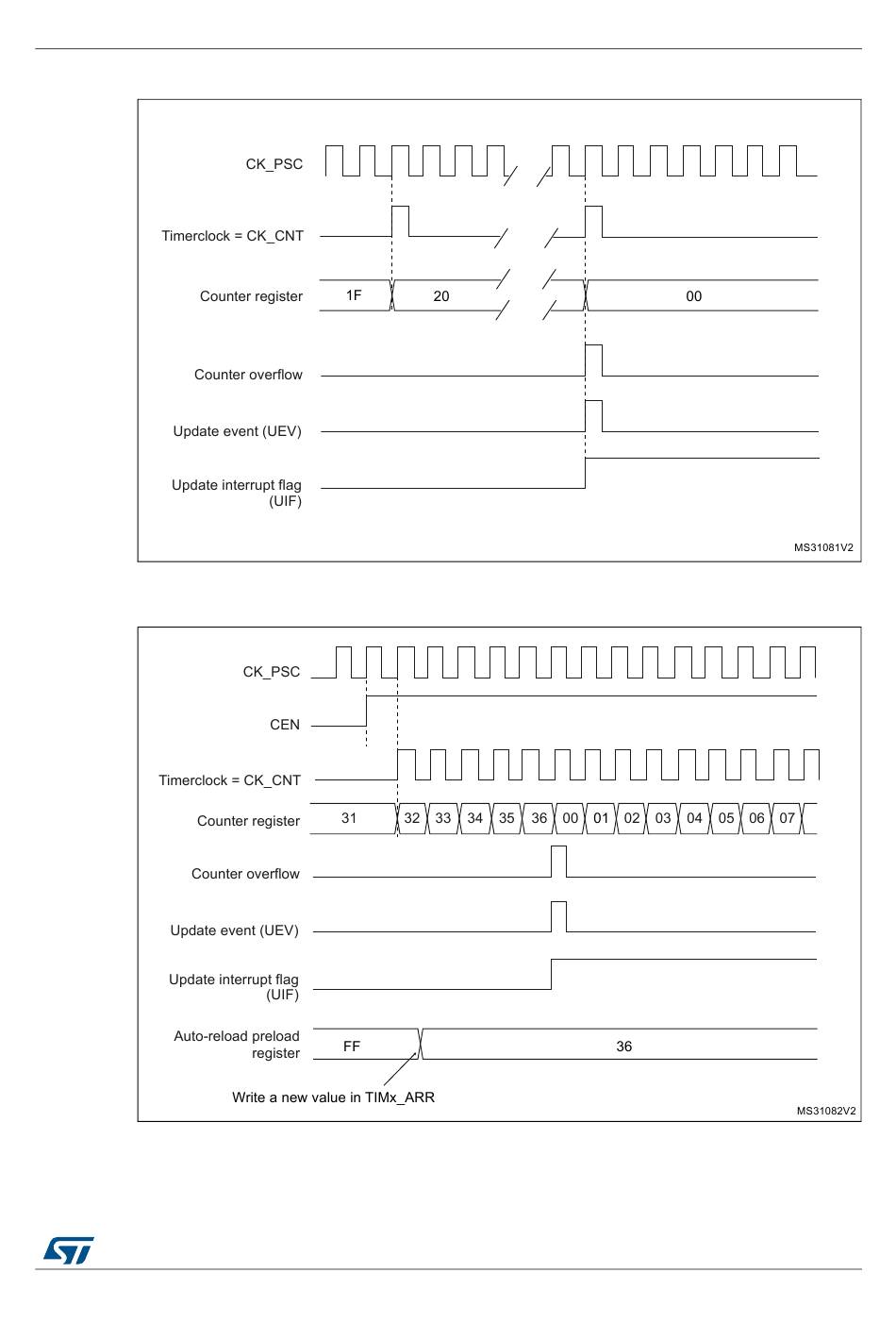

Figure 195. Counter timing diagram, internal clock divided by N

Figure 196. Counter timing diagram, Update event when ARPE=0 (TIMx_ARR not
preloaded)
