Flexible static memory controller (FSMC)
The differences compared with mode1 are the toggling of NOE and the independent read
and write timings.
Bit No.
31-21
20
19
18:16
15
14
13
12
11
10
9
8
7
6
5-4
3-2
247/1080

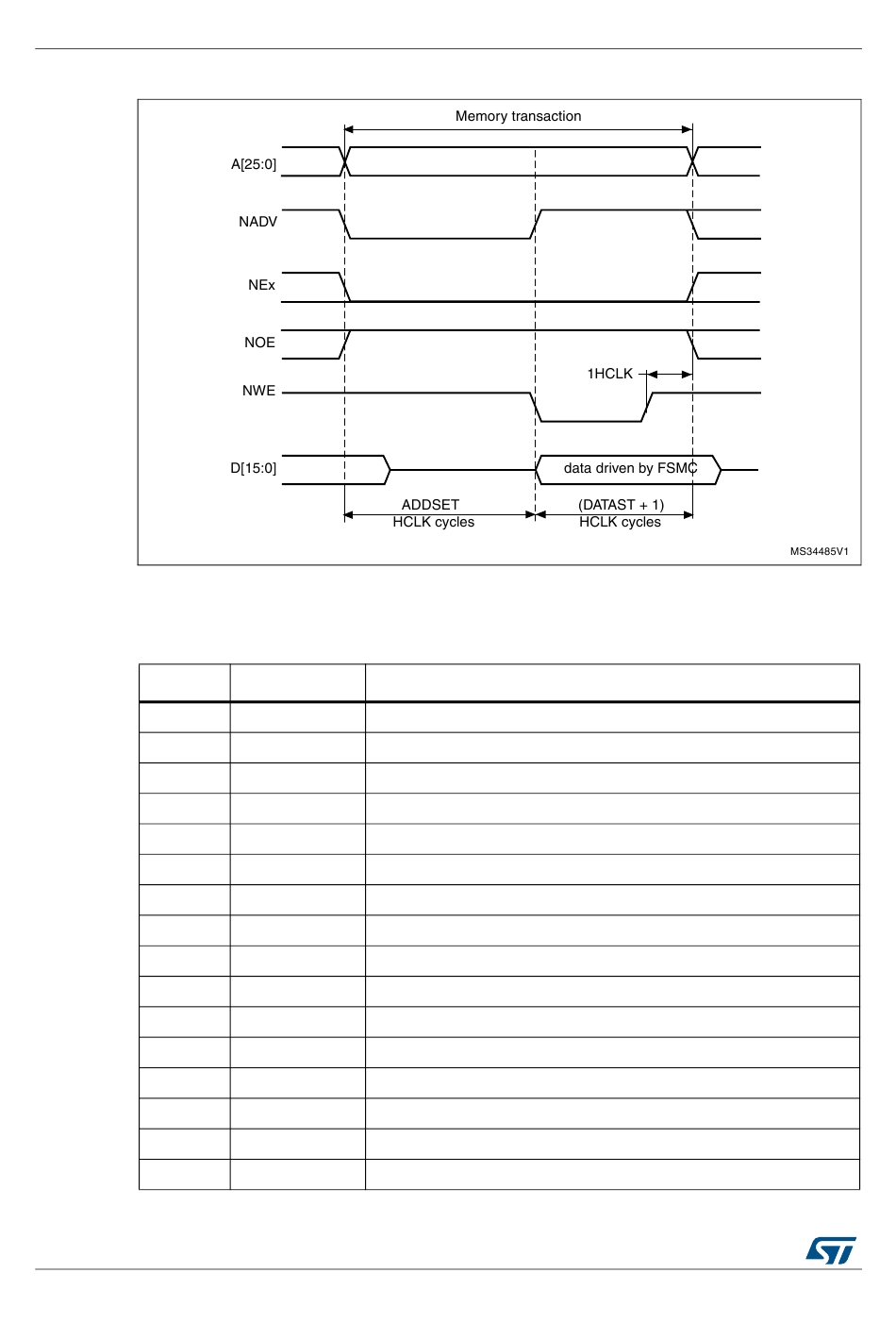

Figure 39. ModeC write access waveforms

Table 61. FMC_BCRx bit fields

Bit name
Reserved 0x000
CCLKEN As needed
CBURSTRW 0x0 (no effect in asynchronous mode)
Reserved 0x0
ASYNCWAIT Set to 1 if the memory supports this feature. Otherwise keep at 0.
EXTMOD 0x1
WAITEN 0x0 (no effect in asynchronous mode)
WREN As needed
WAITCFG Don't care
WRAPMOD 0x0
WAITPOL Meaningful only if bit 15 is 1
BURSTEN 0x0
Reserved 0x1
FACCEN 0x1
MWID As needed
MTYP 0x02 (NOR Flash memory)
