RM0365
Flushing the queue of context
The figures below show the behavior of the context Queue in various situations when the
queue is flushed.

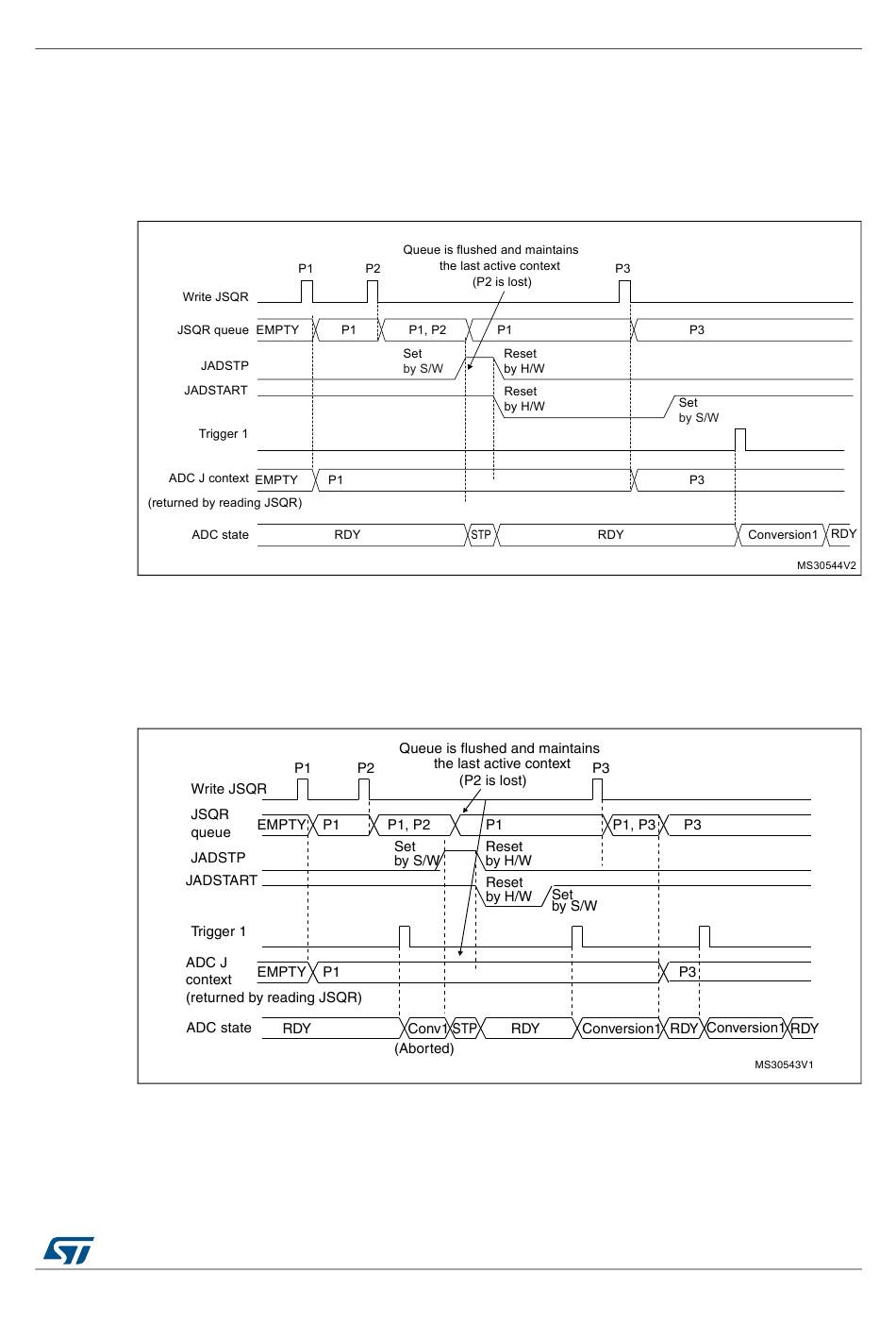

Figure 69. Flushing JSQR queue of context by setting JADSTP=1 (JQM=0).
1. Parameters:
P1: sequence of 1 conversion, hardware trigger 1
P2: sequence of 1 conversion, hardware trigger 1
P3: sequence of 1 conversion, hardware trigger 1

Figure 70. Flushing JSQR queue of context by setting JADSTP=1 (JQM=0).

1. Parameters:
P1: sequence of 1 conversion, hardware trigger 1
P2: sequence of 1 conversion, hardware trigger 1
P3: sequence of 1 conversion, hardware trigger 1
Case when JADSTP occurs during an ongoing conversion.
Case when JADSTP occurs during an ongoing conversion and a new
trigger occurs.
