RM0365
registers. In this way, there is no risk of an IRQ occurring between the read and the modify
access.
Figure 17
bit, respectively.

Figure 18. Basic structure of a five-volt tolerant I/O port bit

1. V is a potential specific to five-volt tolerant I/Os and different from V
DD_FT
and Figure 18 show the basic structures of a standard and a 5 V tolerant I/O port
Table 30 gives the possible port bit configurations.

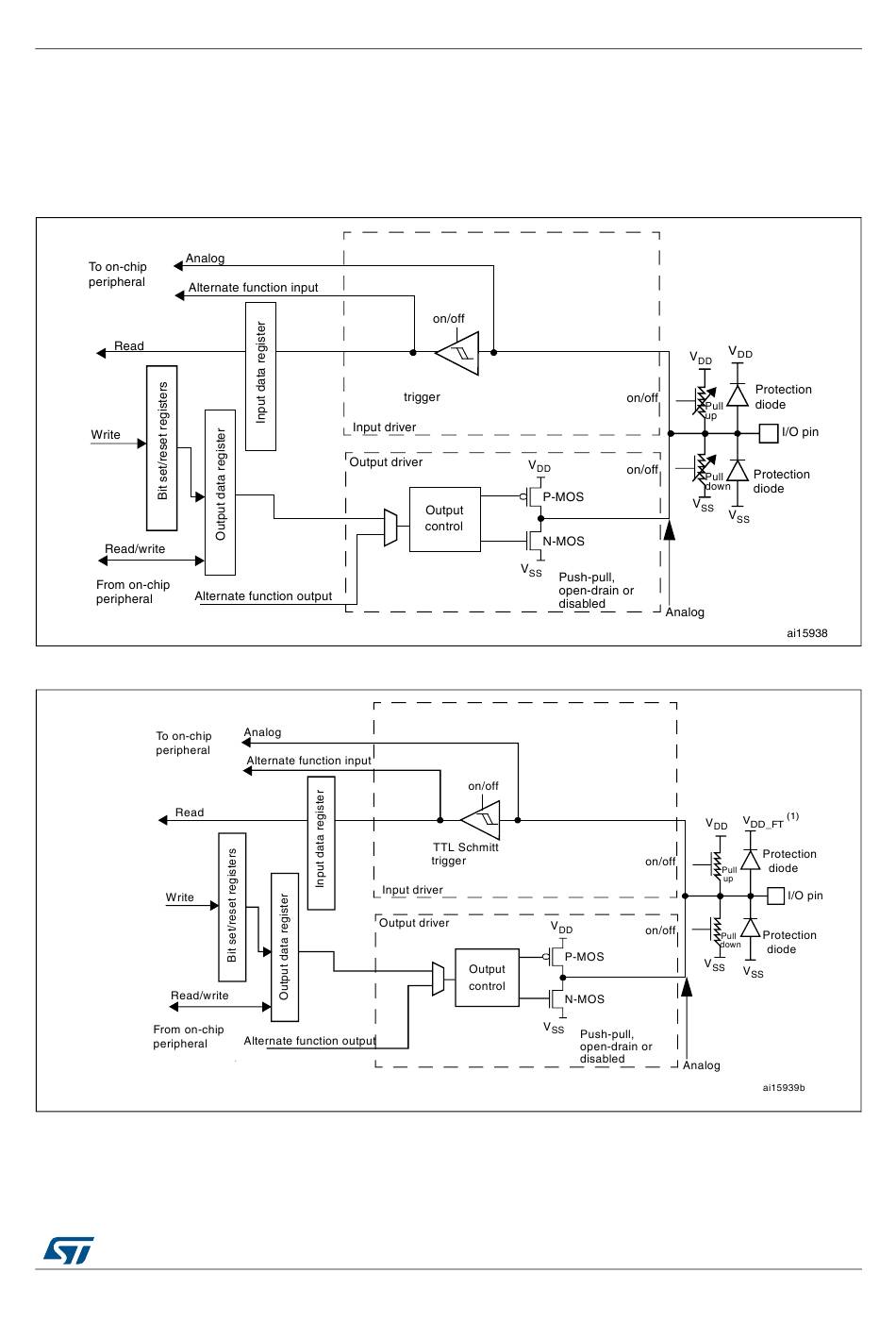

Figure 17. Basic structure of an I/O port bit

DocID025202 Rev 7
General-purpose I/Os (GPIO)
.
DD
156/1080
171
