General-purpose timers (TIM2/TIM3/TIM4) RM0365

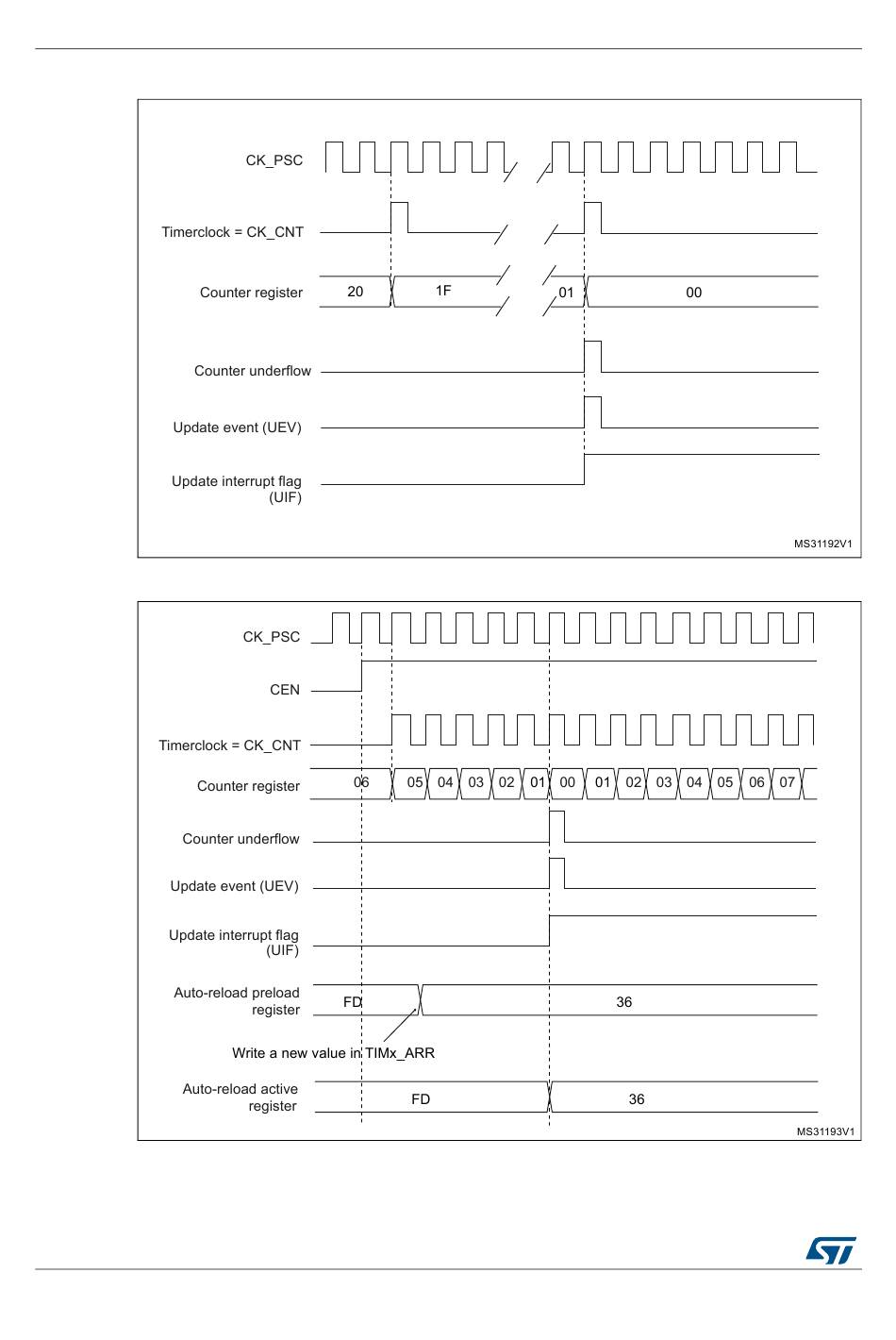

Figure 206. Counter timing diagram, internal clock divided by N

Figure 207. Counter timing diagram, Update event with ARPE=1 (counter underflow)
