General-purpose timers (TIM15/TIM16/TIM17)

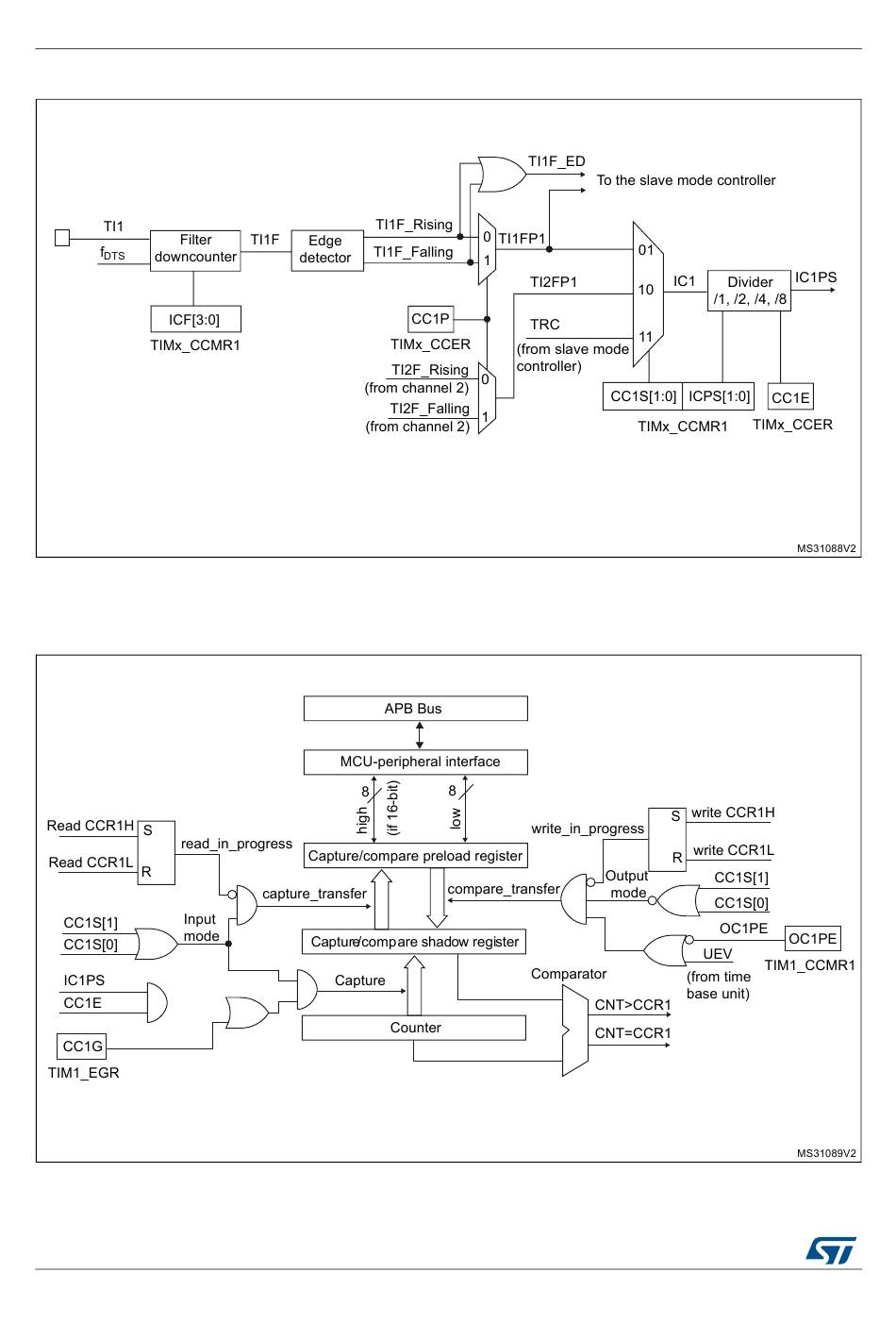

Figure 252. Capture/compare channel (example: channel 1 input stage)
The output stage generates an intermediate waveform which is then used for reference:
OCxRef (active high). The polarity acts at the end of the chain.
633/1080
Figure 253. Capture/compare channel 1 main circuit
DocID025202 Rev 7
RM0365
