Figure 351. Slave Full-Duplex Communication - STMicroelectronics RM0365 Reference Manual

RM0365
Assumptions for slave full-duplex communication example:
•
Data size > 8 bit
If DMA is used:
•
Number of Tx frames transacted by DMA is set to 3
•
Number of Rx frames transacted by DMA is set to 3
See also
and notes.

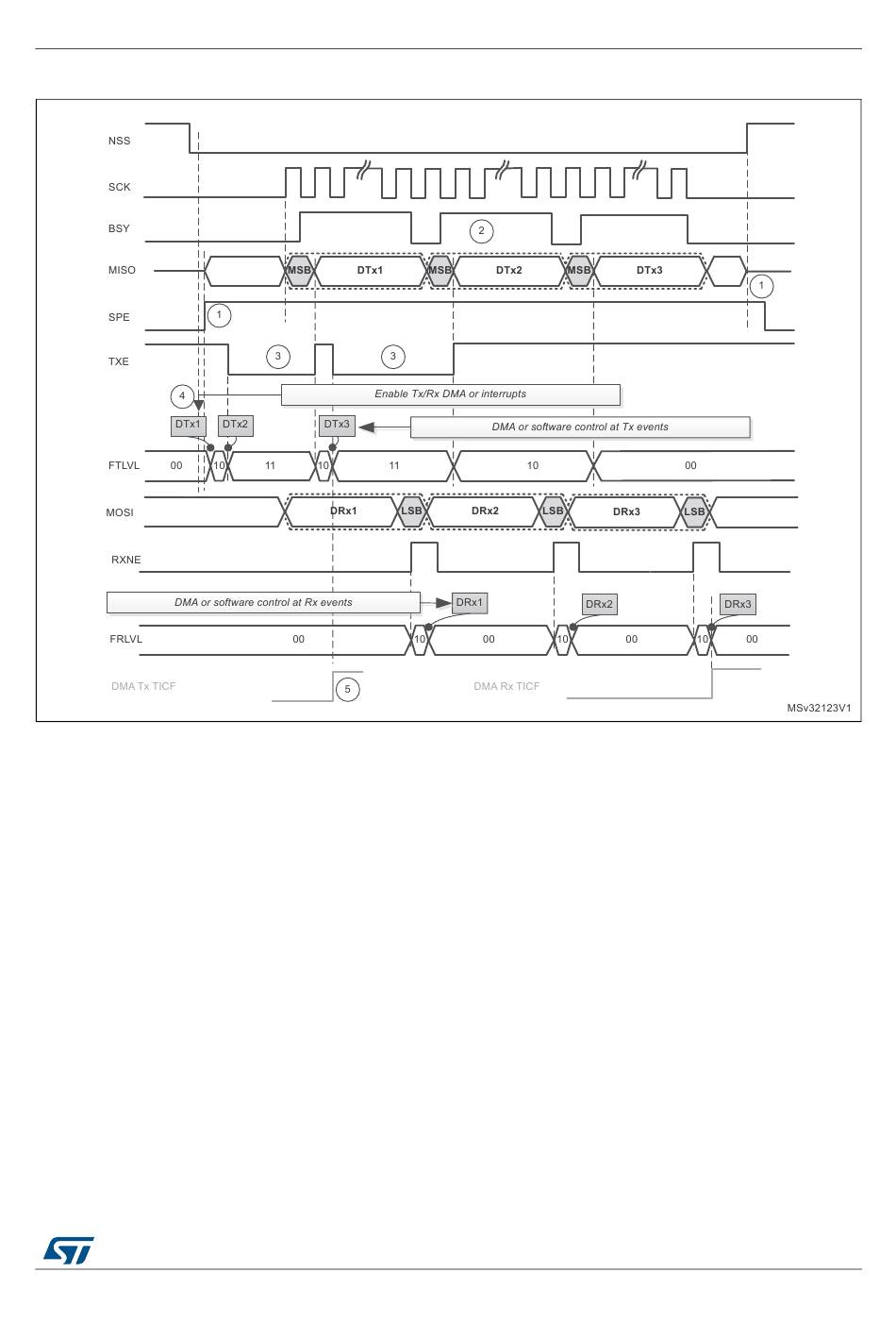

Figure 351. Slave full-duplex communication

: Communication diagrams on page 918
