Figure 33. Modea Read Access Waveforms; Figure 34. Modea Write Access Waveforms - STMicroelectronics RM0365 Reference Manual

Flexible static memory controller (FSMC)
Mode A - SRAM/PSRAM (CRAM) OE toggling
1. NBL[1:0] are driven low during the read access
241/1080

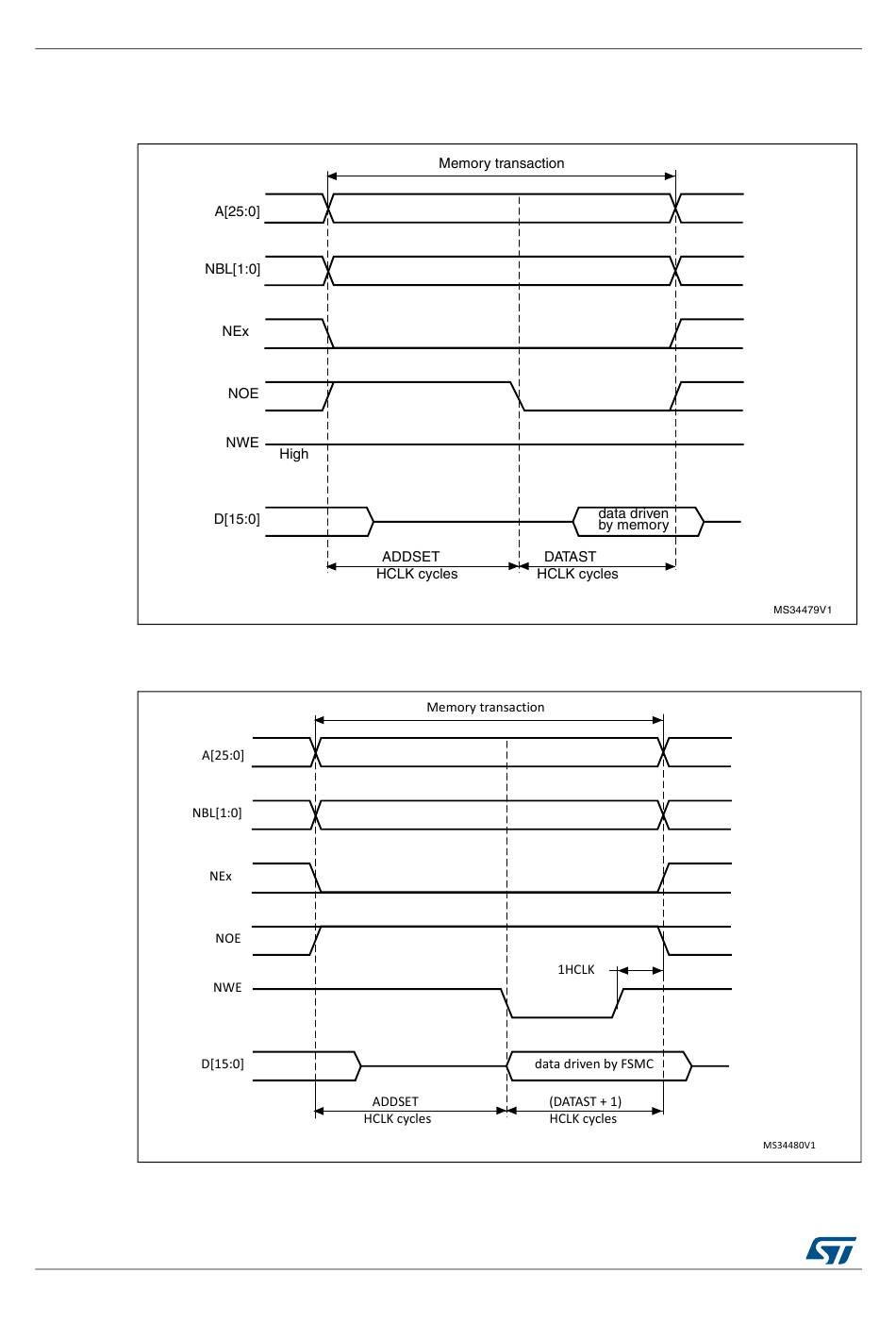

Figure 33. ModeA read access waveforms

Figure 34. ModeA write access waveforms
