Spi Functional Description; General Description; Table 162. Stm32F302Xb/C/D/E Spi Implementation; Figure 340. Spi Block Diagram - STMicroelectronics RM0365 Reference Manual

RM0365
SPI
Features
Hardware CRC calculation
Rx/Tx FIFO
NSS pulse mode
I2S mode
TI mode
1. X = supported.
2. SPI4 is only in STM32F302xD/E.
30.5

SPI functional description

30.5.1

General description

The SPI allows synchronous, serial communication between the MCU and external devices.
Application software can manage the communication by polling the status flag or using
dedicated SPI interrupt. The main elements of SPI and their interactions are shown in the
following block diagram

Table 162. STM32F302xB/C/D/E SPI implementation

(1)

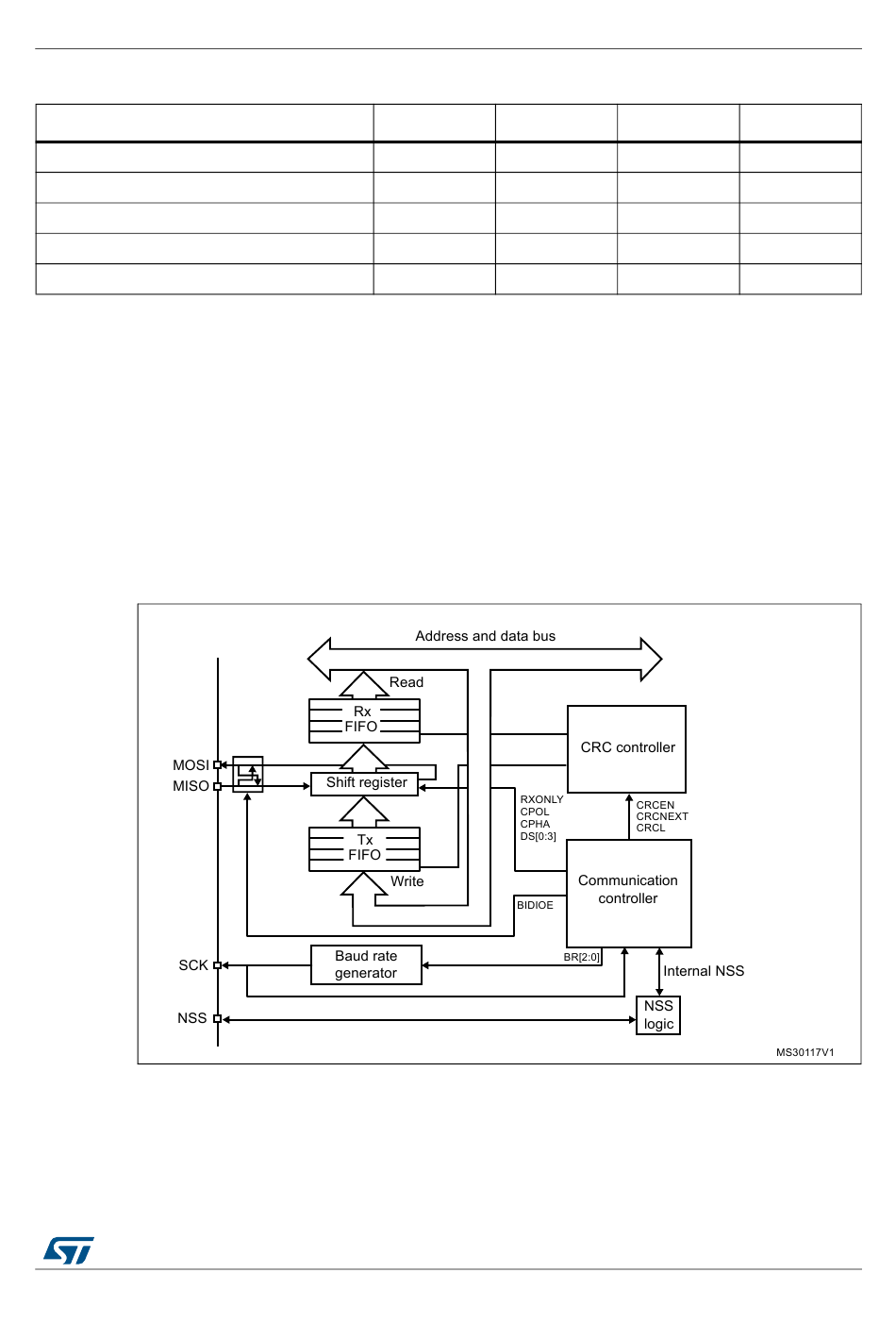

Figure 340.

Figure 340. SPI block diagram

DocID025202 Rev 7
Serial peripheral interface / inter-IC sound (SPI/I2S)
SPI1 SPI2
X X
X X
X X
- X
X X
(2)
SPI3 SPI4
X X
X X
X X
X -
X X
