Miscellaneous
A Instruction Set Reference

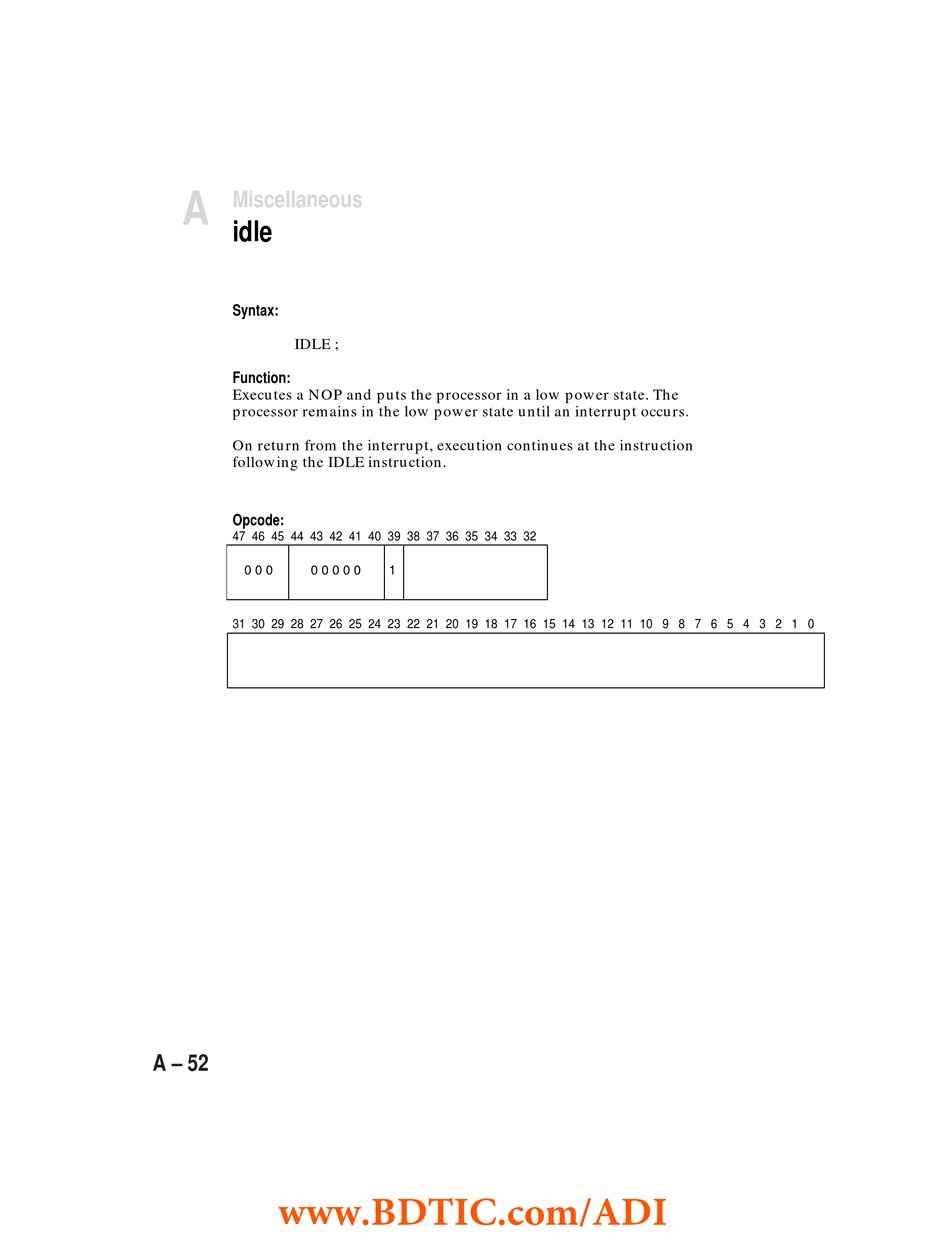

idle

Syntax:
IDLE ;
Function:
Executes a NOP and puts the processor in a low power state. The
processor remains in the low power state until an interrupt occurs.
On return from the interrupt, execution continues at the instruction
following the IDLE instruction.
Opcode:
47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32
0 0 0 0 0 0 0 0 1
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
A – 52
