Instruction Set Reference

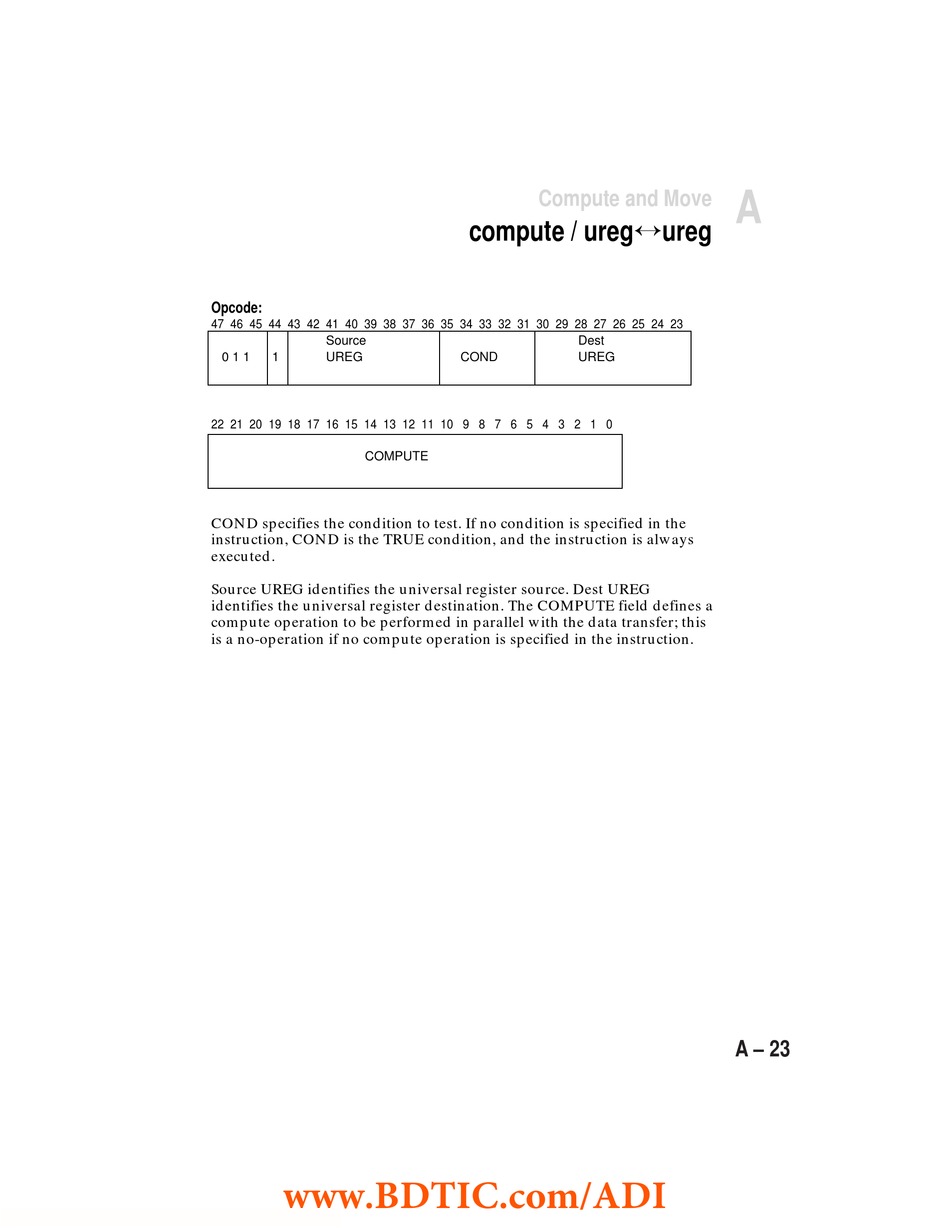

Opcode:
47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23
Source
0 1 1 1 UREG
22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
COMPUTE
COND specifies the condition to test. If no condition is specified in the
instruction, COND is the TRUE condition, and the instruction is always
executed.
Source UREG identifies the universal register source. Dest UREG
identifies the universal register destination. The COMPUTE field defines a
compute operation to be performed in parallel with the data transfer; this
is a no-operation if no compute operation is specified in the instruction.
www.BDTIC.com/ADI
Compute and Move
compute / ureg ureg
Dest
COND UREG
A
A – 23
