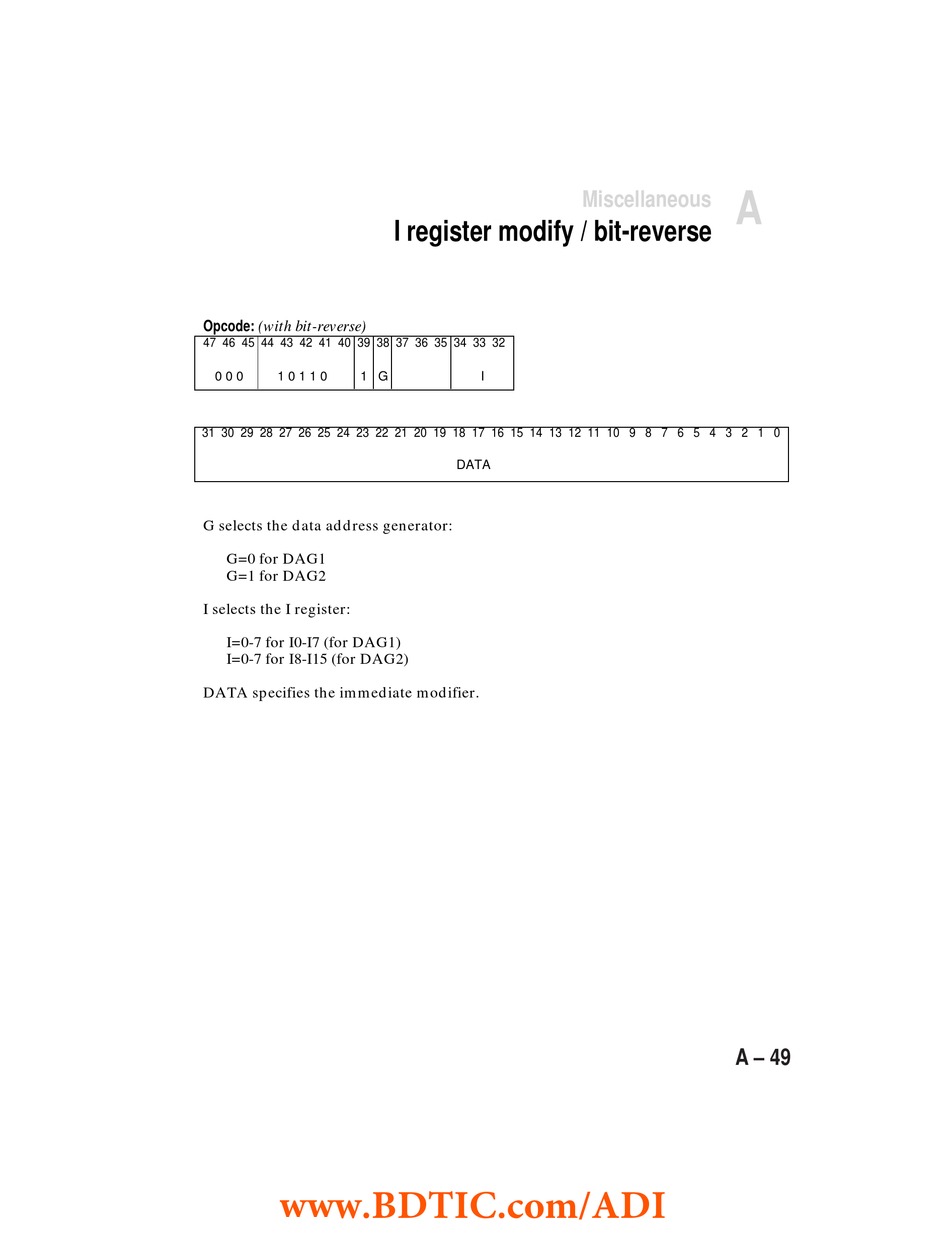

Instruction Set Reference
Opcode: (with bit-reverse)
47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32
0 0 0 1 0 1 1 0 1 G
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
G selects the data address generator:
G=0 for DAG1
G=1 for DAG2
I selects the I register:
I=0-7 for I0-I7 (for DAG1)
I=0-7 for I8-I15 (for DAG2)
DATA specifies the immediate modifier.
www.BDTIC.com/ADI
I register modify / bit-reverse
I
DATA
