Figure 7.5 Bus Arbitration Timing - Analog Devices ADSP-2106x SHARC User Manual

7 Multiprocessing
The following steps summarize the actions a slave takes to acquire bus
mastership and perform an external read or write over the bus (see
Figure 7.6):
1. The slave determines that it is executing an instruction which
requires an off-chip access. It asserts its
the cycle. Extra cycles are generated by the core processor (or DMA
controller) until the slave acquires bus mastership.
2. To acquire bus mastership, the slave waits for a bus transition cycle
in which the current bus master deasserts its
has the highest priority request in the bus transition cycle, it
becomes the bus master in the next cycle. If not, it continues
waiting.
SYSTEM CLOCK
Bus Requests:
BR1
BR2
ADSP-2106x #1
is the Bus Master
ADSP-2106x w/ ID=1:
Internal
EXECUTION FLOW
Operation
Hold control signals stable
BUS ACTIVITY
ADSP-2106x w/ ID=2:
Internal
EXECUTION FLOW
Operation
BUS ACTIVITY

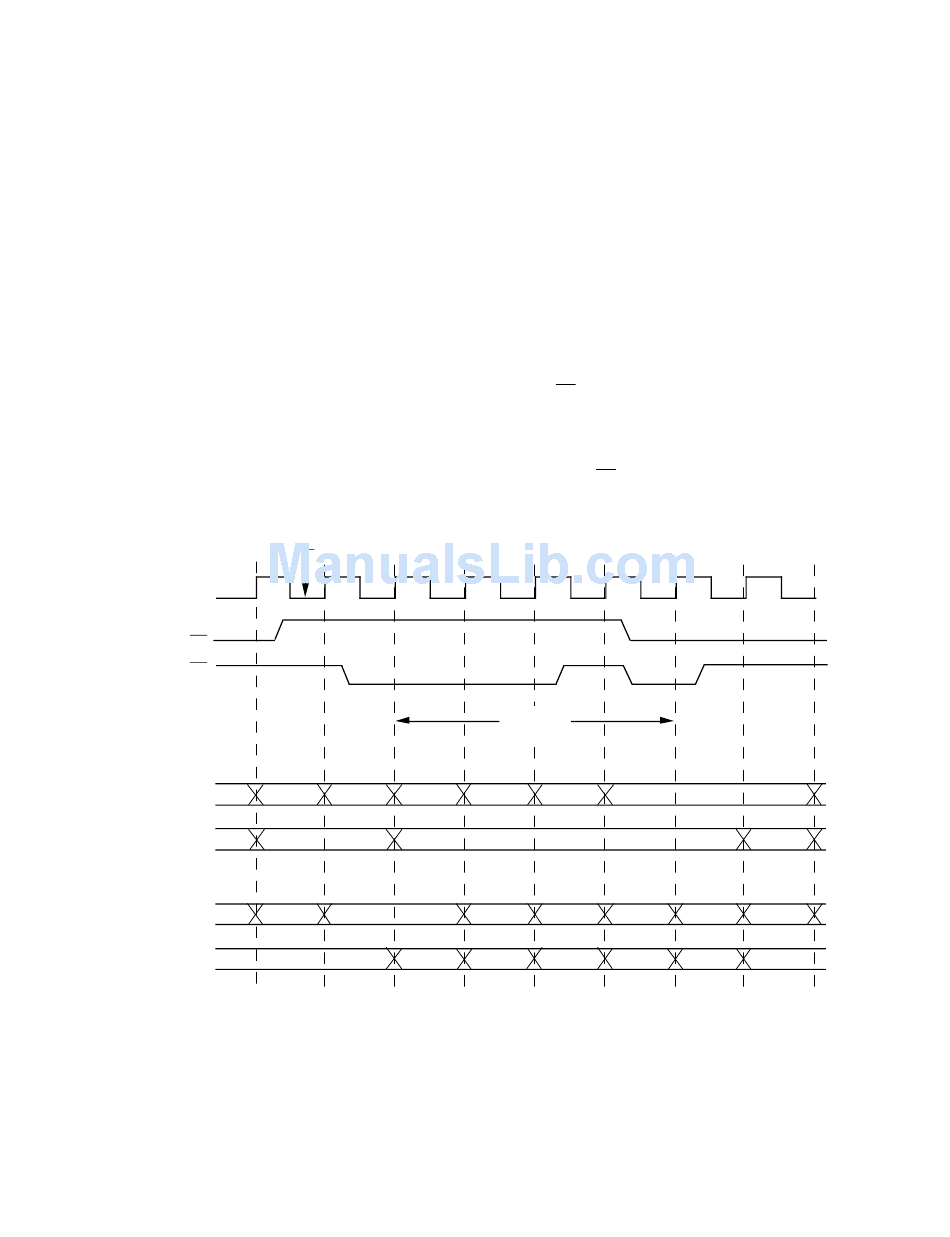

Figure 7.5 Bus Arbitration Timing
