ALU Fixed-Point
B Compute Operations

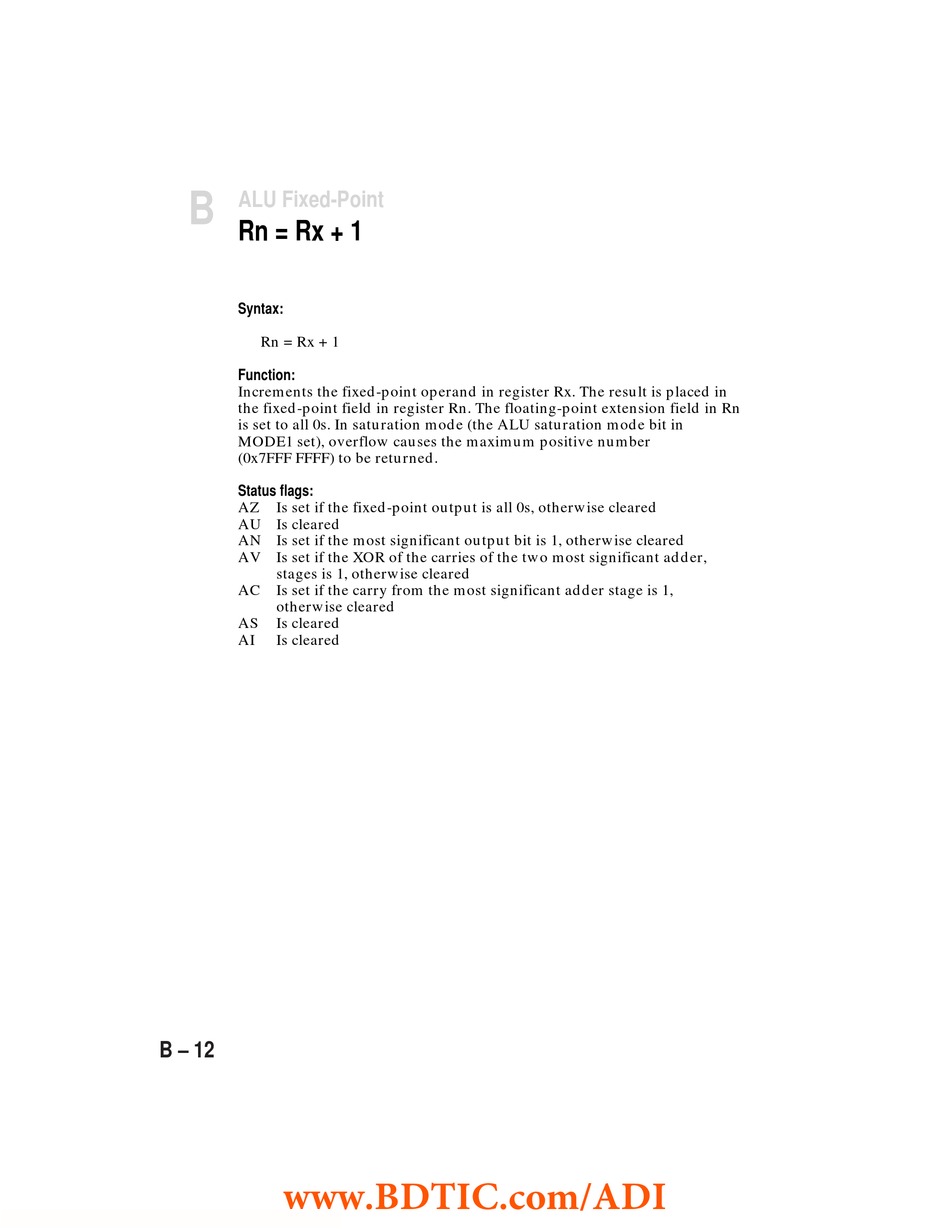

Rn = Rx + 1
Syntax:
Rn = Rx + 1
Function:
Increments the fixed-point operand in register Rx. The result is placed in
the fixed-point field in register Rn. The floating-point extension field in Rn
is set to all 0s. In saturation mode (the ALU saturation mode bit in
MODE1 set), overflow causes the maximum positive number
(0x7FFF FFFF) to be returned.
Status flags:
AZ Is set if the fixed-point output is all 0s, otherwise cleared
AU Is cleared
AN Is set if the most significant output bit is 1, otherwise cleared
AV Is set if the XOR of the carries of the two most significant adder,
stages is 1, otherwise cleared
AC Is set if the carry from the most significant adder stage is 1,
otherwise cleared
AS Is cleared
AI Is cleared
