Instruction Set Reference

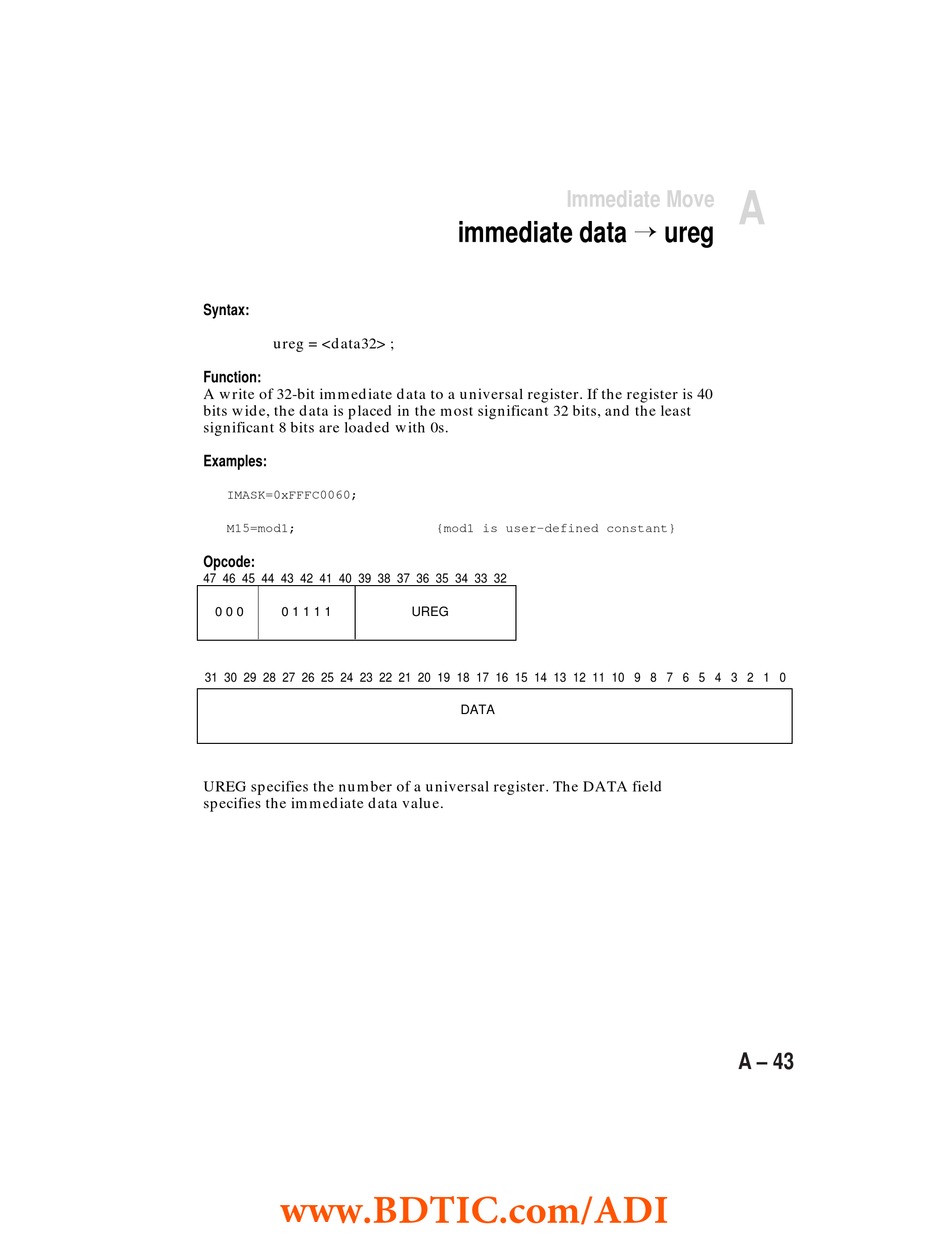

Syntax:
ureg = <data32> ;
Function:
A write of 32-bit immediate data to a universal register. If the register is 40
bits wide, the data is placed in the most significant 32 bits, and the least
significant 8 bits are loaded with 0s.
Examples:
IMASK=0xFFFC0060;
M15=mod1;
Opcode:
47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32
0 0 0 0 1 1 1 1
31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 0
UREG specifies the number of a universal register. The DATA field
specifies the immediate data value.
www.BDTIC.com/ADI
Immediate Move
immediate data
{mod1 is user-defined constant}
UREG
DATA
A
ureg
A – 43
