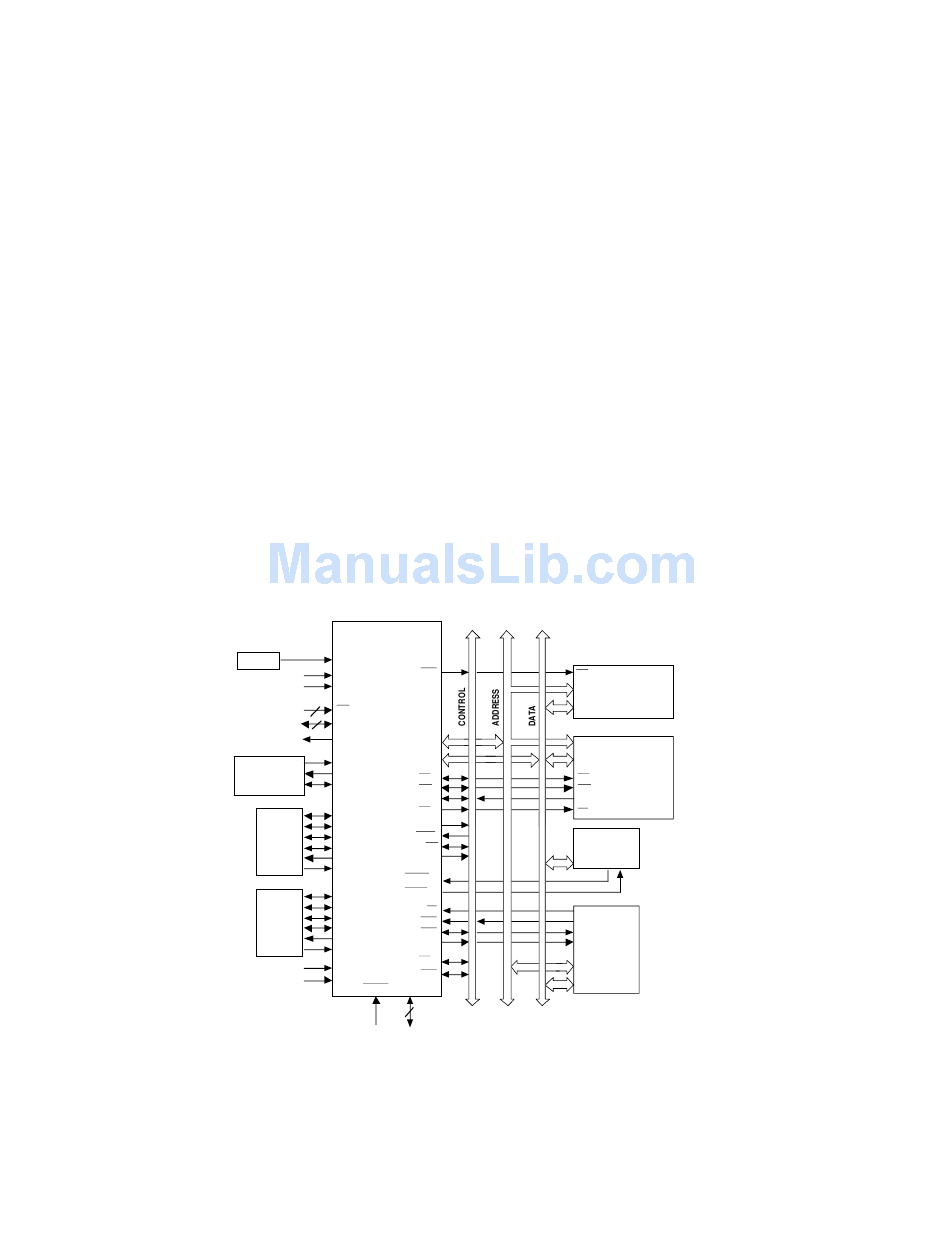

Figure 1.3 Adsp-2106X System - Analog Devices ADSP-2106x SHARC User Manual

1 Introduction
This manual covers three ADSP-2106x processors: the ADSP-21060,
ADSP-21062, and ADSP-21061. The ADSP-21060 contains 4 megabits of on-
chip SRAM, the ADSP-21062 contains 2 megabits, and the ADSP-21061
contains 1 megabit. The Memory chapter of this manual describes the
differences in memory architecture and programming considerations of the
three processors. All three processors are code- and function-compatible
with the ADSP-21020 processor. With the exception of memory size, the
ADSP-21060 and ADSP-21062 are identical in all other aspects as well.
Besides memory size, there are four differences between these two
processors and the ADSP-21061:
• No link ports on the ADSP-21061
• 6 DMA channels — 4 for serial port and 2 for external port (instead of 4)
• Additional features and changes in DMA for the serial port
• New idle 16 instruction for a further reduced power mode
These differences are described in detail in the DMA, Serial Port, and
Program Sequencer chapters.
