11 System Design
Pin Type
EBOOT I
LBOOT I
BMS
I/O/T* Boot Memory Select. Output: Used as chip select for boot
* Tristatable only in EPROM boot mode (when

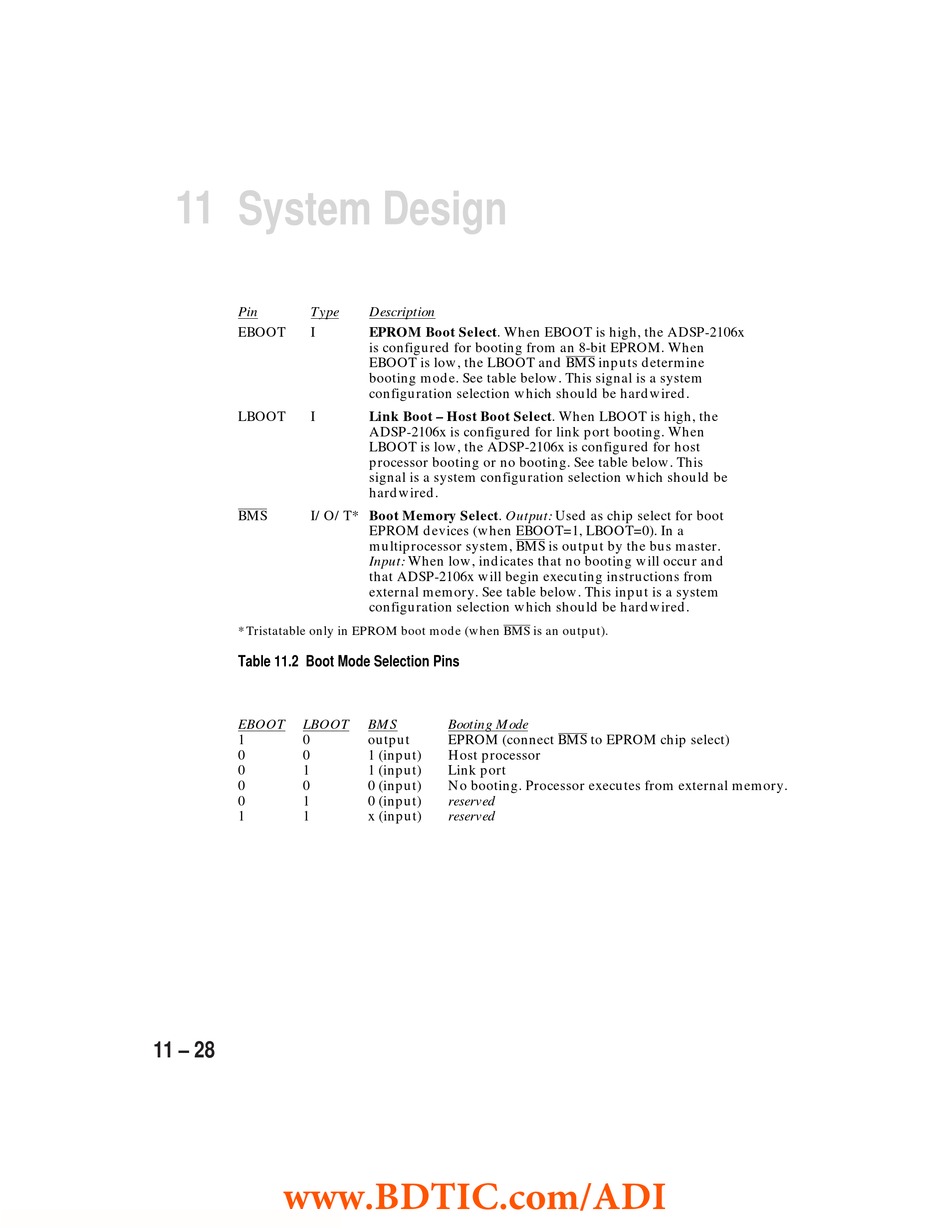

Table 11.2 Boot Mode Selection Pins

EBOOT LBOOT
1 0
0 0
0 1
0 0
0 1
1 1
11 – 28
www.BDTIC.com/ADI
Description
EPROM Boot Select. When EBOOT is high, the ADSP-2106x
is configured for booting from an 8-bit EPROM. When
EBOOT is low, the LBOOT and
booting mode. See table below. This signal is a system
configuration selection which should be hardwired.
Link Boot – Host Boot Select. When LBOOT is high, the
ADSP-2106x is configured for link port booting. When
LBOOT is low, the ADSP-2106x is configured for host
processor booting or no booting. See table below. This
signal is a system configuration selection which should be
hardwired.
EPROM devices (when EBOOT=1, LBOOT=0). In a
BMS
multiprocessor system,
Input: When low, indicates that no booting will occur and
that ADSP-2106x will begin executing instructions from
external memory. See table below. This input is a system
configuration selection which should be hardwired.
BMS
is an output).
BMS Booting Mode
output EPROM (connect
1 (input) Host processor
1 (input) Link port
0 (input) No booting. Processor executes from external memory.
0 (input) reserved
x (input) reserved
BMS
inputs determine
is output by the bus master.
BMS
to EPROM chip select)
