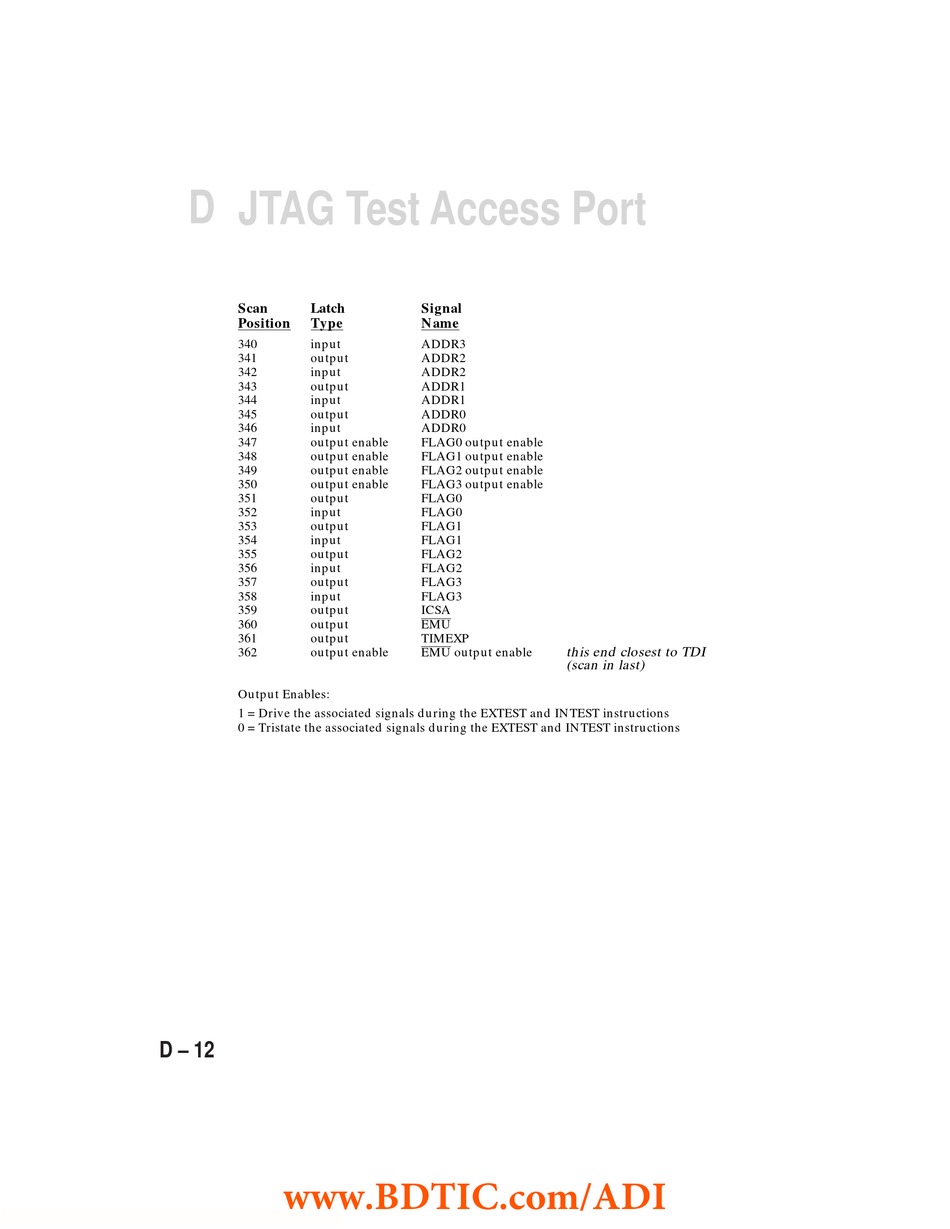

D JTAG Test Access Port
Scan Latch
Position Type
340 input
341 output
342 input
343 output
344 input
345 output
346 input
347 output enable
348 output enable
349 output enable
350 output enable
351 output
352 input
353 output
354 input
355 output
356 input
357 output
358 input
359 output
360 output
361 output
362 output enable
Output Enables:
1 = Drive the associated signals during the EXTEST and INTEST instructions
0 = Tristate the associated signals during the EXTEST and INTEST instructions
D – 12
www.BDTIC.com/ADI
Signal
Name
ADDR3
ADDR2
ADDR2
ADDR1
ADDR1
ADDR0
ADDR0
FLAG0 output enable
FLAG1 output enable
FLAG2 output enable
FLAG3 output enable
FLAG0
FLAG0
FLAG1
FLAG1
FLAG2
FLAG2
FLAG3
FLAG3
ICSA
EMU
TIMEXP
this end closest to TDI
EMU
output enable
(scan in last)
