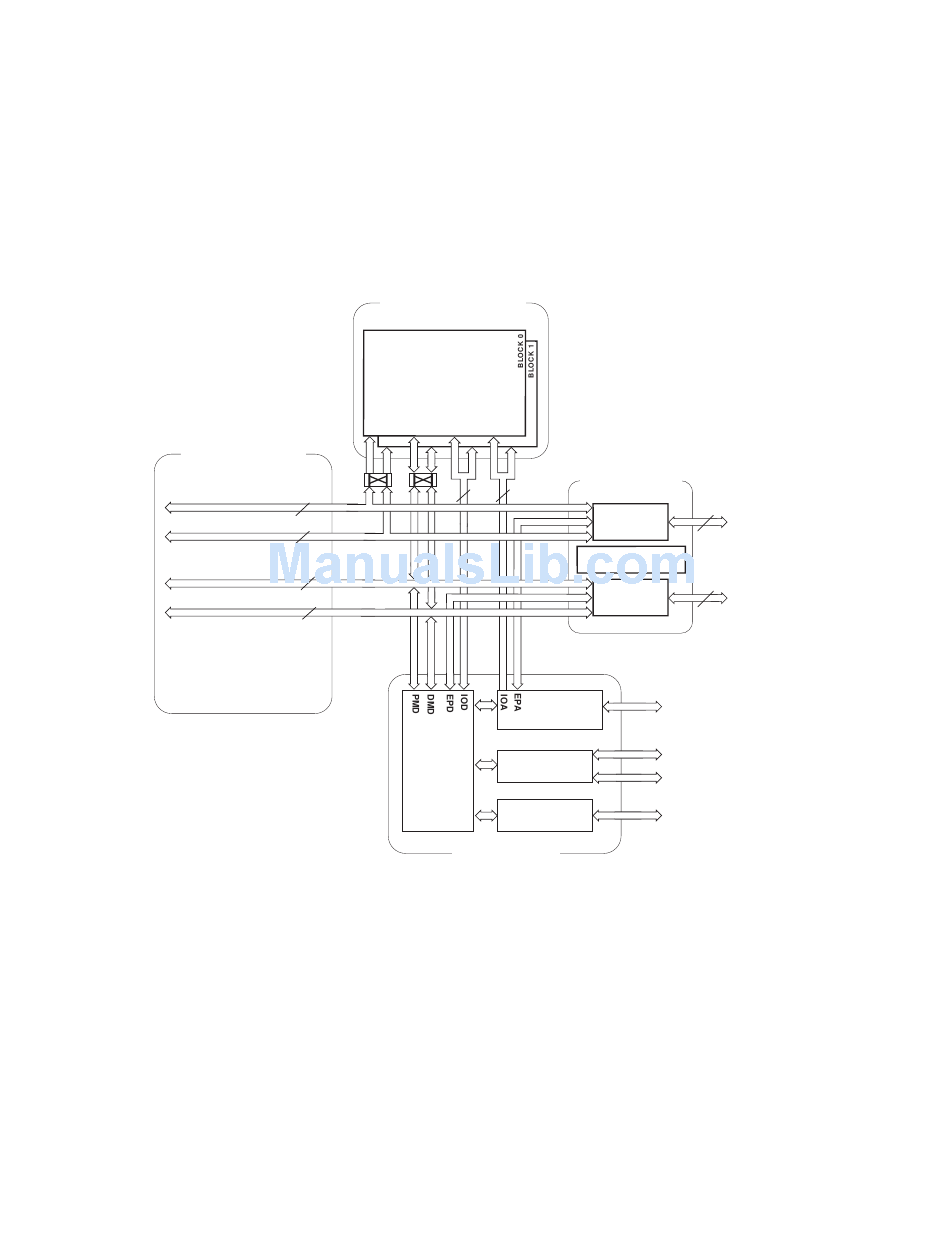

Figure 6.1 Adsp-2106X Block Diagram - Analog Devices ADSP-2106x SHARC User Manual

6 DMA
Core Processor
PM Address Bus (PMA) 24
DM Address Bus (DMA) 32
PM Data Bus (PMD) 48
DM Data Bus (DMD) 32/40
* Note that link ports are not available on the ADSP-21061.

Figure 6.1 ADSP-2106x Block Diagram

6 – 2
www.BDTIC.com/ADI
Internal Memory
PROCESSOR PORT I/O PORT
ADDR DATA DATA ADDR
IOD
IOA
48
17
CONTROLLER
IOP
REGISTERS
SERIAL PORTS
Control,
Status, &
Data Buffers
LINK PORTS
I/O Processor
External Port
PMA
Addr 32
EPA Bus
Mux
DMA
HOST INTERFACE
PMD
Data
48
EPD Bus
Mux
DMD
DMA
ADDR
31-0
DATA
47-0
