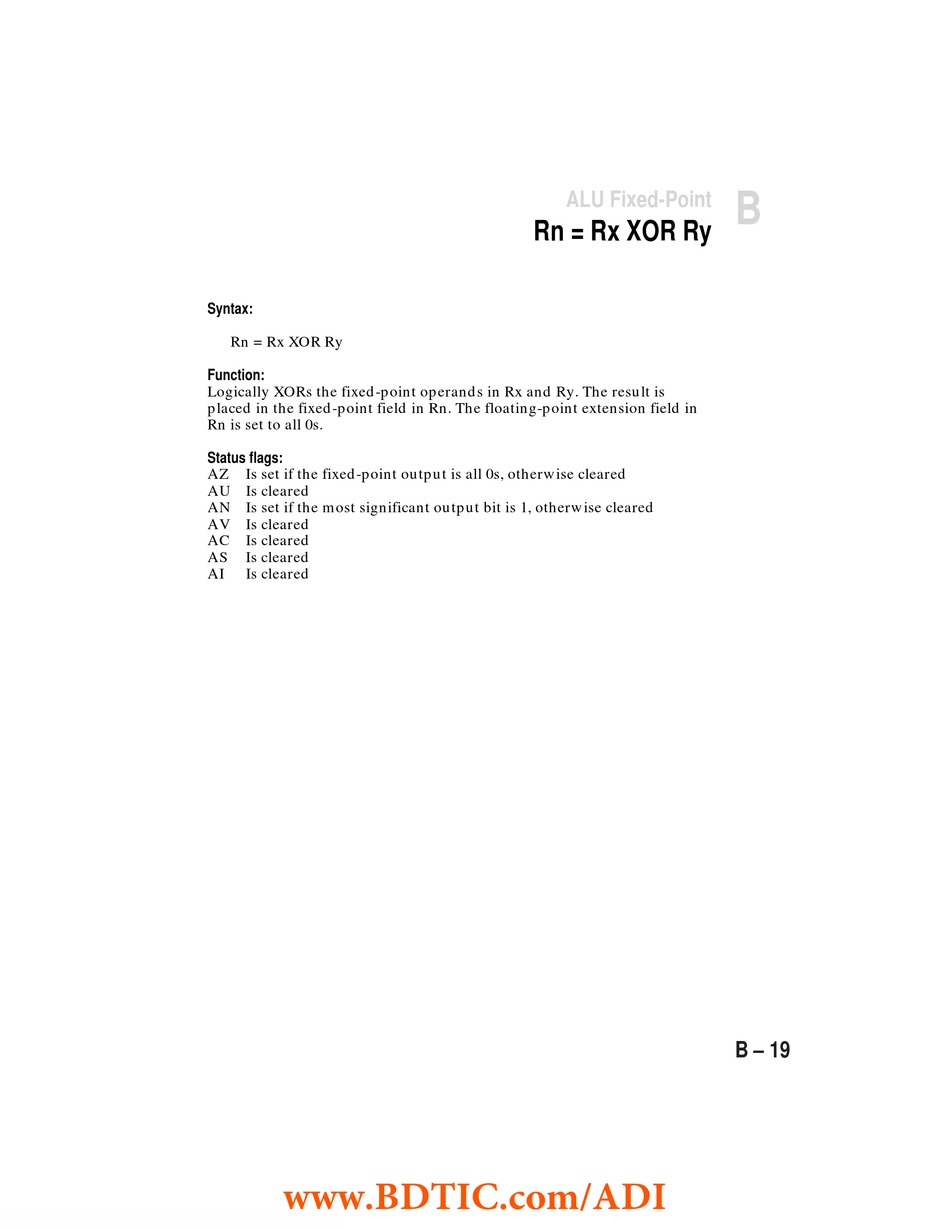

Analog Devices ADSP-2106x SHARC User Manual page 521

Compute Operations
Syntax:
Rn = Rx XOR Ry
Function:
Logically XORs the fixed-point operands in Rx and Ry. The result is
placed in the fixed-point field in Rn. The floating-point extension field in
Rn is set to all 0s.
Status flags:
AZ Is set if the fixed-point output is all 0s, otherwise cleared
AU Is cleared
AN Is set if the most significant output bit is 1, otherwise cleared
AV Is cleared
AC Is cleared
AS Is cleared
AI Is cleared
www.BDTIC.com/ADI
ALU Fixed-Point
Rn = Rx XOR Ry
B
B – 19
