As the OTG_FS core is able to fill in the 1.25 Kbyte RAM buffer very efficiently, and as
1.25 Kbyte of transmit/receive data is more than enough to cover a full speed frame, the
USB system is able to withstand the maximum full-speed data rate for up to one USB frame
(1 ms) without any CPU intervention.
43.13

OTG_FS interrupts

When the OTG_FS controller is operating in one mode, either device or host, the application
must not access registers from the other mode. If an illegal access occurs, a mode
mismatch interrupt is generated and reflected in the Core interrupt register (MMIS bit in the
OTG_GINTSTS register). When the core switches from one mode to the other, the registers
in the new mode of operation must be reprogrammed as they would be after a power-on
reset.
Figure 501
1. The core interrupt register bits are shown in
shows the interrupt hierarchy.

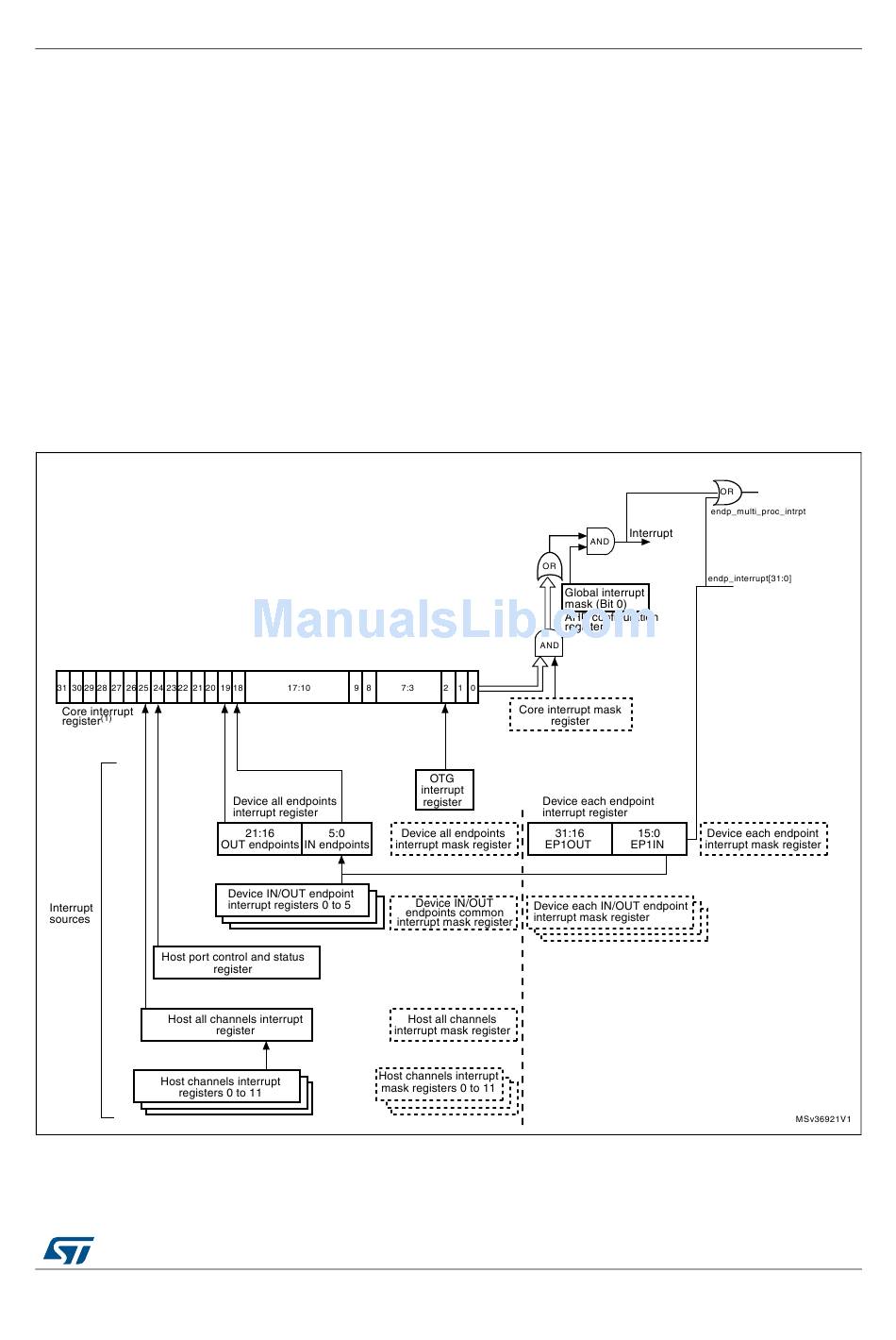

Figure 501. Interrupt hierarchy

DocID024597 Rev 3
USB on-the-go full-speed (OTG_FS)
OTG core interrupt register (OTG_GINTSTS) on page 1530.
