36-55 Terminal X49/9 Timeout Preset
Default value: 0%
Setup: 1 setup
Data type: Uint16
The drive sends the value of this parameter to the output terminal when the terminal is controlled by a fieldbus and a timeout is
detected.
6.35.7 36-6* Output X49/11
Use the parameters in this group to configure the mode of inputs and outputs of VLT® Programmable I/O MCB 115.
The following parameter is only available in FC 302:
Parameter 36-61 Terminal X49/11 Digital Output
l
36-60 Terminal X49/11 Analogue Output
Default value: [0] No operation
Setup:
All setups
Data type: Uint8
Select the functionality of terminal X49/11.
Option Name
[0]* No operation
[52] MCO
[100] Output frequency
[101] Reference
[102] Feedback
[103] Motor current
[104] Torque rel to limit
[105] Torque relate to rated
© 2024.09
Parameter type:
Conversion index:
Change during operation:
NOTICE
Parameter type:
Conversion index:
Change during operation:
Description
Indicates no signal on the analog output.
0 Hz = 0 mA; 100 Hz = 20 mA.
Parameter 3-00 Reference Range [Min - Max] 0% = 0 mA; 100% =
20 mA
Parameter 3-00 Reference Range [-Max - Max] -100% = 0 mA; 0%
= 10 mA; +100% = 20 mA.
The value is taken from parameter 16-37 Inv. Max. Current. The
inverter maximum current (160% current) is equal to 20 mA.

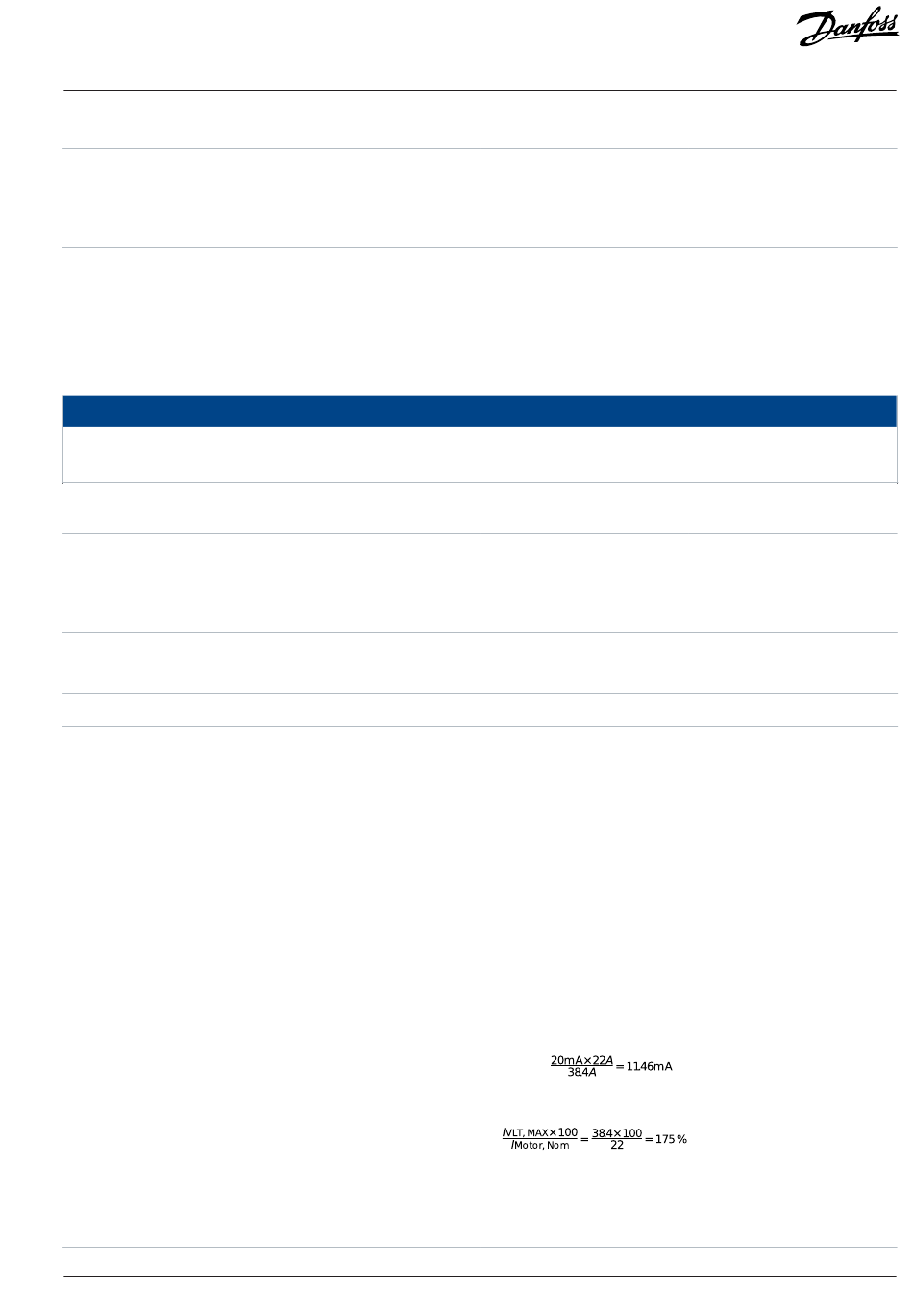

Example: Inverter normal current (11 kW) is 24 A. 160
%=38.4 A. Motor normal current is 22 A, the readout is
11.46 mA.
When the normal motor current is equal to 20 mA, the output
setting of parameter 6-52 Terminal 42 Output Max Scale
is:
The torque setting is related to the setting in parameter 4-16
Torque Limit Motor Mode.
The torque is related to the motor torque setting.
Parameter Descriptions
Range, 0 - 100%
0
True
Option
–
True
