Status View Ii - Danfoss VLT AutomationDrive FC 301 Programming Manual

Programming Guide | VLT® AutomationDrive FC 301/FC 302
Status
799 RPM
1.1
1.2
Auto Remote Ramping
2
Figure 12: Status View I
5.1.8.2

Status View II

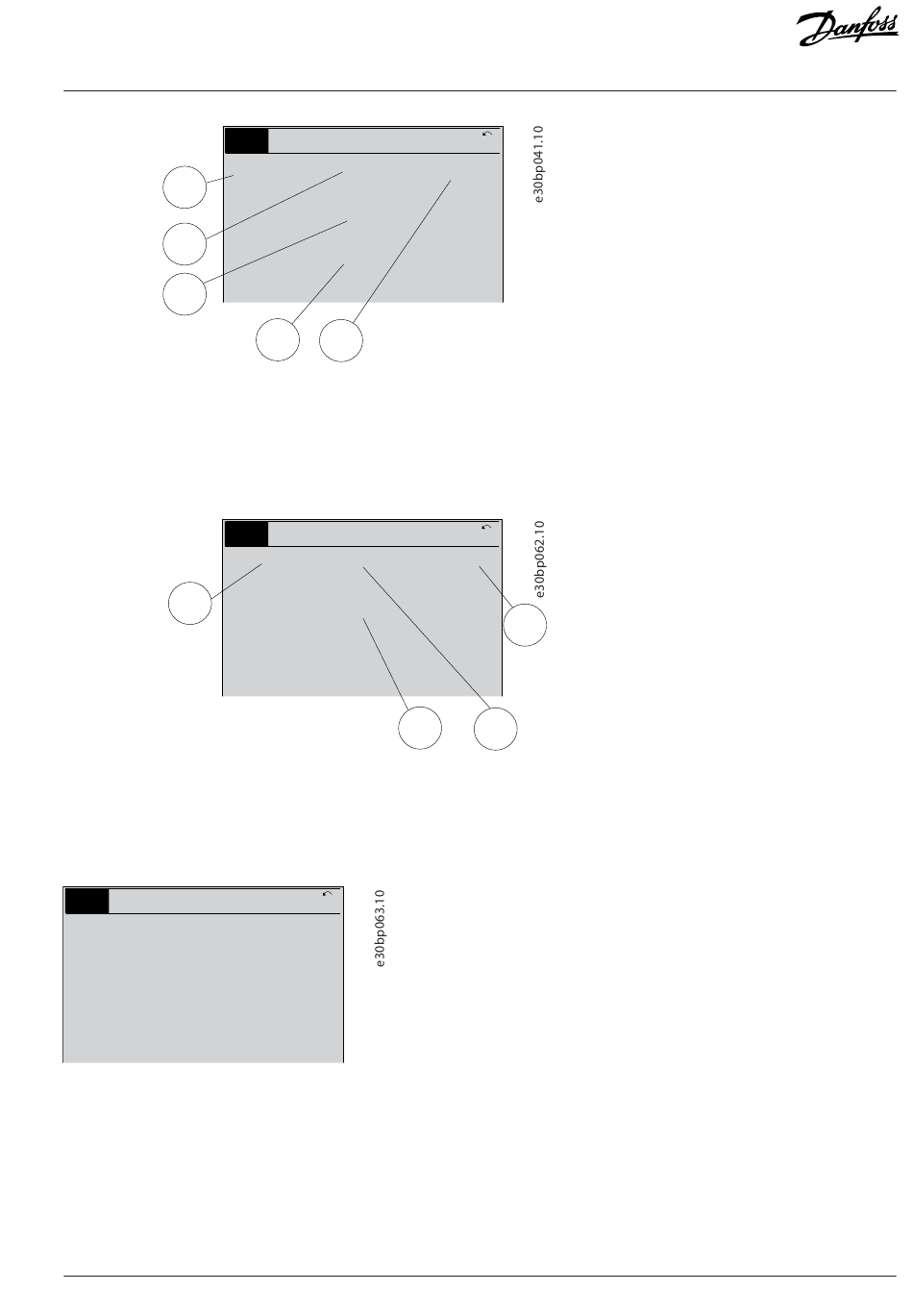

See the operating variables (1.1, 1.2, 1.3, and 2) shown in the following illustration. In the example, speed, motor current, motor power,
and frequency are selected in the 1st and 2nd lines.
Status
1.1
Auto Remote Running
Figure 13: Status View II
5.1.8.3 Status View III
This state shows the event and action of the smart logic control.
Status
778 RPM 0.86 A
State: 0 off 0 (off)
When: -
Do: -
Auto Remote Running
Figure 14: Status View III
