Programming Guide | VLT® AutomationDrive FC 301/FC 302
If the test is OK
If the test fails
Select [2] Initialisation to reset all parameter values to default settings, except for: Parameter 15-03 Power Up's, parameter 15-04 Over
Temp's, and parameter 15-05 Over Volt's. The drive resets during the next power-up. Parameter 14-22 Operation Mode also returns to the
default setting [0] Normal operation.
Option Name
[0]* Normal operation
[1] Control card test
[2] Initialisation
[3] Boot mode
© 2024.09
LCP readout: Control card OK.
Disconnect the mains supply and remove the test plug. The
green indicator light on the control card lights up.
LCP readout: Control card I/O failure.
Replace the drive or control card. The red indicator light on the
control card is turned on. Test plugs (connect the following
terminals to each other): 18 - 27 - 32; 19 - 29 - 33; 42 - 53 - 54.
12 13 18 19 27 29 32
12 13 18 19 27 32
39 42 50 53 54 55
FC 301 &
FC 302

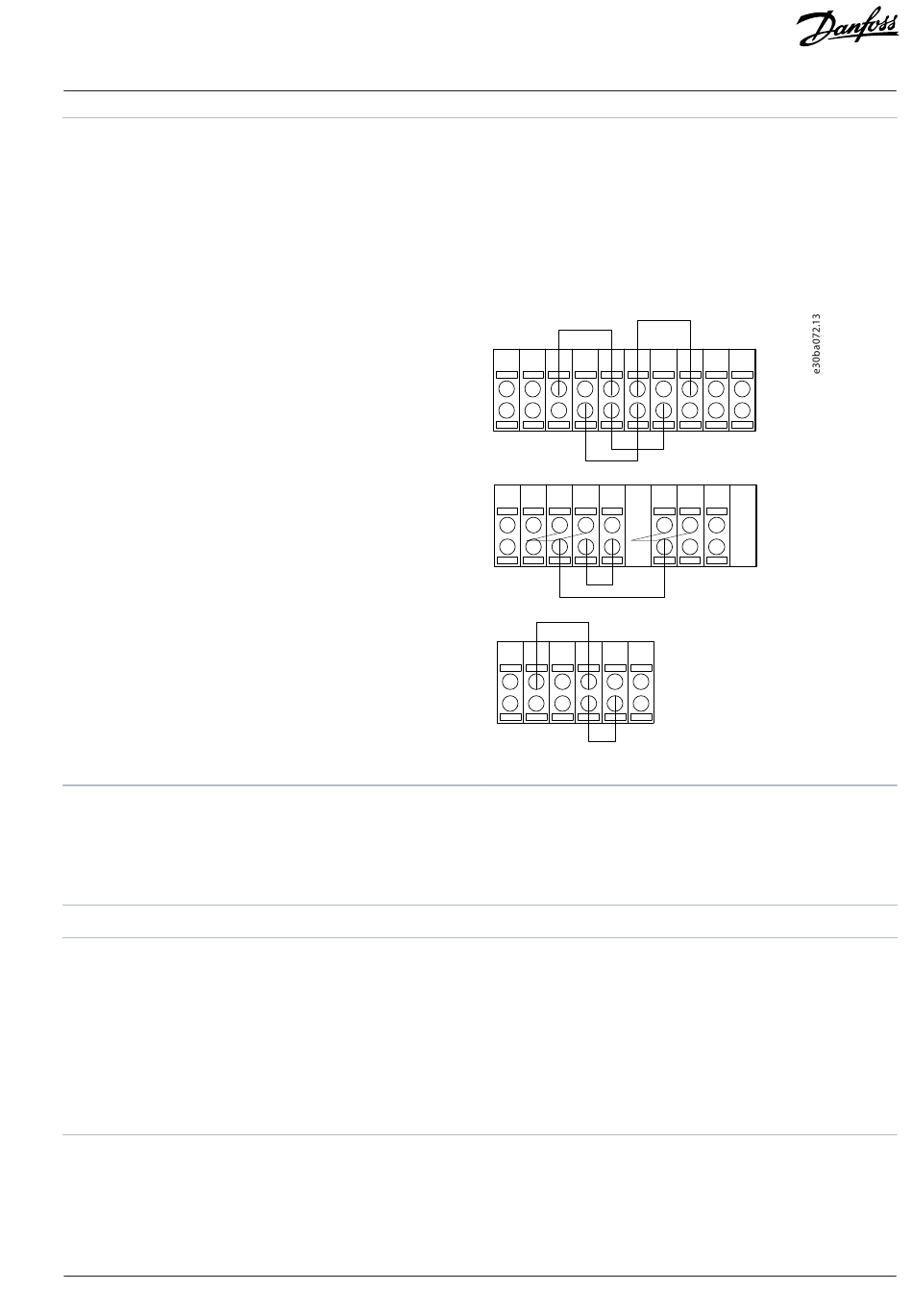

Figure 89: Test Plugs
Description
Remember to set switches S201 (A53) and S202 (A54) as specified
in the parameter description when performing a control card
test. Otherwise, the test fails.
Select this option to perform initialization. This option does not
clear the service logs.
