Speed Up/Down - Danfoss VLT AutomationDrive FC 301 Programming Manual

Programming Guide | VLT® AutomationDrive FC 301/FC 302
12 13 18 19 27
Start Stop inverse
Speed
Start (18)
Start (27)

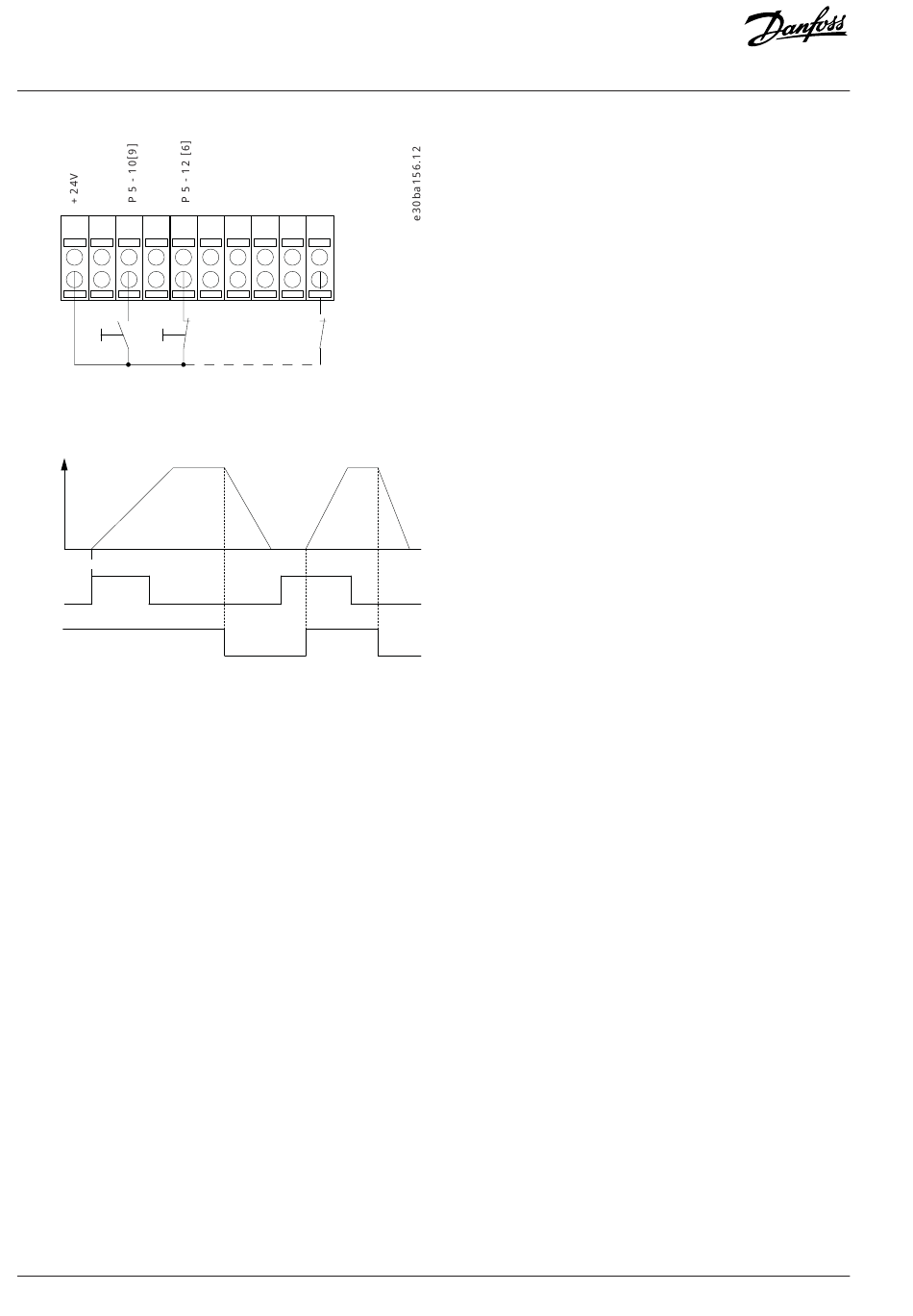

Figure 6: Pulse Start/Stop

Speed Up/Down

4.3
Terminals 29/32 = Speed up/down
Terminal 18 = Parameter 5-10 Terminal 18 Digital Input, [9] Start (default).
Terminal 27 = Parameter 5-12 Terminal 27 Digital Input, [19] Freeze reference.
Terminal 29 = Parameter 5-13 Terminal 29 Digital Input, [21] Speed up
Terminal 32 = Parameter 5-14 Terminal 32 Digital Input, [22] Speed down
