Programming Guide | VLT® AutomationDrive FC 301/FC 302
6-60 Terminal X30/8 Output
Default value: [0] No operation
Setup: All setups
Data type: Uint8
Select the function of terminal X30/8 as an analog current output. Depending on the selection, the output is either a 0–20 mA or 4–
20 mA output. The current value can be read out in the LCP in parameter 16-65 Analog Output 42 [mA].
Option Name
[0] No operation
[52] MCO
[100] Output frequency
[101] Reference
[102] Feedback
[103] Motor current
[104] Torque rel to limit
[105] Torque relate to rated
[106] Power
[107] Speed
[108] Torque
[109] Max out freq
[113] PID clamped output
[117] Shaft power
[118] Shaft power 4–20mS
[119] Torque % lim
[123] Speed both dir
290 | © 2024.09
Parameter type:
Conversion index:
Change during operation:
Description
Indicates no signal on the analog output.
The analog value is set by the MCO 305 application program
using the command OUTDA.
0 Hz = 0 mA; 100 Hz = 20 mA.
Parameter 3-00 Reference Range [Min - Max] 0% = 0 mA; 100% =
20 mA
Parameter 3-00 Reference Range [-Max - Max] -100% = 0 mA; 0%
= 10 mA; +100% = 20 mA.
The value is taken from parameter 16-37 Inv. Max. Current. The
inverter maximum current (160% current) is equal to 20 mA.

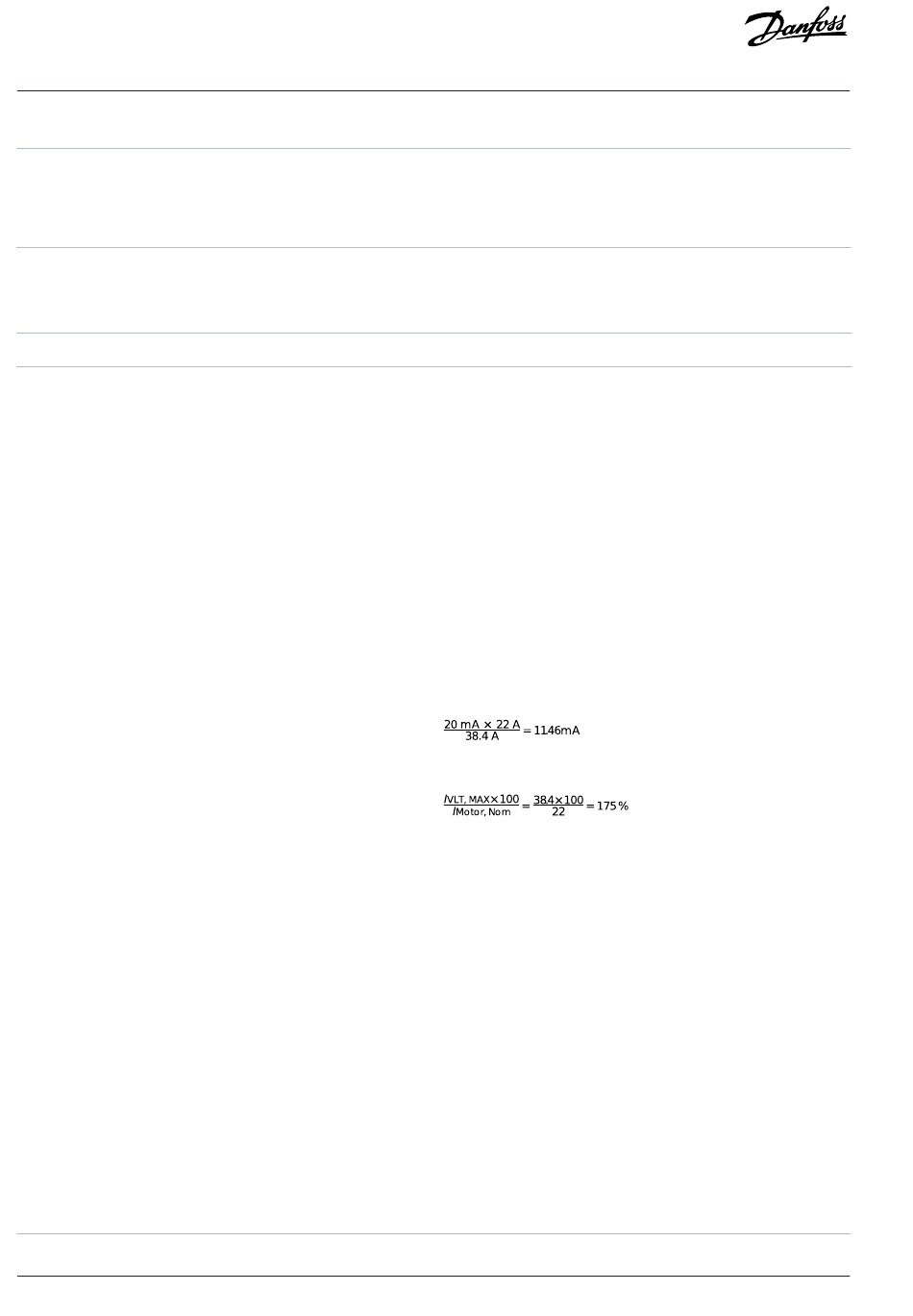

Example: Inverter normal current (11 kW) is 24 A. 160 %=38.4 A.
Motor normal current is 22 A, the readout is 11.46 mA.
When the normal motor current is equal to 20 mA, the output
setting of parameter 6-52 Terminal 42 Output Max Scale is:
The torque setting is related to the setting in parameter 4-16
Torque Limit Motor Mode.
The torque is related to the motor torque setting.
Taken from parameter 1-20 Motor Power [kW].
Taken from parameter 3-03 Maximum Reference. 20 mA equals
the value in parameter 3-03 Maximum Reference.
Torque reference related to 160% torque.
0 Hz = 0 mA, parameter 4-19 Max Output Frequency = 20 mA.
Parameter Descriptions
Option
–
True
AU275636650261en-003201 / 130R0334
