Programming Guide | VLT® AutomationDrive FC 301/FC 302
If start-up is delayed, the LCP shows the INITIALIZING message until it is ready. Adding or removing options can delay the start-up.

LCD Display

5.1.2
The display has backlight and a total of 6 alpha-numeric lines. The display lines show the direction of rotation (arrow), the selected setup,
and the programming setup. The display is divided into 3 sections.
Top section
The top section shows up to 2 measurements in normal operating status.
The EM-x number in the middle of the top line indicates the active setup in parameter groups 24-0x Emergency Mode and 24-4x
Emergency Mode 2. The active emergency mode setup can also be read in parameter 0-17 Active Emergency Setup.
Middle section
The top line shows up to 5 measurements with related unit, regardless of status (except in the case of alarm/warning).
Bottom section
The bottom section always shows the state of the drive in Status mode.
Status
Top section
43 RPM
Middle section
! Pwr.card temp (W29)
Bottom section
Auto Remote Running

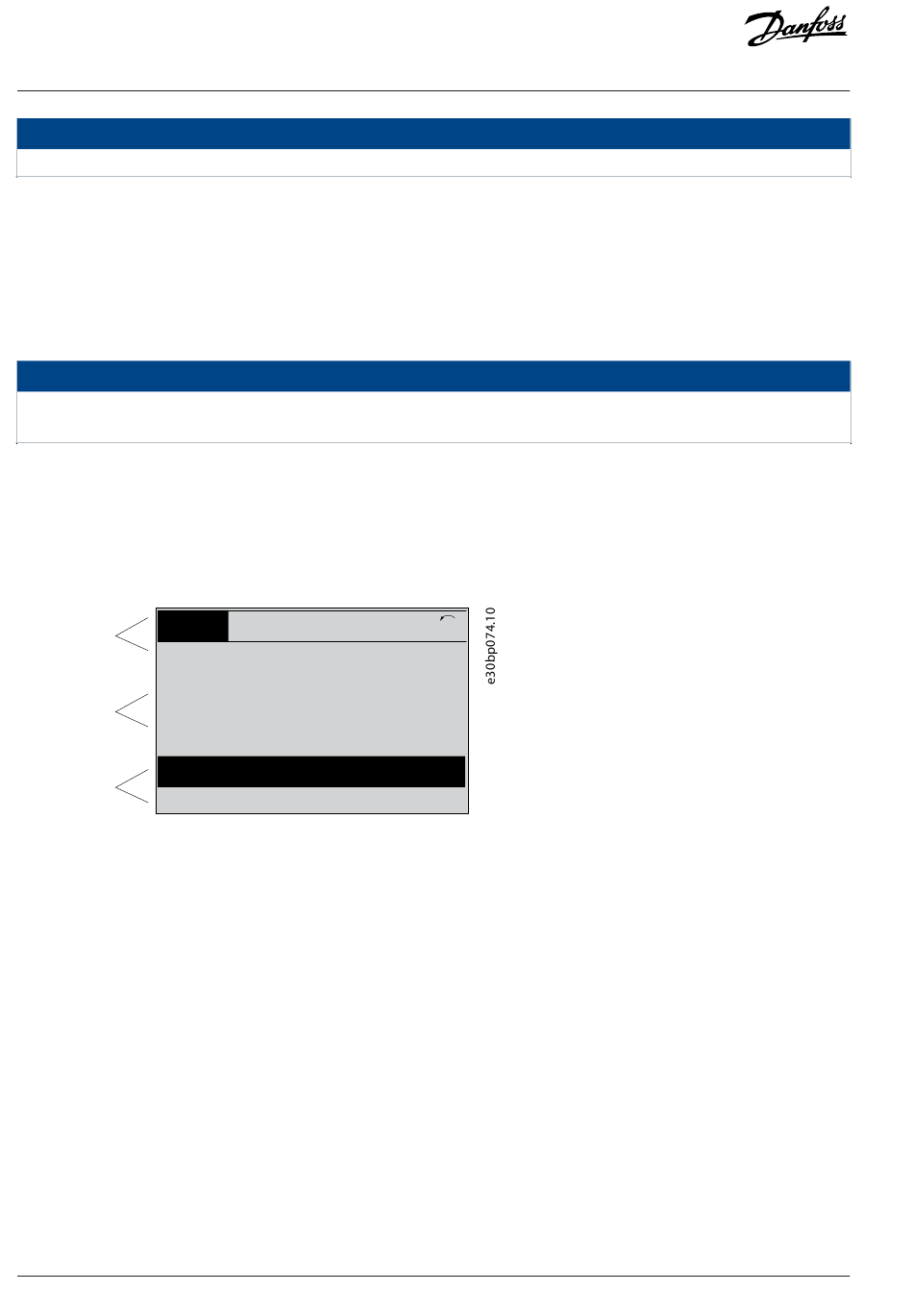

Figure 10: Overview of the Display
The active setup (selected as the active setup in parameter 0-10 Active Set-up) is shown. When programming another setup than the
active setup, the number of the programmed setup appears to the right.
Display contrast adjustment
Press [Status] and [▲] for darker display.
Press [Status] and [▼] for brighter display.
Most parameter setups can be changed immediately via the LCP, unless a password has been created via parameter 0-60 Main Menu
Password or via parameter 0-65 Quick Menu Password.
Indicator lights
If certain threshold values are exceeded, the alarm and/or warning indicator lights up, A status and alarm text appear on the LCP. The ON
indicator light is activated when the drive receives mains voltage, via a DC bus terminal, or 24 V external supply. At the same time, the
back indicator light is on.
Green LED/On: Control section is working.
l
Yellow LED/Warn.: Indicates a warning.
l
28 | © 2024.09
NOTICE
NOTICE
! 1(1)
5.44 A 25.3kW
1.4 Hz
2.9%
