Programming Guide | VLT® AutomationDrive FC 301/FC 302
Encoder connection to the drive
24 V incremental encoder. Maximum cable length is 5 m (16.4 ft).
12
13
18
19

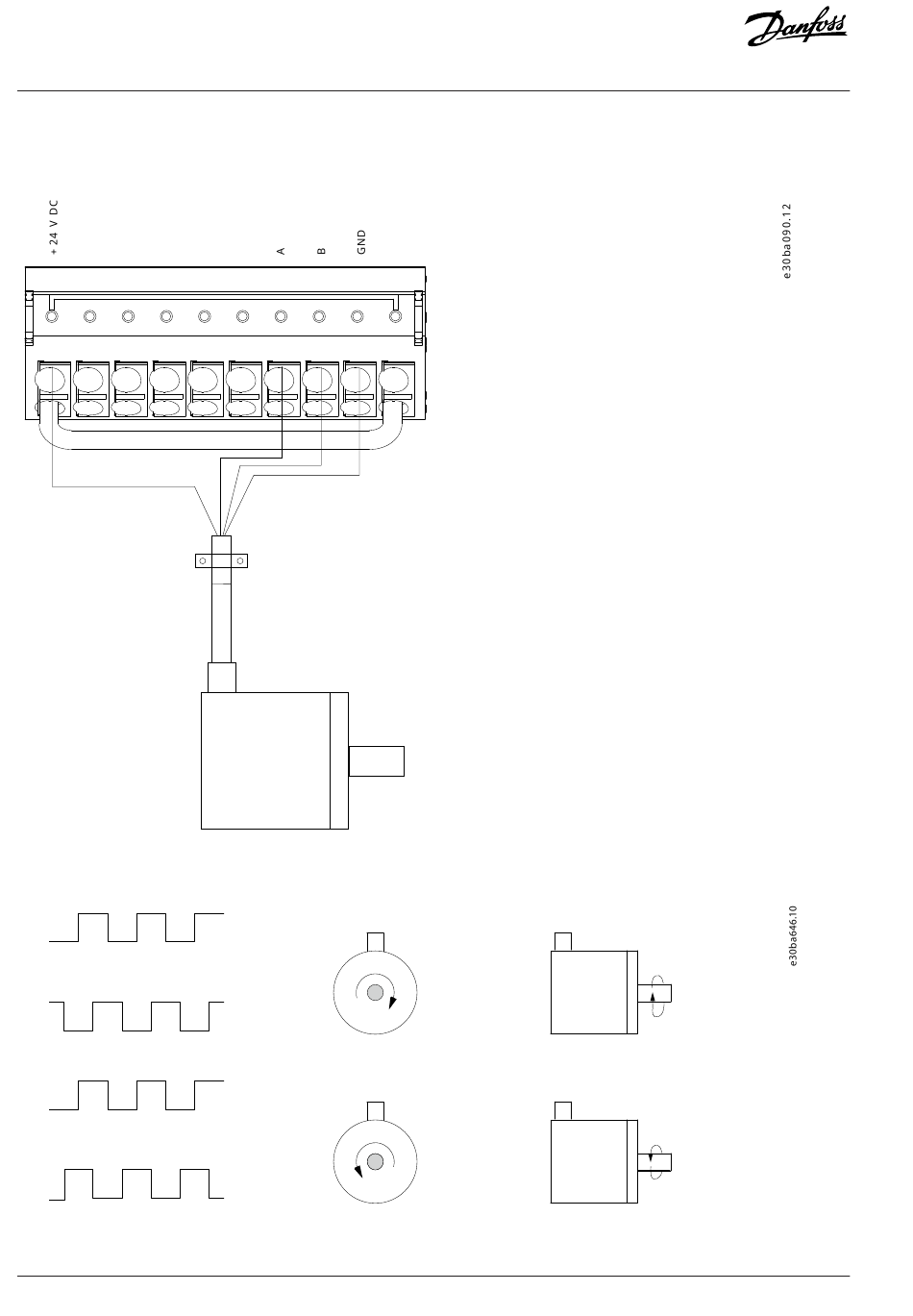

Figure 71: Encoder Connection
A
B
A
B
Figure 72: Encoder Rotation Direction
272
| © 2024.09
27
29
32
33
20
24 V or 10–30 V encoder
1
37
2
Parameter Descriptions
AU275636650261en-003201 / 130R0334
