Programming Guide | VLT® AutomationDrive FC 301/FC 302
Table 5: Selection of Parameter
Parameter
Parameter 3-42 Ramp 1 Ramp Down Time
Parameter 3-13 Reference Site
1) If terminal 27 is set to [0] No operation, no connection to +24 V on terminal 27 is necessary.
Select Changes made to get the information about:
The last 10 changes. Use the [▲] [▼] navigation keys to scroll between the last 10 changed parameters.
l
The changes made since default setting.
l
Select Loggings to get information about the shown line readouts. The information is shown as graphs. Only parameters selected in
parameter 0-20 Display Line 1.1 Small and parameter 0-24 Display Line 3 Large can be viewed. It is possible to store up to 120 samples in
the memory for later reference.
5.1.11

Initial Commissioning

The easiest way of carrying out the initial commissioning is be pressing [Quick Menu] and following the quick setup procedure using LCP
102. Read the procedure from left to right. The example applies to an open-loop application.

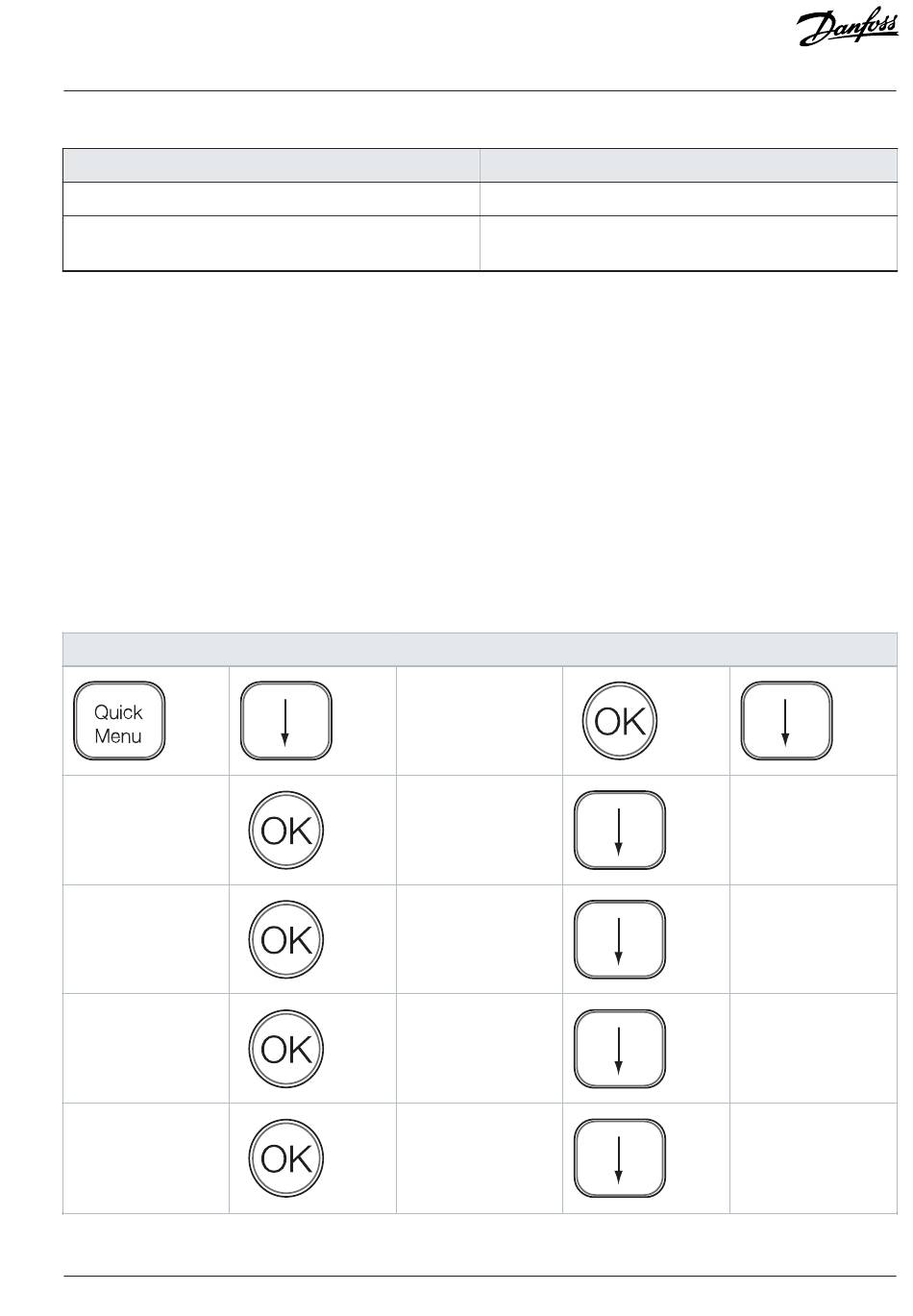

Table 6: Quick Setup Procedure
Press
Parameter 0-01
Language
Parameter 1-20 Motor
Power [kW]
Parameter 1-22 Motor
Voltage
Parameter 1-23 Motor
Frequency
© 2024.09
(continued)
Q2 Quick Menu
Set language
Set motor nameplate
power.
Set nameplate voltage.
Set nameplate fre-
quency.
Setting
[s]
Select whether to control the drive via digital inputs, LCP, or re-
mote control.
AU275636650261en-003201 / 130R0334 |
How to Program
37
