Programming Guide | VLT® AutomationDrive FC 301/FC 302
13-20 SL Controller Timer
Default value: Size related
Setup: 1 setup
Data type: Timediff w/o DateID
Enter the value to define the duration of the false output from the programmed timer. A timer is only false if it is started by an action
(that is [29] Start timer 1) and until the given timer value has elapsed.
6.14.6

13-4* Logic Rules

Combine up to 3 boolean inputs (true/false inputs) from timers, comparators, digital inputs, status bits, and events using the logical
operators AND, OR, and NOT. Select boolean inputs for the calculation in parameter 13-40 Logic Rule Boolean 1, parameter 13-42
Logic Rule Boolean 2, and parameter 13-44 Logic Rule Boolean 3. Define the operators used to logically combine the selected inputs in
parameter 13-41 Logic Rule Operator 1 and parameter 13-43 Logic Rule Operator 2.
Par. 13-41
Logic Rule Operator 1
Par. 13-40
Logic Rule Boolean 1
Par. 13-42
Logic Rule Boolean 2 . . .
. . .
Par. 13-44
Logic Rule Boolean 3

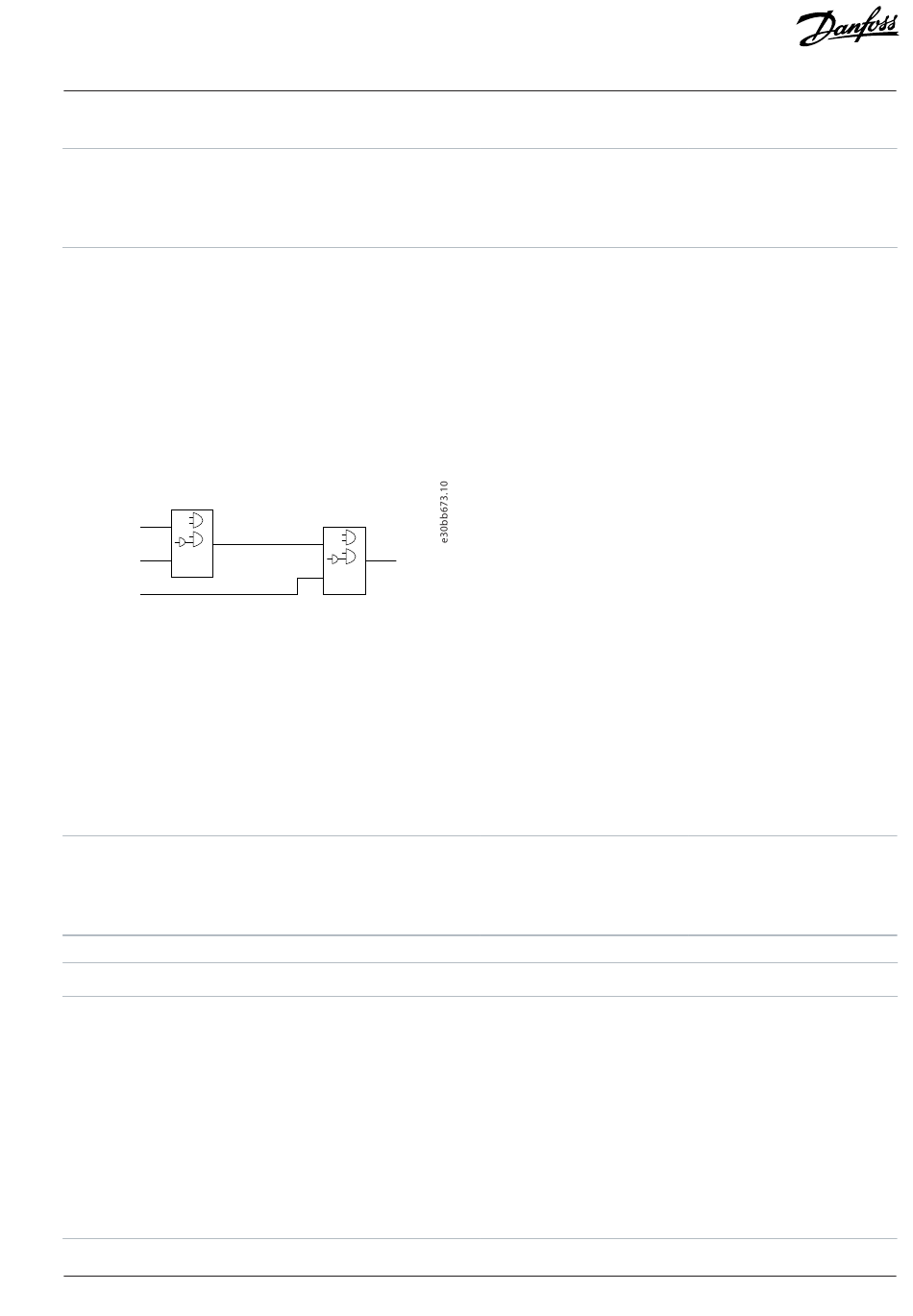

Figure 83: Logic Rules
Priority of calculation
The results of parameter 13-40 Logic Rule Boolean 1, parameter 13-41 Logic Rule Operator 1, and parameter 13-42 Logic Rule Boolean 2
are calculated first. The outcome (true/false) of this calculation is combined with the settings of parameter 13-43 Logic Rule Operator 2
and parameter 13-44 Logic Rule Boolean 3, yielding the final result (true/false) of the logic rule.
13-40 Logic Rule Boolean 1
Default value: –
Setup: 2 setups
Data type:
Uint8
Option Name
[0] False
[1] True
[2] Running
[3] In range
[4] On reference
[5] Torque limit
© 2024.09
Parameter type:
Conversion index:
Change during operation:
Par. 13-43
Logic Rule Operator 2
. . .
. . .
Parameter type:
Conversion index:
Change during operation:
Description
Select the 1st boolean (true or false) input for the selected logic
rule. See parameter 13-01 Start Event and parameter 13-02 Stop
Event for more information.
Parameter Descriptions
Range, 0 - 0, Array [10]
-3
True
Option, Array [10]
–
True
AU275636650261en-003201 / 130R0334 | 445
