Universal serial bus full-speed device interface (USB)
32.4

USB functional description

Figure 393
The USB peripheral provides an USB-compliant connection between the host PC and the
function implemented by the microcontroller. Data transfer between the host PC and the
system memory occurs through a dedicated packet buffer memory accessed directly by the
USB peripheral. This dedicated memory size is up to 1024 bytes, and up to 16 mono-
directional or 8 bidirectional endpoints can be used. The USB peripheral interfaces with the
USB host, detecting token packets, handling data transmission/reception, and processing
handshake packets as required by the USB standard. Transaction formatting is performed
by the hardware, including CRC generation and checking.
Each endpoint is associated with a buffer description block indicating where the endpoint-
related memory area is located, how large it is or how many bytes must be transmitted.
When a token for a valid function/endpoint pair is recognized by the USB peripheral, the
related data transfer (if required and if the endpoint is configured) takes place. The data
1005/1080
shows the block diagram of the USB peripheral.

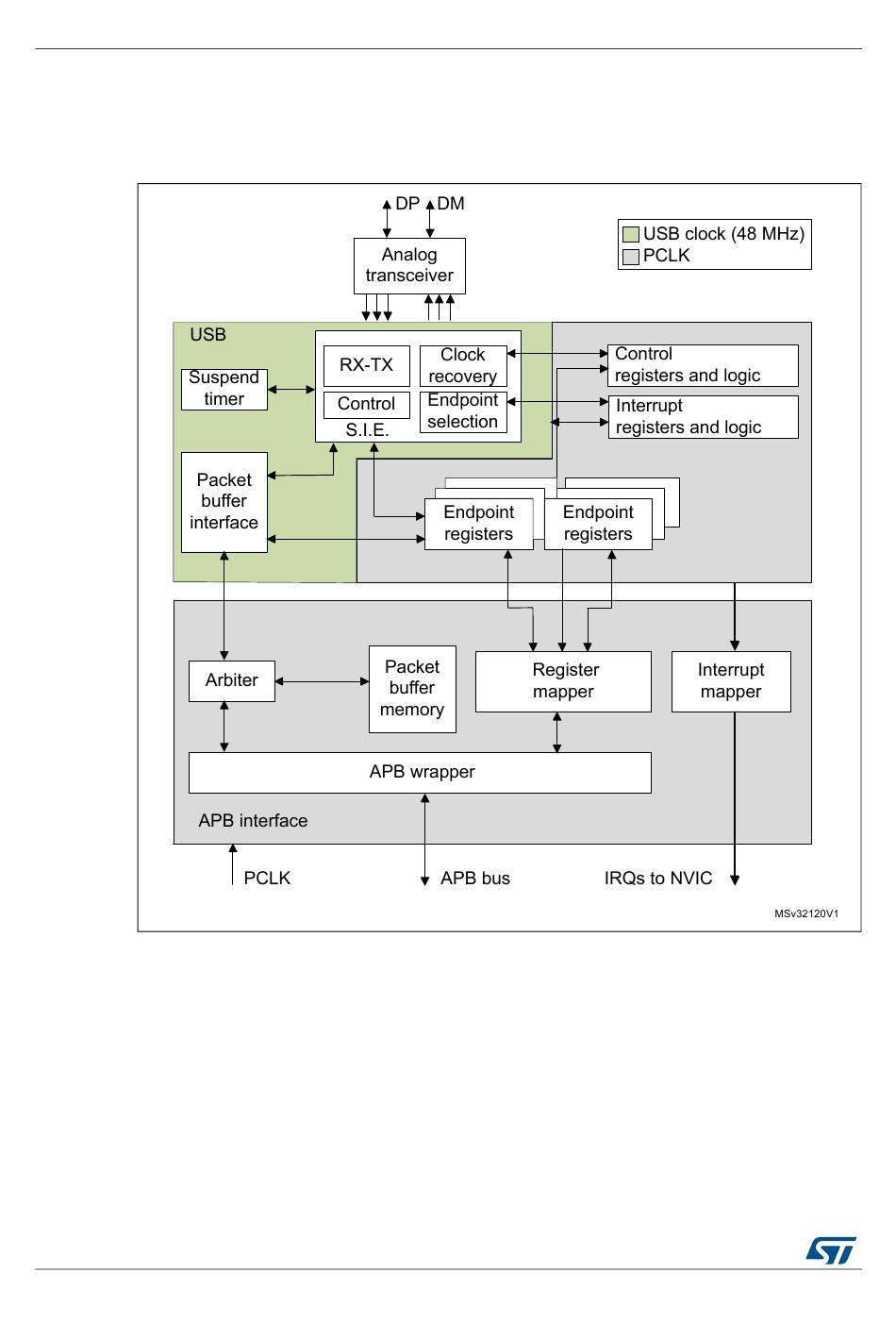

Figure 393. USB peripheral block diagram
