IDPDRn—I/O Data Path Diagnostic Registers
Address
BB + 2A80, 2180, 2280, 2380
Access
R/W
The IDPDRn registers can be programmed by diagnostics to force
errors on the TLSB and Turbo Vortex buses for the I/O port to de-
tect. System bus errors are transmitted on the TLSB and are de-
tected by the I/O port when the signals are received back. These
registers can also be used to force errors to be generated across
the Down Turbo Vortex buses.
These registers are physically located in the four IDR data path
gate arrays IDR0–3, respectively, of the I/O port.

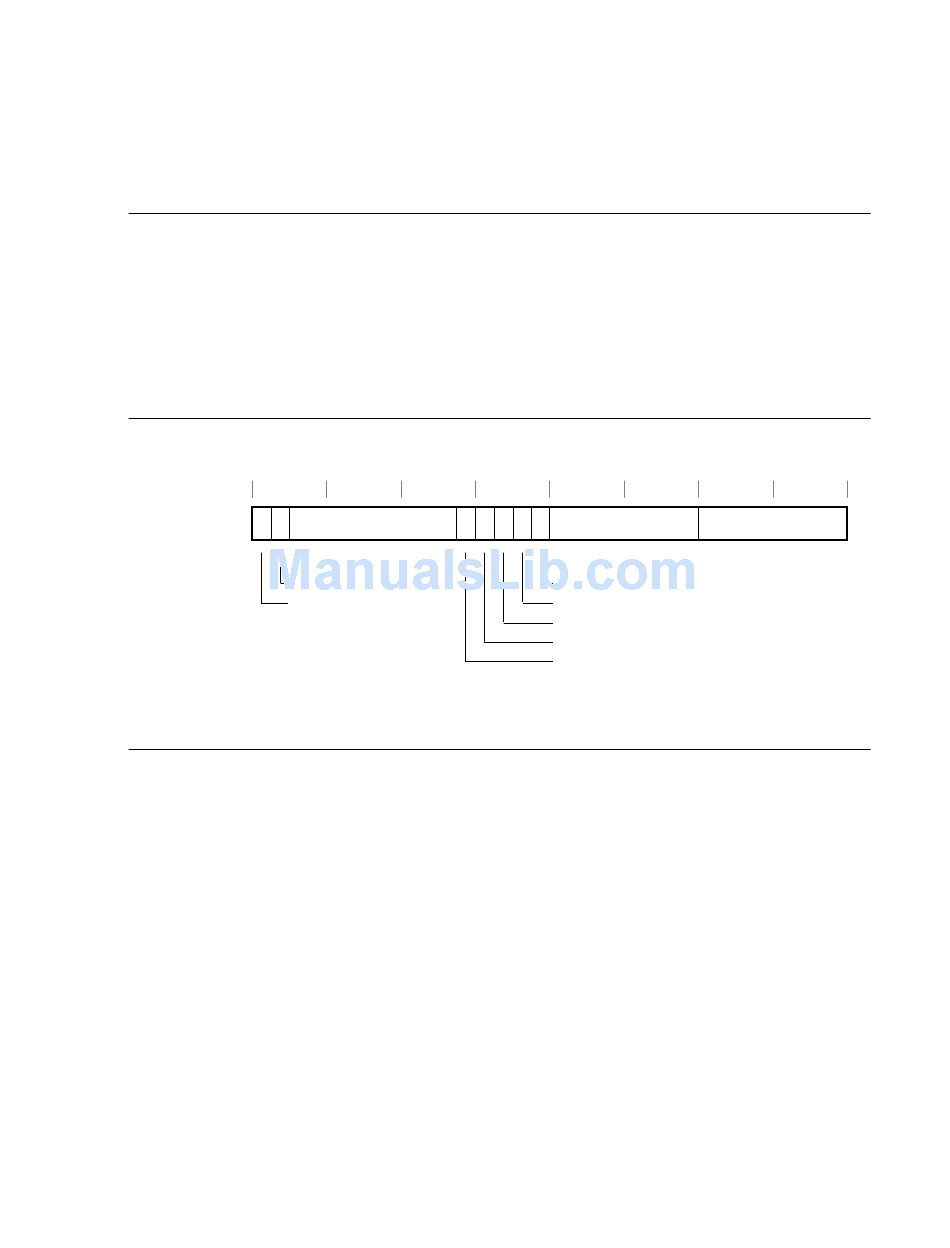

31 30 29
DIS_DN_HOSE_RST
VOLT_MARG
21 20 19 18 17 16 15
RSVD
8
7
RSVD
FRC_ECC <7:0>
FRC_CSR_BUS_DPE
FRC_CSR_BUS_APE
FRC_DN_DPE
FRC_VAL_SEQ_ERR
FRC_EOP_SEQ_ERR
System Registers 7-133
0
BXB-0562-94
