Instruction Execution Timing

8.2 INSTRUCTION EXECUTION TIMING EXAMPLES

All examples assume an instruction cache hit.

8.2.1 Data Cache Load

lwz
r12,64 (SP)
sub
r3,r12,3
addic r4,r14,1
mulli r5,r3,3
addi r4,3(r0)
LWZ
FETCH
DECODE
READ + EXECUTE
WRITEBACK
L ADDRESS DRIVE
L DATA
LOAD WRITE BACK

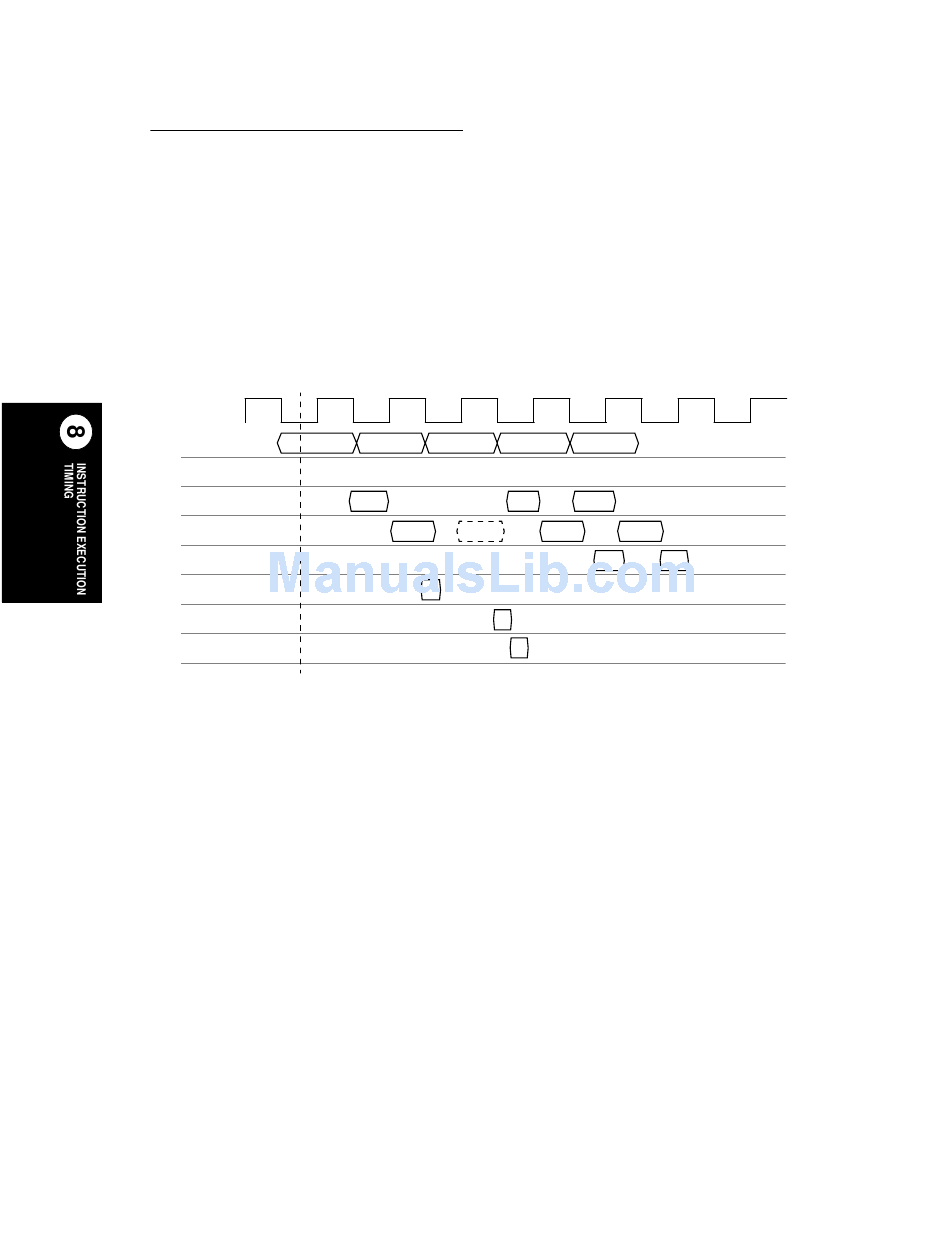

Figure 8-1. Example of a Data Cache Load
This is an example from a data cache with zero wait states. The sub instruction is dependent
on the value loaded by the load to r12. This causes a bubble to occur in the instruction
stream as shown in the execute line. Refer to Section 8.2.2.2 Private Writeback Bus Load
for instances in which no such dependency exists.
8-4
SUB ADDIC MULLI
LWZ SUB
LWZ BUBBLE
LD
LD
LD
MPC823e REFERENCE MANUAL
ADDI
ADDIC
SUB ADDIC
SUB ADD
MOTOROLA
