Figure 161. Pwm Input Mode Timing - ST STM32WL55JC Reference Manual

RM0453
0039
TIM1_CNT
TIM1_CCR1
OC1REF= OC1
25.3.11 PWM mode
Pulse Width Modulation mode allows a signal to be generated with a frequency determined
by the value of the TIMx_ARR register and a duty cycle determined by the value of the
TIMx_CCRx register.
The PWM mode can be selected independently on each channel (one PWM per OCx
output) by writing '0110' (PWM mode 1) or '0111' (PWM mode 2) in the OCxM bits in the
TIMx_CCMRx register. The corresponding preload register must be enabled by setting the
OCxPE bit in the TIMx_CCMRx register, and eventually the auto-reload preload register (in
upcounting or center-aligned modes) by setting the ARPE bit in the TIMx_CR1 register.
As the preload registers are transferred to the shadow registers only when an update event
occurs, before starting the counter, all registers must be initialized by setting the UG bit in
the TIMx_EGR register.
OCx polarity is software programmable using the CCxP bit in the TIMx_CCER register. It
can be programmed as active high or active low. OCx output is enabled by a combination of
the CCxE, CCxNE, MOE, OSSI and OSSR bits (TIMx_CCER and TIMx_BDTR registers).
Refer to the TIMx_CCER register description for more details.
In PWM mode (1 or 2), TIMx_CNT and TIMx_CCRx are always compared to determine
whether TIMx_CCRx ≤ TIMx_CNT or TIMx_CNT ≤ TIMx_CCRx (depending on the direction
of the counter).
The timer is able to generate PWM in edge-aligned mode or center-aligned mode
depending on the CMS bits in the TIMx_CR1 register.

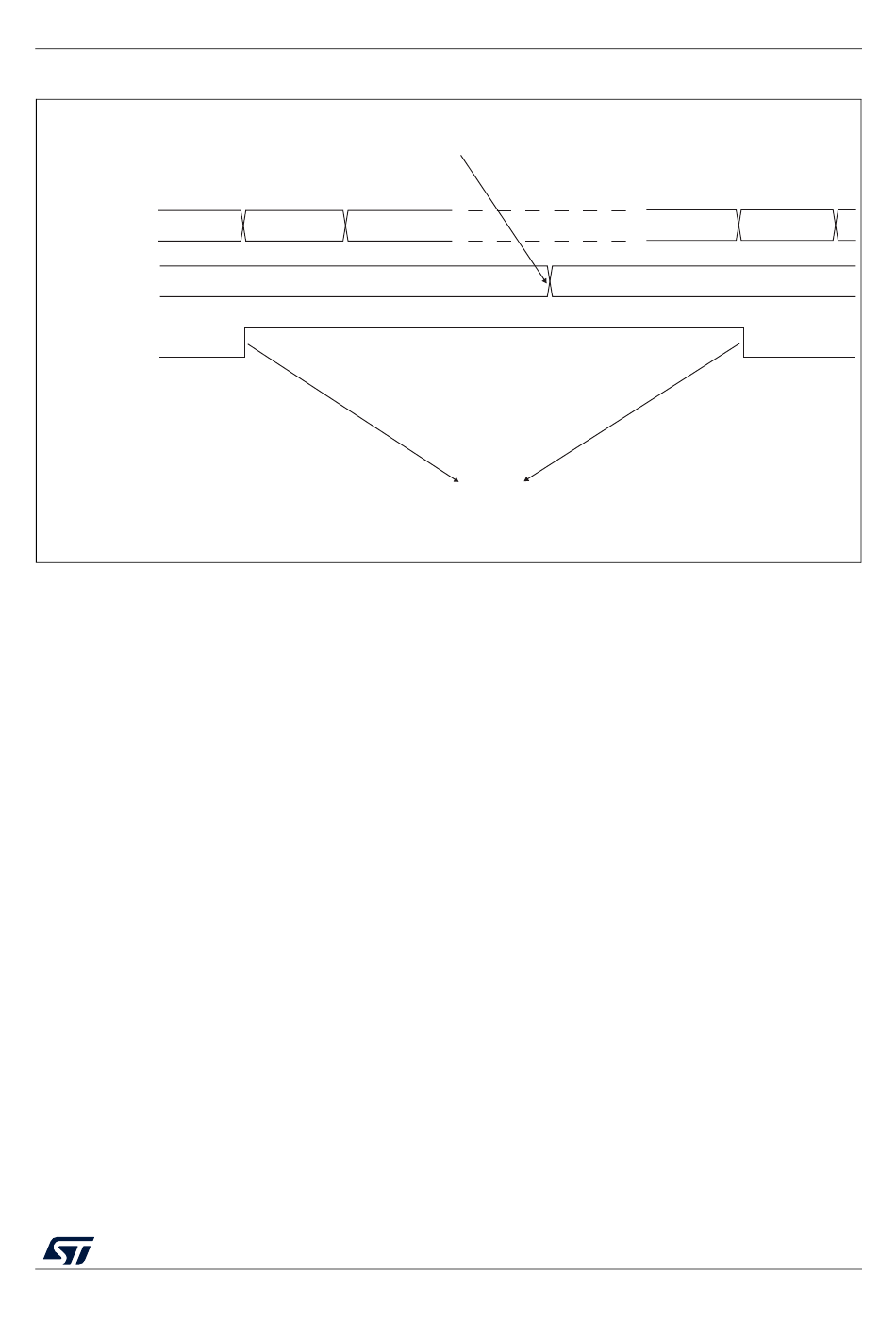

Figure 162. Output compare mode, toggle on OC1
Write B201h in the CC1R register
003A 003B
003A
Interrupt generated if enabled
RM0453 Rev 2
Match detected on CCR1
Advanced-control timer (TIM1)
B200 B201
B201
MS31092V1
751/1454
822
