General-purpose timers (TIM16/TIM17)
If the delay is greater than the width of the active output (OCx or OCxN) then the
corresponding pulse is not generated.

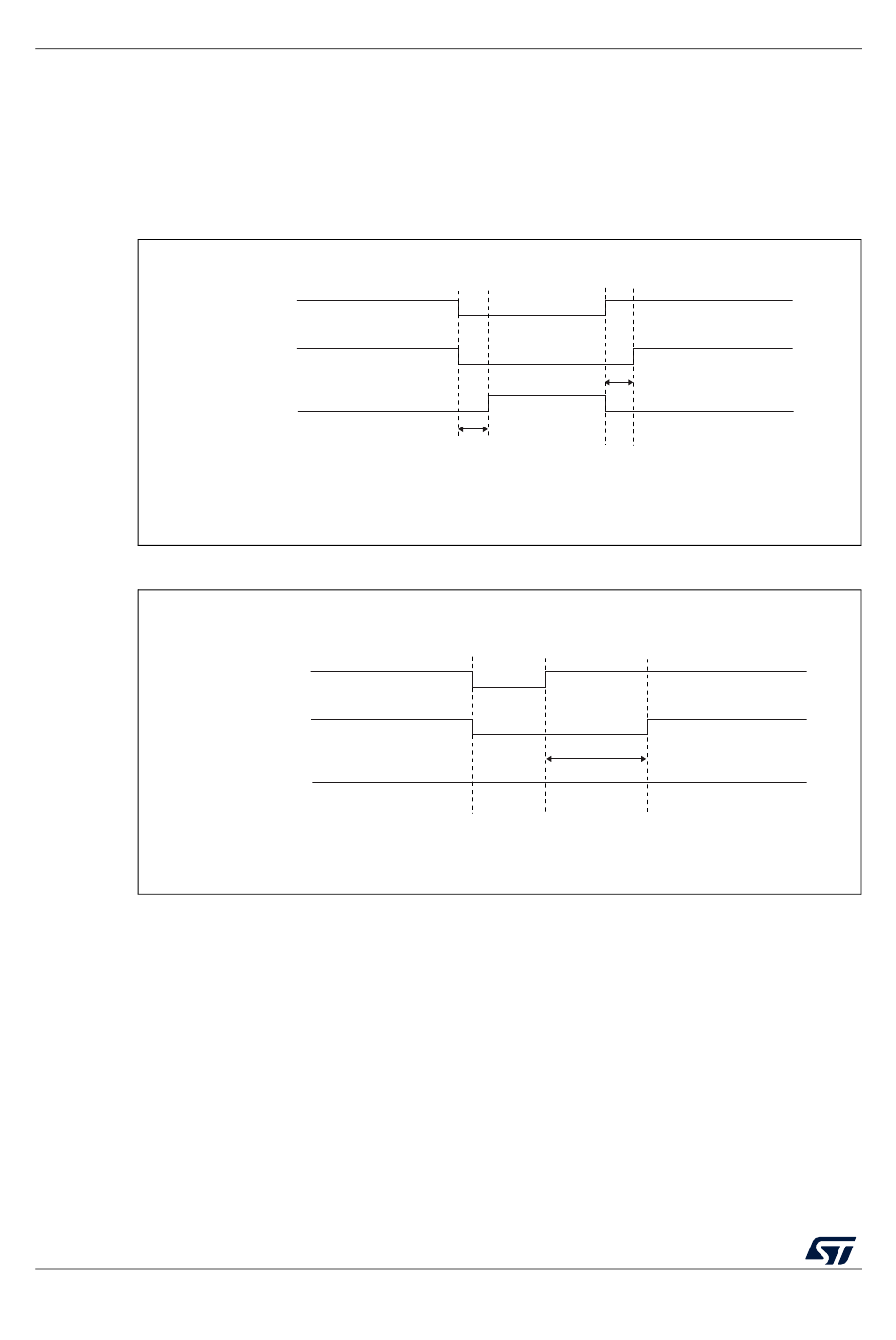

The following figures show the relationships between the output signals of the dead-time
generator and the reference signal OCxREF. (we suppose CCxP=0, CCxNP=0, MOE=1,
CCxE=1 and CCxNE=1 in these examples)
Figure 256. Dead-time waveforms with delay greater than the negative pulse.
912/1454
Figure 255. Complementary output with dead-time insertion.
OCxREF
OCx
OCxN
OCxREF
OCx
OCxN
delay
RM0453 Rev 2
RM0453
delay
MS31095V1
delay
MS31096V1
