7.2.1 HSE32 clock with trimming
The HSE32 32 MHz external oscillator has the advantage of producing a very accurate rate
on the main clock. The HSE32 furthermore provides on-chip trimming capability.
The high-speed external clock signal (HSE32) can be generated from the following clock
sources:
•
HSE32 external crystal
•
HSE32 external clock
–
–
The clock source must be placed as close as possible to the oscillator pins in order to
minimize output distortion and startup stabilization time.

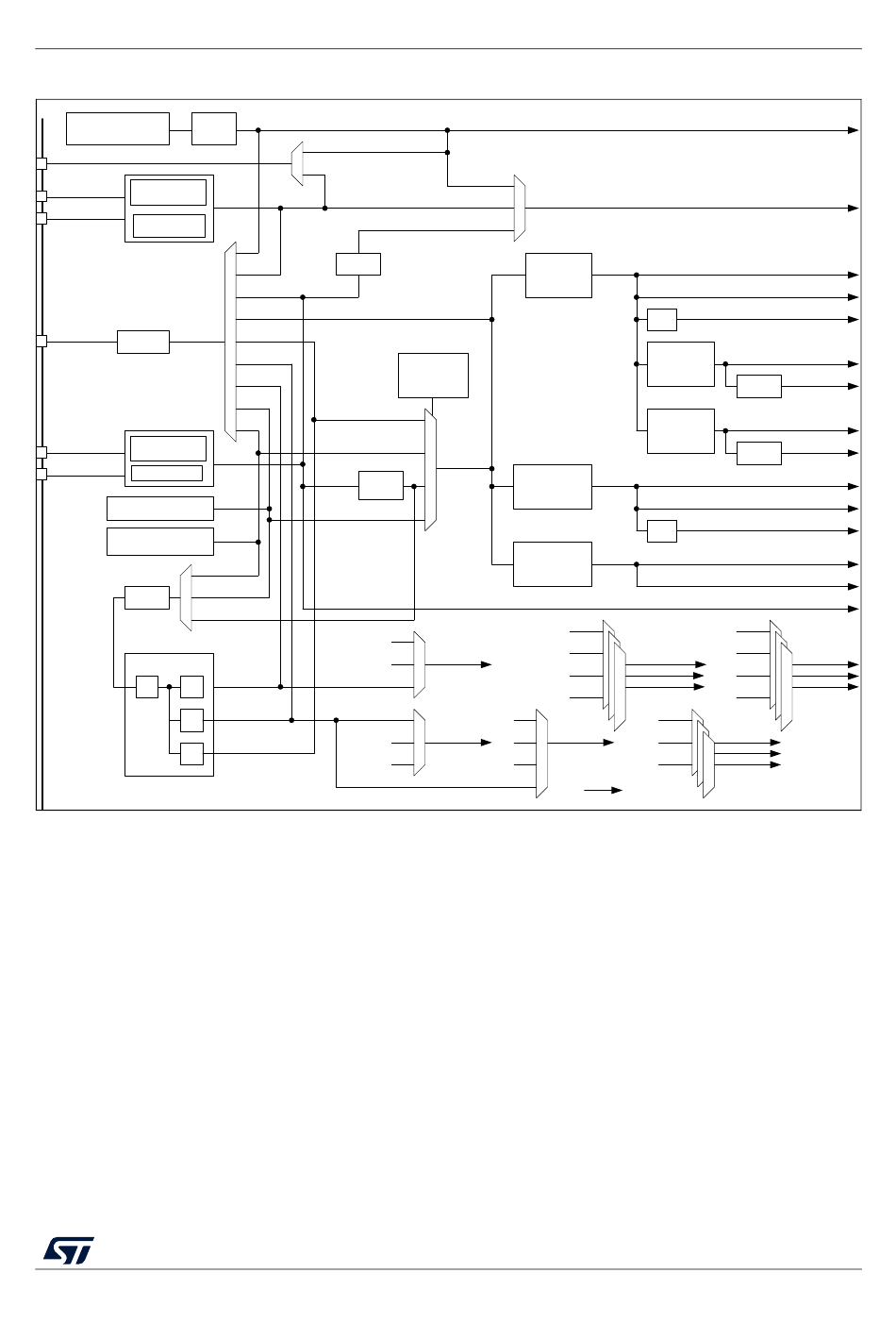

Figure 27. Clock tree
