Subaru Legacy 2002 Service Manual page 2015

Differentials

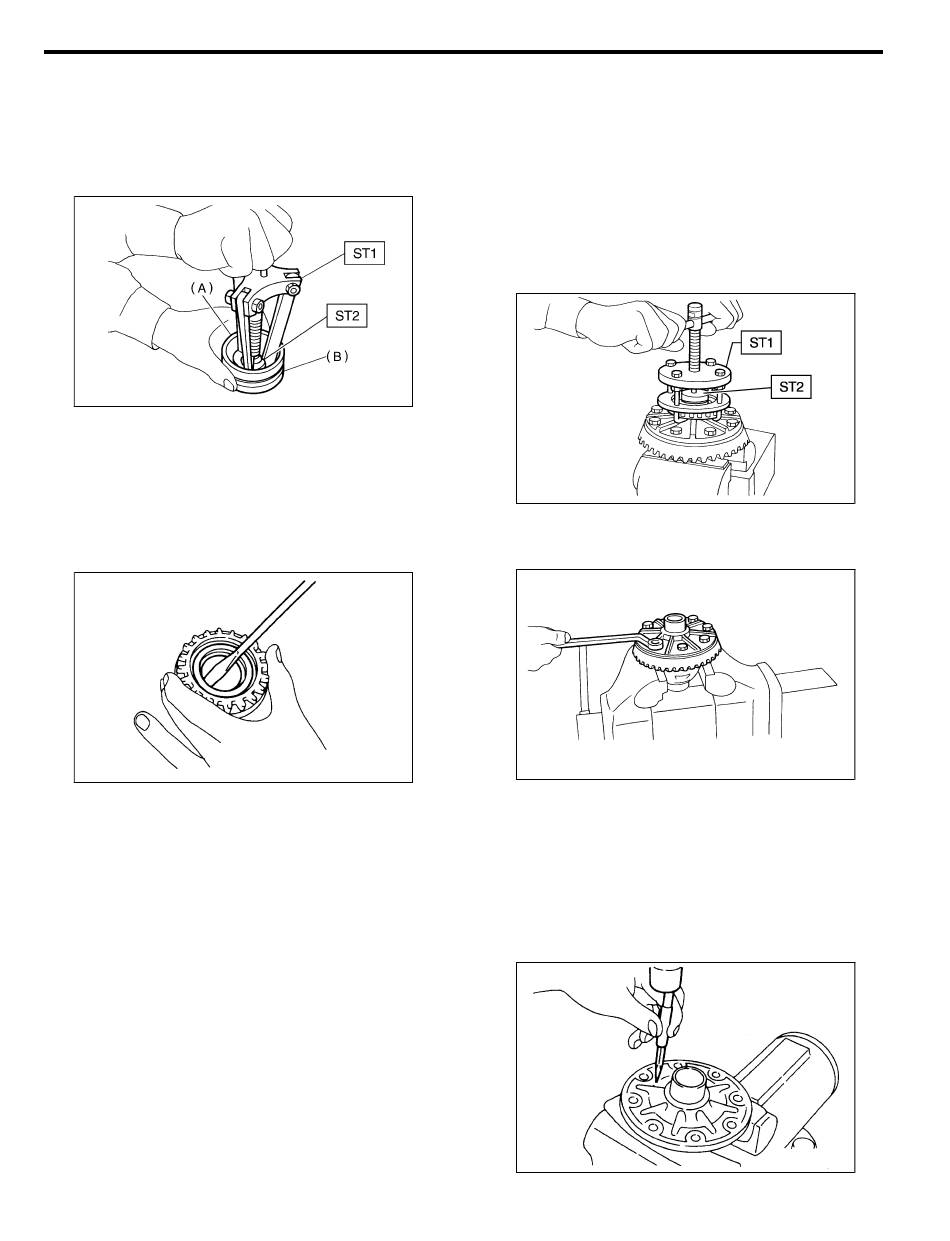

8) Remove bearing race from right and left holders
with ST1 and ST2.
ST1 499705401 BEARING OUTER RACE
PULLER ASSY
ST2 499705404 OUTER RACE PULLER
SEAT
(A) Bearing race
(B) Holder
9) Remove oil seal from right and left holders with
screwdriver.
NOTE:
Perform this operation only when changing oil seal.
REAR DIFFERENTIAL FOR VA-TYPE
S3M0508A
B3M0132
DI-46
10) Extract bearing cone with ST1 and ST2.
NOTE:
¼ Do not attempt to disassemble the parts unless
necessary.
¼ Set puller so that its claws catch the edge of the
bearing cone.
¼ Never mix up the right and left hand bearing
races and cones.
ST1 899524100 PULLER SET
ST2 399520105 SEAT
11) Remove crown gear by loosening crown gear
bolts.
12) Drive out pinion shaft lock pin from crown gear
side.
NOTE:
The lock pin is staked at the pin hole end on the
differential case; do not drive it out forcibly before
unstaking it.
ST 899904100 STRAIGHT PIN REMOVER
H3M1970A
S3M0509
B3M0133
