Subaru Legacy 2002 Service Manual page 2001

Differentials
Front and rear bearing preload
For new bearing:
19.6 — 28.4 N (2.0 — 2.9 kgf, 4.4 — 6.4 lb)
at companion flange bolt hole
For used bearing:
8.34 — 16.67 N (0.85 — 1.7 kgf, 1.87 — 3.75 lb)
at companion flange bolt hole
Adjusting preload for front and rear bearings
NOTE:
At this time, install a pinion height adjusting shim
which is temporarily selected or the same as that
used before. Measure and record the thickness.

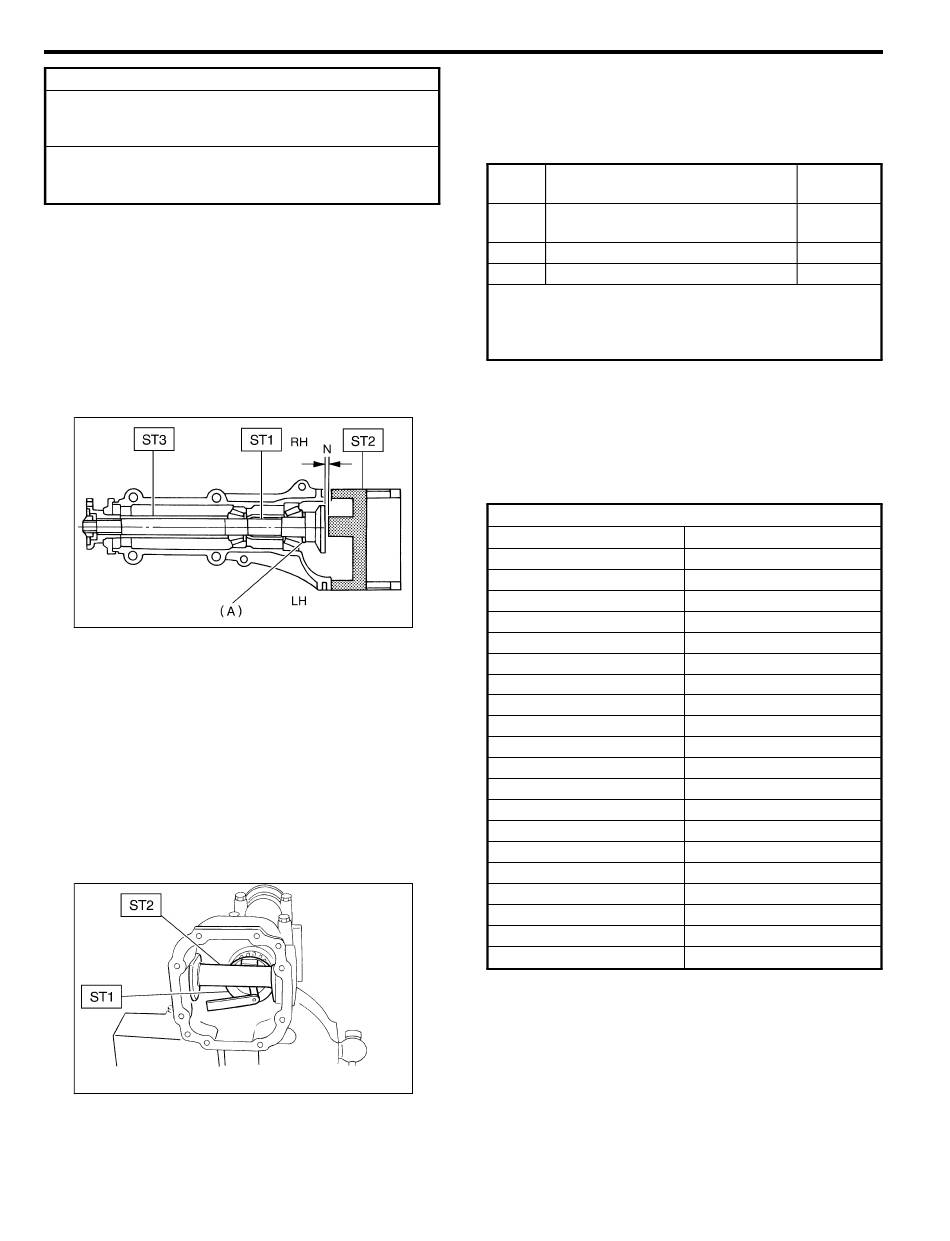

ST1 398507702 DUMMY SHAFT
ST2 398507701 DIFFERENTIAL CARRIER
GAUGE
ST3 398507703 DUMMY COLLAR
(A) Pinion height adjusting shim
(2) Measure the clearance N between the end
of ST2 and the end surface of ST1 by using a
thickness gauge.
NOTE:
Make sure there is no clearance between the case
and ST2.
ST1 398507702 DUMMY SHAFT
ST2 398507701 DIFFERENTIAL CARRIER
GAUGE
(3) Obtain the thickness of pinion height adjust-
ing shim to be inserted from the following
formula, and replace the temporarily installed
shim with this one.
REAR DIFFERENTIAL FOR T-TYPE
S3M0518B
H3M1309B
DI-32
T = To + N − (H x 0.01) − 0.20 mm (0.0079
in)
NOTE:
Use copies of this page.
T Thickness of shim temporarily
inserted mm (in)
To Thickness of pinion height adjusting
shim mm (in)
N Reading of thickness gauge mm (in)
H Figure marked on drive pinion head
Memo:
(Example of calculation)
To = 2.20 + 1.20 = 3.40 mm
N = 0.23 mm H = + 1,
T = 3.40 + 0.23 − 0.01 − 0.20 = 3.42
Result: Thickness = 3.42 mm
Therefore use the shim 383605200.
Pinion height adjusting shim
Part No.
383495200
383505200
383515200
383525200
383535200
383545200
383555200
383565200
383575200
383585200
383595200
383605200
383615200
383625200
383635200
383645200
383655200
383665200
383675200
383685200
Thickness mm (in)
3.09 (0.1217)
3.12 (0.1228)
3.15 (0.1240)
3.18 (0.1252)
3.21 (0.1264)
3.24 (0.1276)
3.27 (0.1287)
3.30 (0.1299)
3.33 (0.1311)
3.36 (0.1323)
3.39 (0.1335)
3.42 (0.1346)
3.45 (0.1358)
3.48 (0.1370)
3.51 (0.1382)
3.54 (0.1394)
3.57 (0.1406)
3.60 (0.1417)
3.63 (0.1429)
3.66 (0.1441)
