Brake

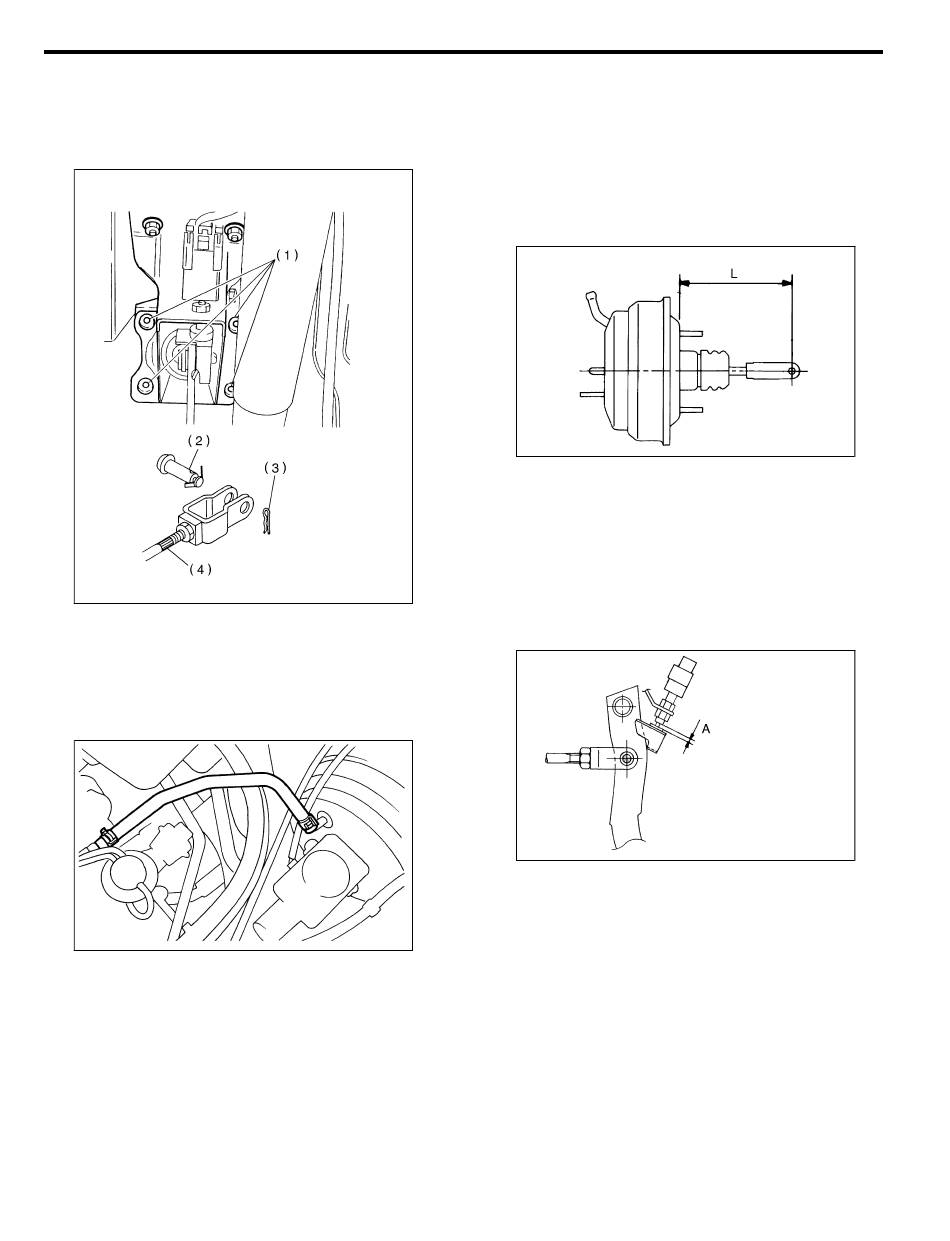

B: INSTALLATION
1) Mount brake booster in position.
2) Connect operating rod to brake pedal with cle-
vis pin and snap pin.
(1) Nuts
(2) Clevis pin
(3) Snap pin
(4) Operating rod
3) Connect vacuum hose to brake booster.
4) Mount master cylinder onto brake booster.
5) Connect brake pipes to master cylinder.
6) Connect electric connector for brake fluid level
indicator.
BRAKE BOOSTER
S405166A11
B4M0117C
S4M0125
BR-36
7) Adjust operating rod of brake booster.
Standard: L
LHD:
144.6 mm (5.69 in)
RHD:
173.2 mm (6.82 in)
If it is not in specified value, adjust it by adjusting
brake booster operating rod.
8) Measure the clearance between threaded end
of stop light switch and stopper.
If it is not in specified value, adjust it by adjusting
position of stop light switch.
CAUTION:
Be careful not to rotate stop light switch.
Stop light switch clearance: A
0.3 mm (0.012 in)
9) Apply grease to operating rod connecting pin to
prevent it from wearing.
10) Bleed air from brake system.
Tightening torque (Air bleeder screw):
8 N·m (0.8 kgf-m, 5.8 ft-lb)
11) Conduct road tests to ensure brakes do not
drag.
