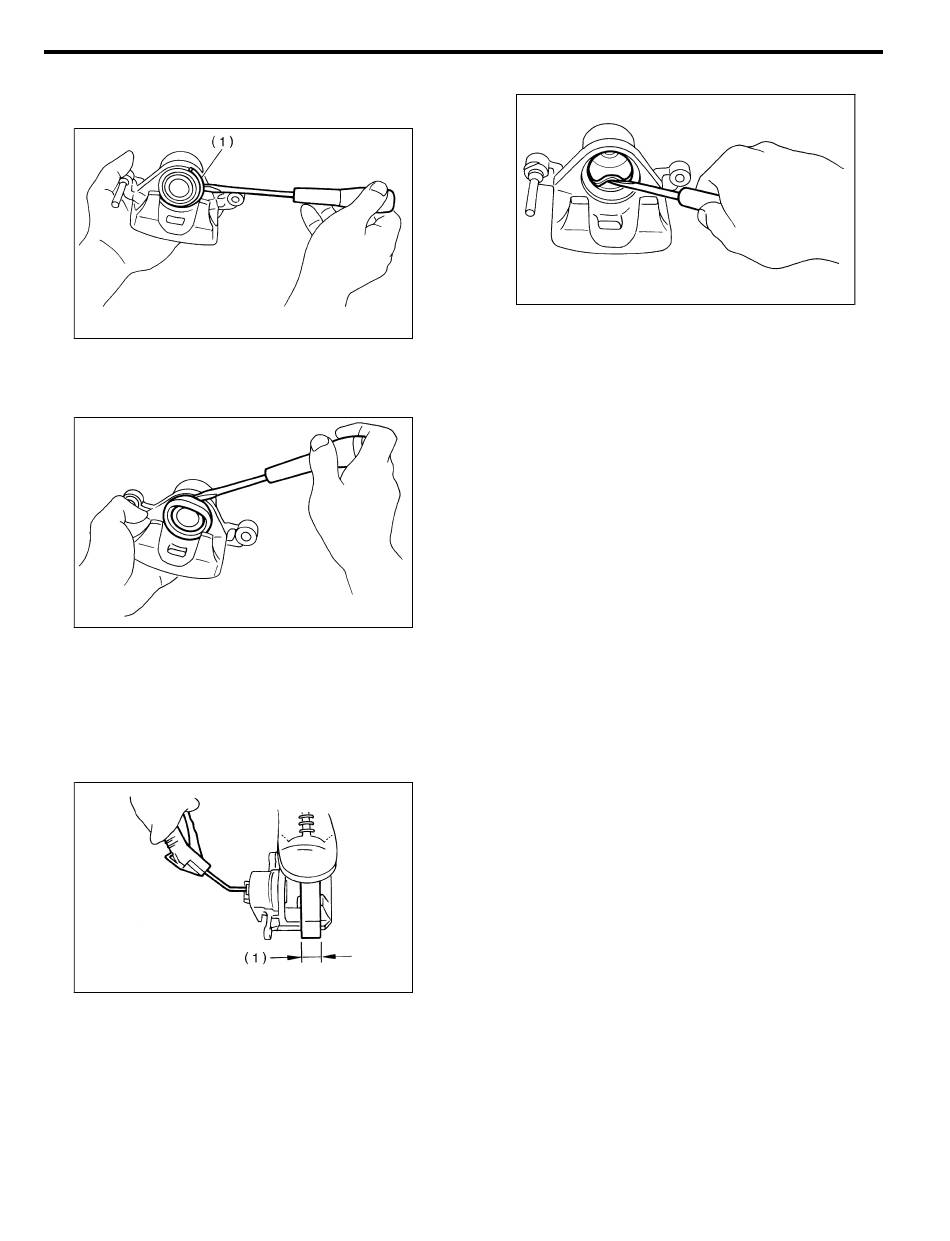

C: DISASSEMBLY

1) Remove the boot ring.

2) Remove the piston boot.

3) Gradually supply compressed air via inlet of

caliper body to force piston out.

¼ Place a wooden block as shown in Figure to

prevent damage to piston.

¼ Do not apply excessively high-pressure.

Place a 30 mm (1.18 in) wide wooden block here.

REAR DISC BRAKE ASSEMBLY

4) Remove piston seal from caliper body cylinder.

5) Remove lock pin sleeve and boot from caliper

6) Remove guide pin boot.
