Recording a Site Survey with Map

1.

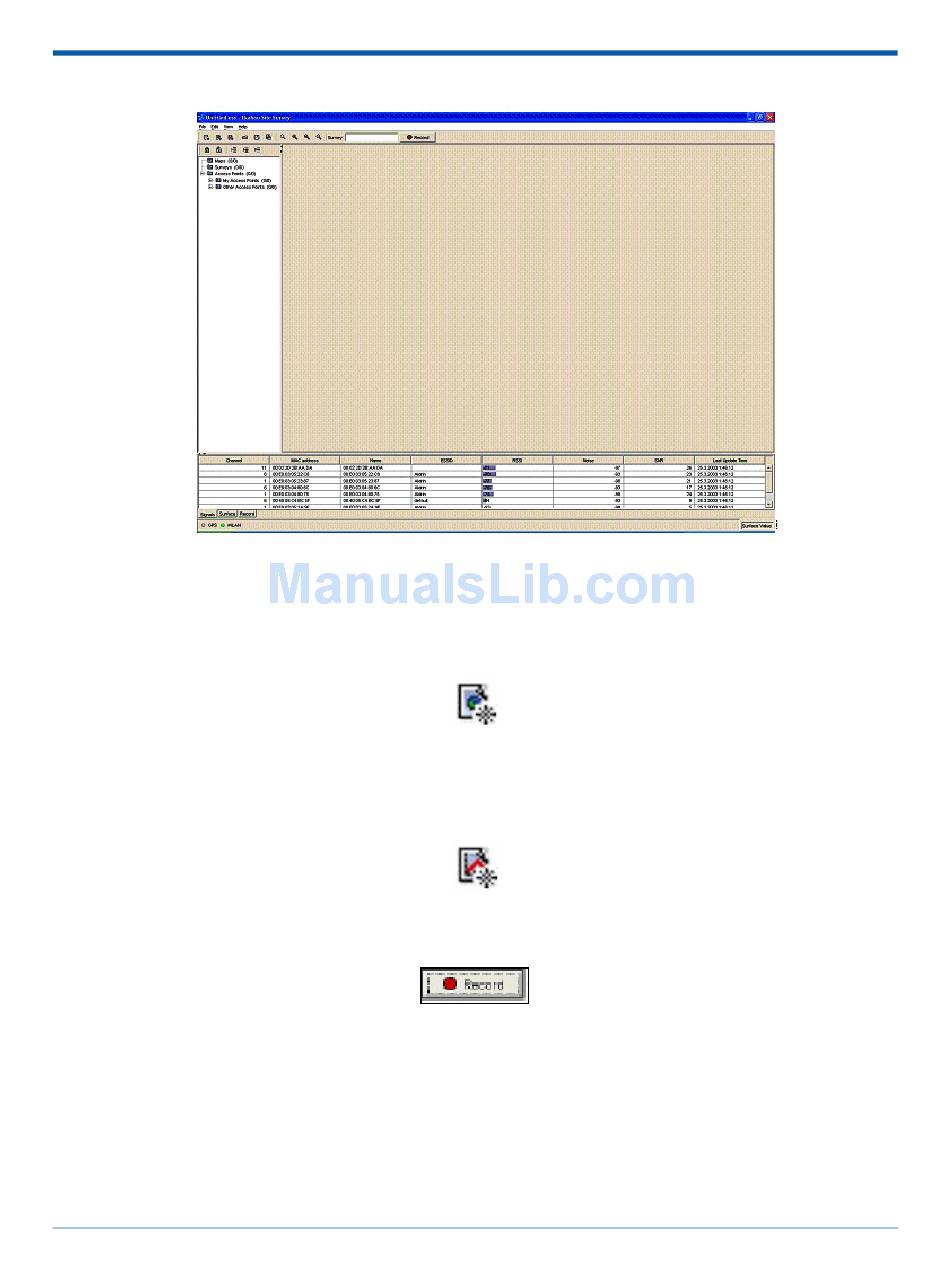

Add a new map image (BMP, PNG, or JPG) to the project by selecting File > New... > Map:
Each project can include any number of maps. Double-click a map image in the browser view to
open the map in the map view.
2.
Add a new site survey to the project by selecting File > New... > Survey:
3.
Click the Record button (button will change color):
to start recording network data to the survey, or press <CTRL+R>. If you want to take a
break, turn off data collection by clicking the Record button again.
4.
Take your laptop with you and start walking around the facility or area. Click on the map accu-
rately where you are (without stopping when clicking).
5.
Always click the map again when:
-
You change your speed, stop or start moving.
11/5/04
90-100831-300 Rev 2Alcatel OmniAccess Wireless Access Point Quick Installation Guide 18
Recording a Site Survey with Map
Recording Data with the Site Survey Tool
